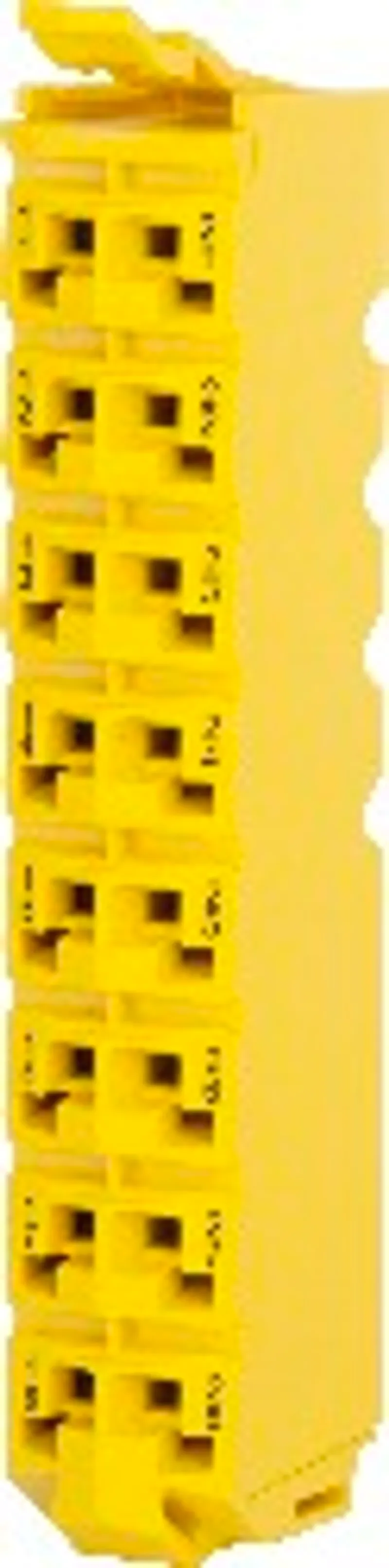

B&R X20TB5F

Tool-free wiring using push-in technology

MPN: X20TB5F
Category: Terminal blocks

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20TB5F?

Tool-free wiring using push-in technology

Simple wire release using a screwdriver

Labeling option for each terminal connection

Plain text labeling possible

Access for standard test probes

Customized coding possible

This terminal block is used to wire the X20 SafeIO modules with 16 connections.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck

Terminal block

Connection cross section – Single-wire	0.08 to 1.5 mm² / 28 to 16 AWG
Connection cross section – Fine-stranded wires	0.25 to 1.5 mm² / 24 to 16 AWG
Connection cross section – With wire end sleeve	0.25 to 0.75 mm² / 24 to 20 AWG
Distance between contacts – Left - Right	4.2 mm
Distance between contacts – Above - Below	8.25 mm
Number of pins	16, safety-keyed
Type of terminal block	Push-in terminal
Push-in force per contact	Typ. 10 N
Cable type	Only copper wires (no aluminum wires!)
Wire stripping length	7 to 9 mm

Electrical properties

Nominal voltage	24 VDC
Max. voltage	50 VDC
Nominal current	2 A / contact (note: The respective limit data of the SafeIO modules must be taken into account!)
Contact resistance	≤5 mΩ

Ambient conditions

Temperature – Operation	Corresponds to the X20 module used
Relative humidity – Operation	Corresponds to the X20 module used
