Terminal blocks Parts
Compare Terminal blocks
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Connection cross section – Single-wire | Connection cross section – Fine-stranded wires | Connection cross section – With wire end sleeve | Distance between contacts – Above - Below | Number of pins |
|---|---|---|---|---|---|

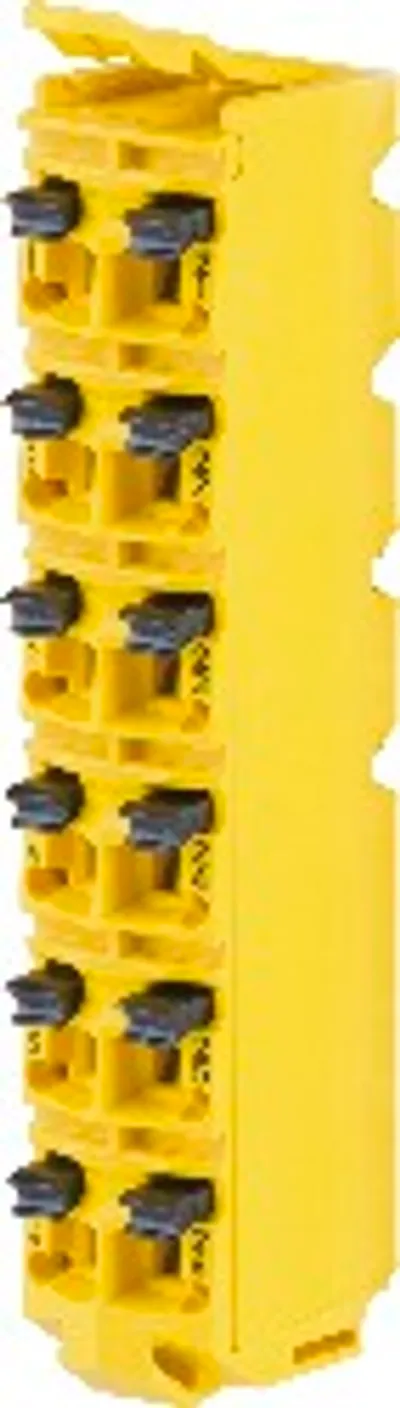

| X20TB52 | 0.08 to 2.5 mm² / 28 to 14 AWG | 0.25 to 2.5 mm² / 24 to 14 AWG | 0.25 to 1.5 mm² / 24 to 16 AWG | 10.96 mm | 12, safety-keyed |

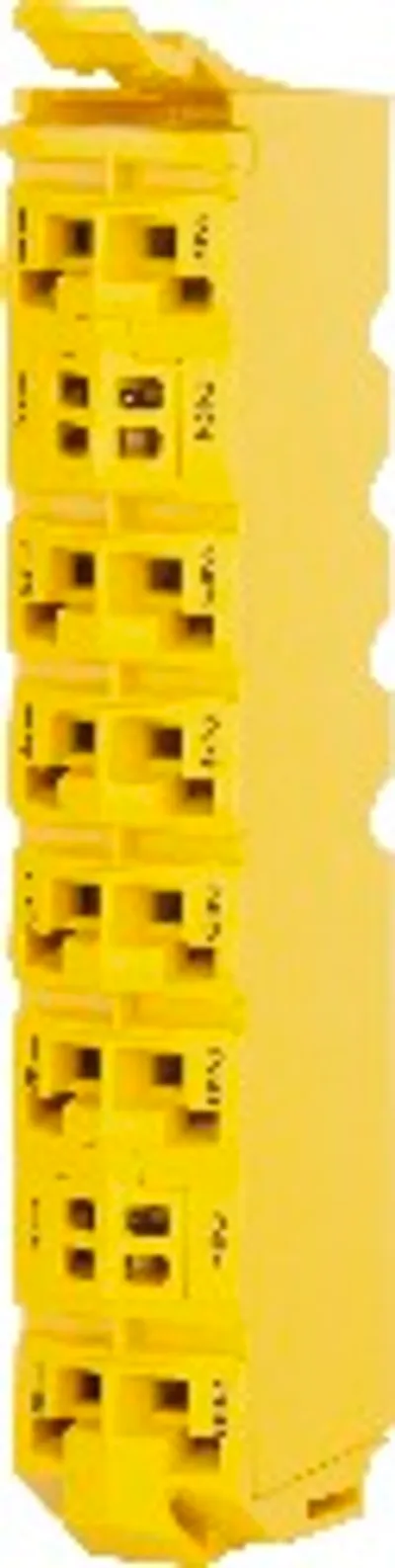

| X20TB5E | 0.08 to 1.5 mm² / 28 to 16 AWG | 0.25 to 1.5 mm² / 24 to 16 AWG | 0.25 to 0.75 mm² / 24 to 20 AWG | 8.25 mm | 16, safety-keyed |

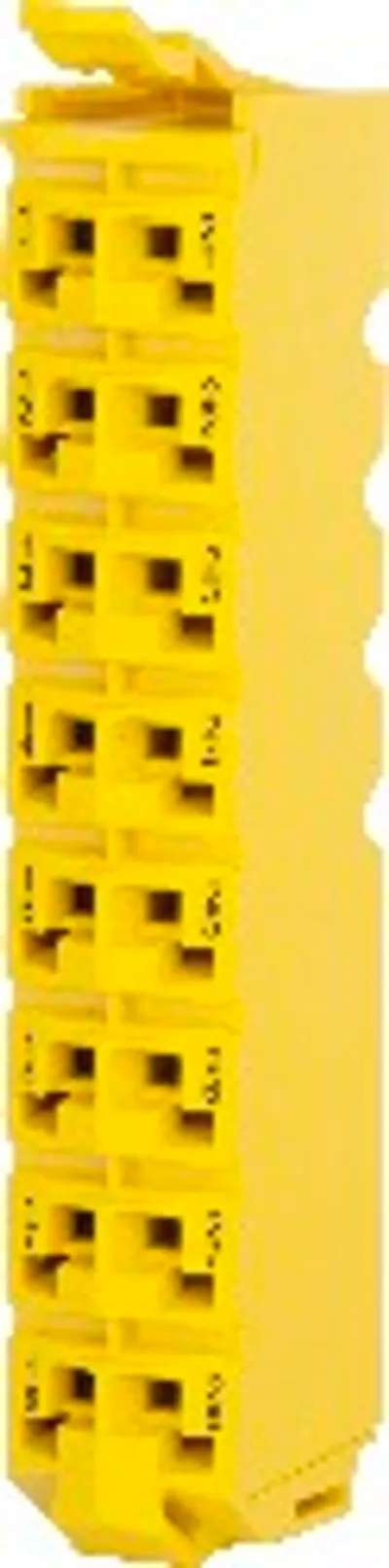

| X20TB5F | 0.08 to 1.5 mm² / 28 to 16 AWG | 0.25 to 1.5 mm² / 24 to 16 AWG | 0.25 to 0.75 mm² / 24 to 20 AWG | 8.25 mm | 16, safety-keyed |

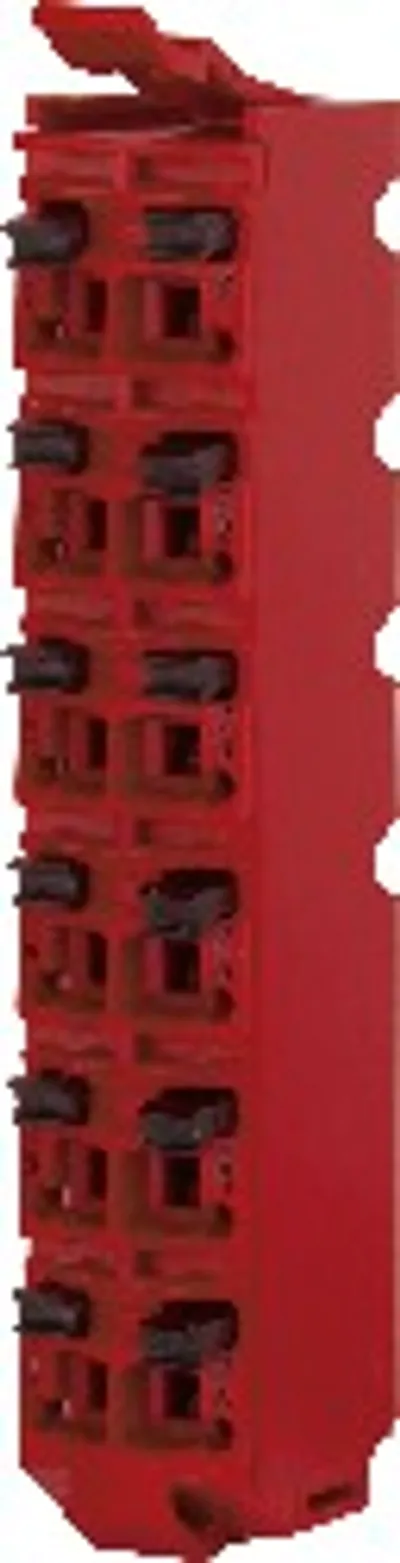

| X20TB72 | 0.08 to 2.5 mm² / 28 to 14 AWG | 0.25 to 2.5 mm² / 24 to 14 AWG | 0.25 to 1.5 mm² / 24 to 16 AWG | 10.96 mm | 12, safety-keyed |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
