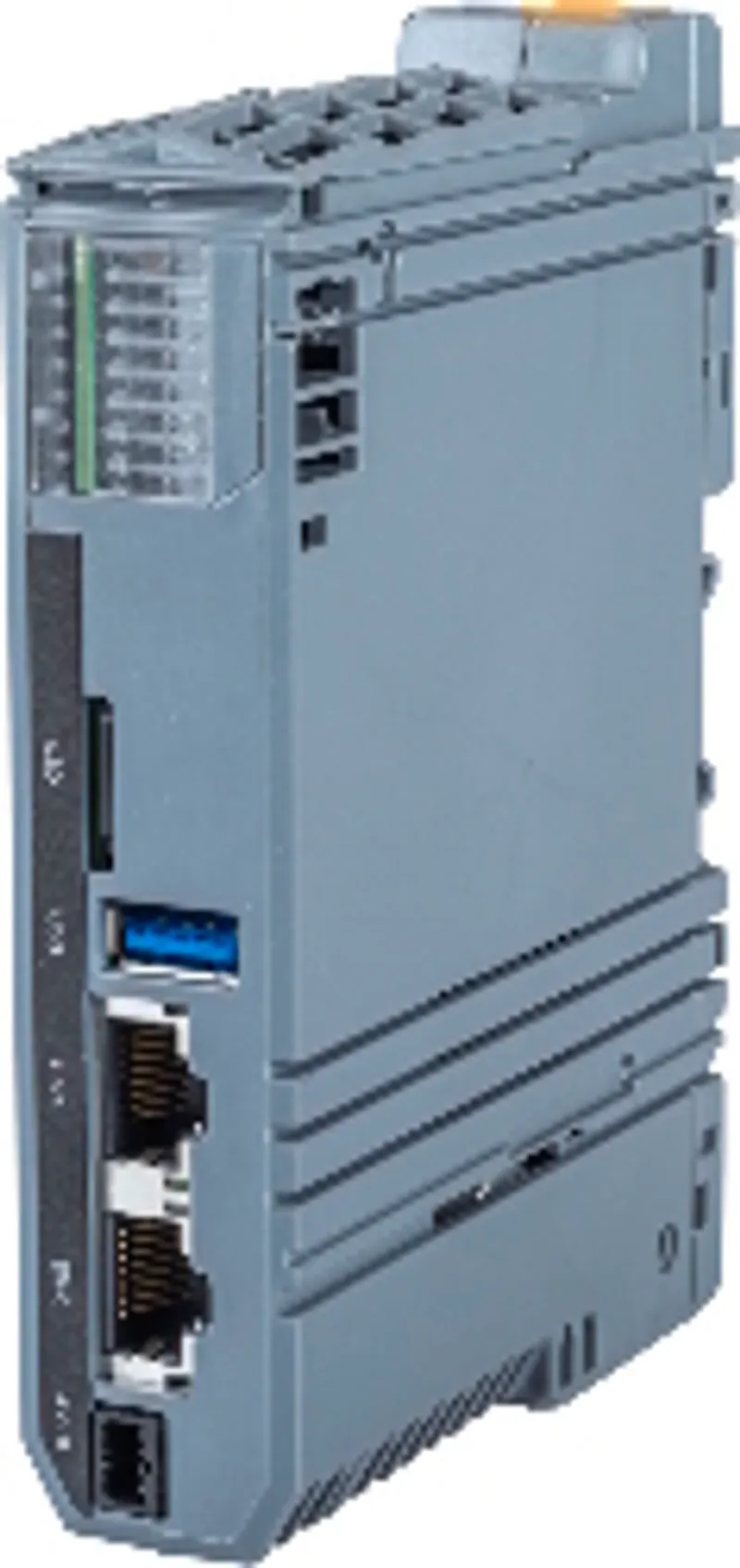

B&R X20EDS410
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | X20 Edge |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 165 kg |
Shipping & availability
When can X20EDS410 be shipped?
X20EDS410 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20EDS410 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20EDS410 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20EDS410, subject to availability and destination.
B&R's X20 Edge connects machine control with enterprise systems for enhanced production insight. Equipped with an ARM-based CPU and Linux OS, it provides flexible programming possibilities like Python and a containerized environment for deploying AI, machine learning and IIoT applications. Dual Ethernet ports open up communication possibilities like OPC UA and cloud connectivity, creating a seamless data flow between machines and IT infrastructure. Ideal as a smart IIoT gateway, the X20 Edge offers machine builders simplified integration of digital services, while end users gain access to advanced analytics – all in a compact, industrial-grade device.
Specifications
Specifications
| Interfaces | 1x USB 3.0, 2x Gigabit Ethernet |
| System module | Edge controller |
| B&R ID code | 0x337F |
| Cooling | Fanless |
| Status indicators | Module status, network status |
| Module status | Yes, using LED status indicator |
| Network status | Yes, using LED status indicator |
| Power consumption | 9.6 W |
| Input voltage | 24 VDC -20% / +25% SELV/PELV (nominal voltage: 24 VDC) |
| Input current | Max. 0.4 A |
| Fuse | Integrated, cannot be replaced |
| Reverse polarity protection | Yes |
| Software | B&R-specific Debian image |
| Real-time clock | Nonvolatile, ±20 ppm at 25°C |
| FPU | Yes |
| Type | USB 2.0 / 3.0 |
| Clock frequency | 1.6 GHz |
| Number of cores | 4 |
| Architecture | 64-bit |
| Data code | 32 kB |
| Program code | 32 kB |
| L2 cache | 512 kB |
| RAM | 4 GB LPDDR4 SDRAM |
| Data retention | 10 years (when new) to 1 year (end of service life) |
| Capacity | 64 GB |
| Lifetime monitoring | Yes |
| MTBF | >3,000,000 hours (at 25°C) |
| Writable data amount | 166 TB |
| Sequential reading | 100 MB/s |
| Sequential writing | 45 MB/s |
| Variant | Type A |
| Line length | Max. 100 m between 2 stations (segment length) |
| Transfer rate | 100 Mbit/s and 1 Gbit/s |
| Physical layer | 100BASE-TX/1000BASE-T |
| Half-duplex | Yes |
| Full-duplex | Yes |
| Autonegotiation | Yes |
| Auto-MDI/MDIX | Yes |
| Electrical isolation | Ethernet isolated from each other and from power supply USB for power supply not isolated |
| Horizontal | Yes |
| Vertical | No |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.6°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
| Horizontal mounting orientation | -25 to 60°C |
| Vertical mounting orientation | Not permitted |
| Derating | - |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Operation | 5 to 95%, non-condensing |
| Width | 27.5 mm |
| Height | 124 mm |
| Depth | 92 mm |
| Weight | 165 g |
