B&R ETAL410.1012-1

ETA light system motion control / stepper motors modern…

MPN: ETAL410.1012-1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

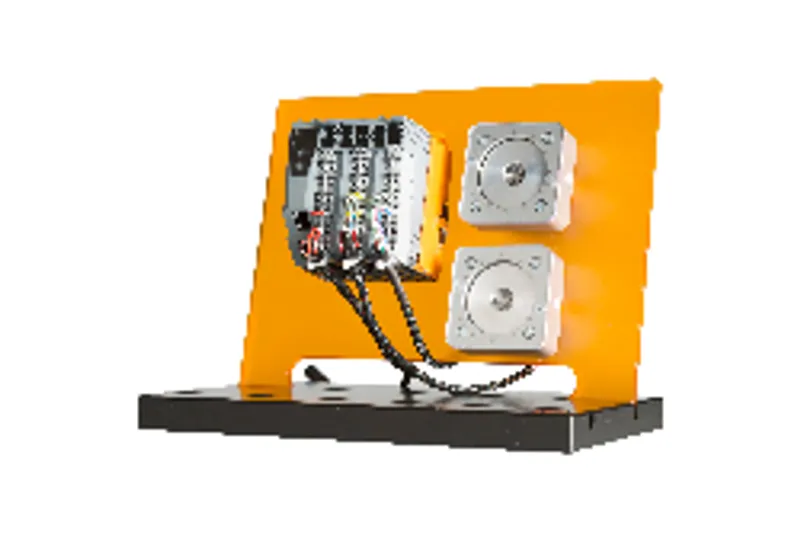

What is the B&R ETAL410.1012-1?

ETA light system motion control / stepper motors modern stepper motor control via X20 modules 1 stepper motor with incremental encoder 1 stepper motor without encoder single-axis positioning applications, drive coupling with electronic gearboxes, drive coupling via cam plates,

Specifications

Input voltage	24 VDC -15% / +20%
B&R ID code	1131
Reverse polarity protection	Yes
CE	Yes
Connection	Low voltage female connector 5.5 mm / 2.1 mm (0TP650.07)
Width	300 mm
Height	230 mm
Depth	135 mm
Content of delivery	This product contains the following materials: X20BC0083 X20PS9400 X20SM1436 80MPD1.300S000-01 80MPD1.300S014-01 For details and additional technical data, see the data sheets for the individual products.
