B&R 8I66T201100.00-000

Base device for ACOPOSinverter P66 and P64new

MPN: 8I66T201100.00-000
Category: ACOPOSinverter P66 - 3-phase 200 to 240 V

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare B&R parts? We buy surplus →

What is the B&R 8I66T201100.00-000?

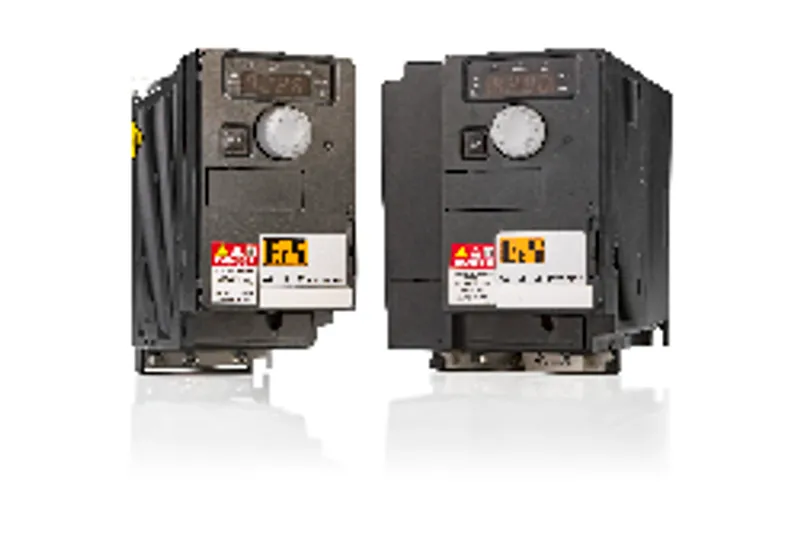

Base device for ACOPOSinverter P66 and P64new, 3 x 200 to 240 V, 11 kW, integrated brake chopper

Order number - ACOPOSinverter P66:

8I66T201100.0P-000: Inverter with POWERLINK communication card

8I66T201100.0X-000: Inverter with X2X Link communication card

8I66T201100.0C-000: Inverter with integrated CANopen interface

Order number - ACOPOSinverter P64new:

8I64T201100.0X-000: Inverter with X2X Link communication card

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E225616; Power conversion equipment

Motor power

Specified on nameplate

11 kW (15 HP)

Mains connection

Mains current – At 200 VAC	60.1 A (note: Typical value for 4-pin motor and a max. clock frequency of 4 kHz, without mains choke for the max. assumed short circuit current (lsc).)
Mains current – At 240 VAC	50.7 A (note: Typical value for 4-pin motor and a max. clock frequency of 4 kHz, without mains choke for the max. assumed short circuit current (lsc).)
Mains input voltage	3x 200 VAC -15% to 240 VAC +10%
Frequency	50 to 60 Hz ±5%
Apparent power (at 240 VAC)	21.1 kVA
Max. assumed short-circuit current (Isc); (short-circuit current at connection point)	22 kA (note: With mains choke max. Isc 22 kA for 200/240 V.)
Inrush current	66.7 A (note: Peak current when switching on for maximum voltage (240 V +10% or 500 V +10% or 600 V +10%))
Power dissipation at nominal load and nominal clock frequency	528 W
Integrated EMC filter	No

Line-conducted and radiated emissions

With add-on filter – Motor cable length per IEC/EN 61800-3 ; Cat. C1 environment 1 (public power network)	1 m
With add-on filter – Motor cable length per IEC/EN 61800-3 ; Cat. C2 environment 1 (public power network)	5 m
With add-on filter – Motor cable length per IEC/EN 61800-3 ; Cat. C3 environment 2 (industrial power system)	5 m

Motor connection

Derating of continuous output current depending on ambient temperature – At nominal clock frequency (4 kHz)	No derating (up to 50°C)
Derating of continuous output current depending on ambient temperature – Other clock frequencies	The derating curves are included in the installation instructions, which can be downloaded from the website (www.br-automation.com).
Derating of continuous output current depending on installation elevation – Starting at 1000 m above sea level	1%, per 100 m
Clock frequency – Min.	2 kHz
Clock frequency – Max.	16 kHz
Braking torque – With braking resistor	Up to 170% of the rated motor torque
Max. motor cable length – Shielded cable	50 m
Max. motor cable length – Non-shielded cable	100 m
Motor control profiles – Induction motor	Sensorless vector control: ; 1. Voltage controlled with constant torque → standard mode; 2. Voltage controlled with variable torque → energy saving mode e.g. for fans and pumps; Sensorless slip control: ; 1. With V/f characteristic curve for constant torque → standard mode; 2. With V/f characteristic curve for constant torque (up to 6 f-ranges) → Custom mode for special applications; 3. With V/f characteristic curve for quadratically increasing torque → Energy-saving mode, e.g. for fans and pumps
Motor control profiles – Synchronous motor	Sensorless vector control: ; 1. Voltage controlled with constant torque → standard mode
Nominal output current	54 A (note: These values apply at a nominal clock frequency of 4 kHz during continuous operation. The clock frequency can be set from 2 to 16 kHz. Above 4 kHz, reduce the nominal drive current. The nominal motor current is not permitted to exceed this value.)
Max. transient current for 60 s	81 A (note: The inverter is designed to operate for a maximum of 60 seconds at 150% nominal current.)
Output frequency range	0.1 to 599 Hz
Nominal clock frequency	4 kHz
Main protective functions of inverter	Thermal protection against power stage overheating; Protection against short circuits between motor phases, overcurrent between output phases and ground, overvoltages on the DC bus, exceeding the speed limit. ; Safety function for: Overvoltage and undervoltage of the mains supply, mains phase failure with 3-phase power supply

Brake chopper

Integrated dynamic brake transistors	Yes
Min. resistance value (external)	5 Ω

24 VDC power supply

Input voltage	24 VDC (-15%/+20%)
Current	Max. 1.1 A

Available internal power supplies

Output voltage 24 VDC – Max. output current at 24 VDC	100 mA
Output voltage 10 VDC – Max. output current at 10 VDC	10 mA
Output voltage 24 VDC	24 VDC (-15%/+20%)
Output voltage 10 VDC	10 VDC (-0%/+10%)

Interfaces

POWERLINK – Type

Type 3Communication / POWERLINK / General information / Hardware - CN" in Automation Help."> (note: For additional information, see section)

Digital inputs

Electrical isolation – Input - ACOPOSinverter	Yes
Electrical isolation – Input - Input	No
Digital input 5 – Max. input frequency	20 kHz
Quantity	6 (note: 1 logic input can be programmed as a 20 kbps pulse input. 1 logic input is configurable as an input for a PTC sensor using a switch (SW2). Trigger resistance 3 kΩ, reset value 1.8 kΩ, short-circuit proof <50 Ω)
Nominal voltage	24 VDC (max. 30 VDC)
Input circuit	Source or sink
Switching threshold	Sink: >19 V (position 0), <13 V (position 1); Source: <5 V (position 0), >11 V (position 1)
Sampling time	8 ms ±0.7 ms

Safe input - STO (Safe Torque Off)

Input impedance – Current consumption	16 mA
Electrical isolation – Input - ACOPOSinverter	Yes
Electrical isolation – Input - Input	No
Quantity	1
Nominal voltage	24 VDC (max. 30 VDC)
Input impedance	1.5 kΩ

Analog inputs

Electrical isolation – Input - Input	No
Electrical isolation – Input - ACOPOSinverter	Yes
Input – Voltage	AI1: 0 to 10 VDC; AI2: 0 ±10 VDC, max. 30 VDC
Input – Current	0 to 20 mA (or 4 to 20 mA)
Input impedance – Voltage	30 kΩ
Input impedance – Current	250 Ω
Quantity	3
Nonlinearity	±0.2%, max. ±0.5%
Basic accuracy	At 25°C: ±0.5%; At -10 to 60°C: ±0.7%
Resolution	10-bit
Sampling time	2 ms

Digital outputs

Quantity	1
Nominal voltage	24 VDC -15%/+20%
Max. voltage	30 VDC
Output circuit	Source or sink
Sampling time	2 ms
Max. current	100 mA

Relay outputs

Execution – Relay 1	1 changeover contact
Execution – Relay 2	1 normally open contact
Electrical isolation – Output - ACOPOSinverter	Yes
Electrical isolation – Output - Output	No
Quantity	2
Nominal voltage	30 VDC / 250 VAC
Switching current range	Min. switching current: 5 mA at 24 VDC; Max. switching current:; R1 at cos φ = 1: 3 A at 250 VAC / 4 A at 30 VDC; R2 at cos φ = 1: 5 A; R1 and R2 at cos φ = 0.4: 2 A
Response time (max.)	2 ms

Analog outputs

Electrical isolation – Output - ACOPOSinverter	Yes
Electrical isolation – Output - Output	No
Max. load impedance – Voltage	470 Ω
Max. load impedance – Current	800 Ω
Quantity	1
Output	0 to 10 V or 0 to 20 mA
Nonlinearity	±0.3%
Basic accuracy	At 25°C: ±1%; At -10 to 60°C: ±2%
Update time	2 ms
Resolution	10-bit

Electrical properties

Energy efficiency (IE classification) – Power dissipation relative to continuous apparent power

IE2 (10, 25): 0.8% (3x 200 VAC), 0.7% (3x 240 VAC); IE2 (50, 25): 0.7% (3x 200 VAC), 0.6% (3x 240 VAC); IE2 (10, 50): 1.1% (3x 200 VAC), 1% (3x 240 VAC); IE2 (50, 50): 1.1% (3x 200 VAC), 0.9% (3x 240 VAC); IE2 (90, 50): 1.2% (3x 200 VAC), 1% (3x 240 VAC); IE2 (10, 100): 2.1% (3x 200 VAC), 1.9% (3x 240 VAC); IE2 (50, 100): 2% (3x 200 VAC), 1.7% (3x 240 VAC); IE2 (90, 100): 2.4% (3x 200 VAC), 2% (3x 240 VAC)

Energy efficiency (IE classification) – Nominal losses in standby mode

9 W (3x 200 VAC), 11 W (3x 240 VAC)

Operating conditions

Degree of protection per EN 61800-5-1	IP20
Relative humidity per IEC 60068-2-3	5 to 95%, non-condensing; No dripping water
Maximum installation elevation	≤1000 m without derating; 1000 to 3000 m with Derating (note: Over 1000 m, load reduced by 1% per 100 m.)
Max. pollution degree per IEC/EN 61800-5-1	2 (non-conductive pollution)
Ambient conditions per IEC 60721-3-3	Class 3C3 and 3S2
Operating position	Vertical mounting orientation ±10°

Ambient conditions

Temperature – Operation	-10 to 50°C without derating; 50 to 60°C with derating
Temperature – Storage	-25 to 70°C
Max. vibration resistance	1 g n 13 to 200 Hz EN/IEC 60068-2-6; 1.5 mm peak to peak 2 to 13 Hz EN/IEC 60068-2-6

Mechanical properties

Dimensions – Width	180 mm
Dimensions – Height	404 mm
Dimensions – Height without shield plate	330 mm
Dimensions – Depth	198 mm
Weight	6.8 kg

Accessories

Optional accessories (22)

8I0XD304.310-1	Cable and adapters — RJ45 cable, 10 m, for remote use of the display for the ACOPOSinverter.
8I0XD304.305-1	Cable and adapters — RJ45 cable, 5 m, for remote use of the display for the ACOPOSinverter.
8I0XD304.303-1	Cable and adapters — RJ45 cable, 3 m, for remote use of the display for the ACOPOSinverter.
8I0XD304.301-1	Cable and adapters — RJ45 cable, 1 m, for remote use of the display for the ACOPOSinverter.
8I0XC001.003-1	Cable and adapters — USB adapter cable, USB to Modbus, for ACOPOSinverter.
8I0XT001.000-1	Cable and adapters (CANopen) — Terminating resistor 120 Ω, RJ45, for integrated CANopen interface of the ACOPOSinverter.
8I0CA001.000-1	Cable and adapters (CANopen) — Y-cable, RJ45, daisy chain connection ≤0.3 m, for integrated CANopen interface of the ACOPOSinverter.
8I0XF074.040-1	Fans (spare part) — ACPi P66 fan 3-ph. 200…240 VAC: Power output class: 11 - 15 kW 3-ph. 380…500 VAC: Power output class: 11 - 15 kW 3-ph. 525…600 VAC: Power o…
8I0XD305.300-1	Graphic display — Female to female adapter, RJ45, for graphics display of the ACOPOSinverter.
8I0XD303.300-1	Graphic display — Front cover for installation kit, IP65 protection, for graphic display of the ACOPOSinverter.
8I0XD302.300-1	Graphic display — Installation kit, IP54 protection, for graphic display of the ACOPOSinverter.
8I0XD301.300-1	Graphic display — Graphics display for ACOPOSinverter, 240 x 160 pixels, 8 lines, backlight, function keys, navigation key, IP54 protection.
8I0FT083.200-1	Optional EMC filters — 83 A EMC filter for ACOPOSinverter X64 (3-phase 200-240 V, 11-15 kW).
8I0XE066.405-1	Optional EMC kit — ACPi P66 EMC kit for size E 3ph. 200…240 VAC: Power output class: 11 - 15 kW 3ph. 380…500 VAC: Power output class: 11 - 15 kW 3ph. 525…600…
8I0BR010.000-1	Optional braking resistors — Braking resistor ohmic value: 10 Ω continuous braking power: 1.00 kW degree of protection (IP): IP20
8I0CT060.000-1	Optional line chokes — Mains choke 3-phase, 60 A, 50/60 Hz for ACOPOSinverter
8TB2108.2210-00	Terminal blocks — 8-pin push-in terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8TB2108.2010-00	Terminal blocks — 8-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8TB2104.2210-00	Terminal blocks — 4-pin push-in terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8TB2104.2010-00	Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
X67CA0X99.5000	X2X Link Cable — Cable for custom assembly, 500 m
X67CA0X99.1000	X2X Link Cable — Cable for custom assembly, 100 m
