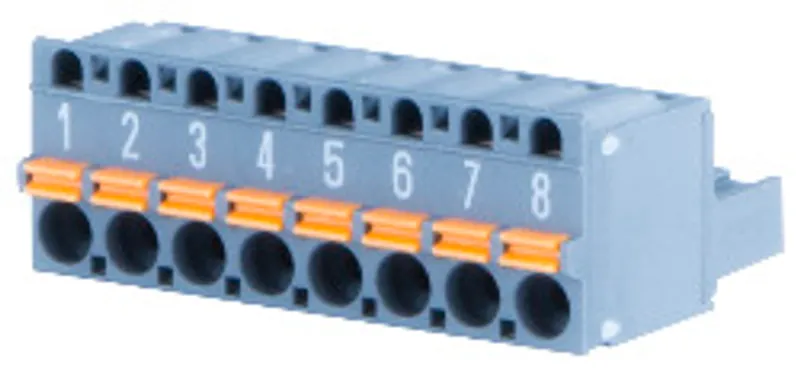

B&R 8TB2108.2210-00
8-pin push-in terminal block, 1-row, pitch: 5.08 mm
- MPN
- 8TB2108.2210-00
- Category
- Terminal blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8TB2108.2210-00?
8-pin push-in terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
Specifications
Terminal block
| Connection cross section – AWG wire | 26 to 12 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.25 to 2.5 mm² |
| Connection cross section – Single-wire | 0.2 to 2.5 mm² |
| Connection cross section – Fine-stranded wires | 0.2 to 2.5 mm² |
| Connection cross section – With wire end sleeve | 0.25 to 2.5 mm² |
| Note | Label 1: Numbered consecutively; Coding 0: None; 1-row |
| Number of pins | 8 |
| Type of terminal block | Push-in spring connector |
| Cable type | Only copper wires (no aluminum wires!) |
| Coding | 0 |
| Pitch | 5.08 mm |
| Wire stripping length | 10 mm |
| Tension | >10 N (0.2 mm²); >50 N (2.5 mm²) |
Electrical properties
| Nominal voltage | 250 V (IEC) / 300 V (UL) |
| Nominal current | 12 A (IEC) / 10 A (UL) |
Mechanical properties
| Dimensions – Width | 41.3 mm |
| Dimensions – Height | 15 mm |
| Dimensions – Depth | 25.4 mm |
| Weight | 13.1 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
8TB2108.2210-00: frequently asked questions
When can 8TB2108.2210-00 be shipped?
8TB2108.2210-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8TB2108.2210-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8TB2108.2210-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8TB2108.2210-00, subject to availability and destination.
