B&R 8FZAS1.2A.A100-1
SuperTrak shuttle, 2 magnets with IR identification…
- MPN
- 8FZAS1.2A.A100-1
- Category
- Shuttles
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8FZAS1.2A.A100-1?

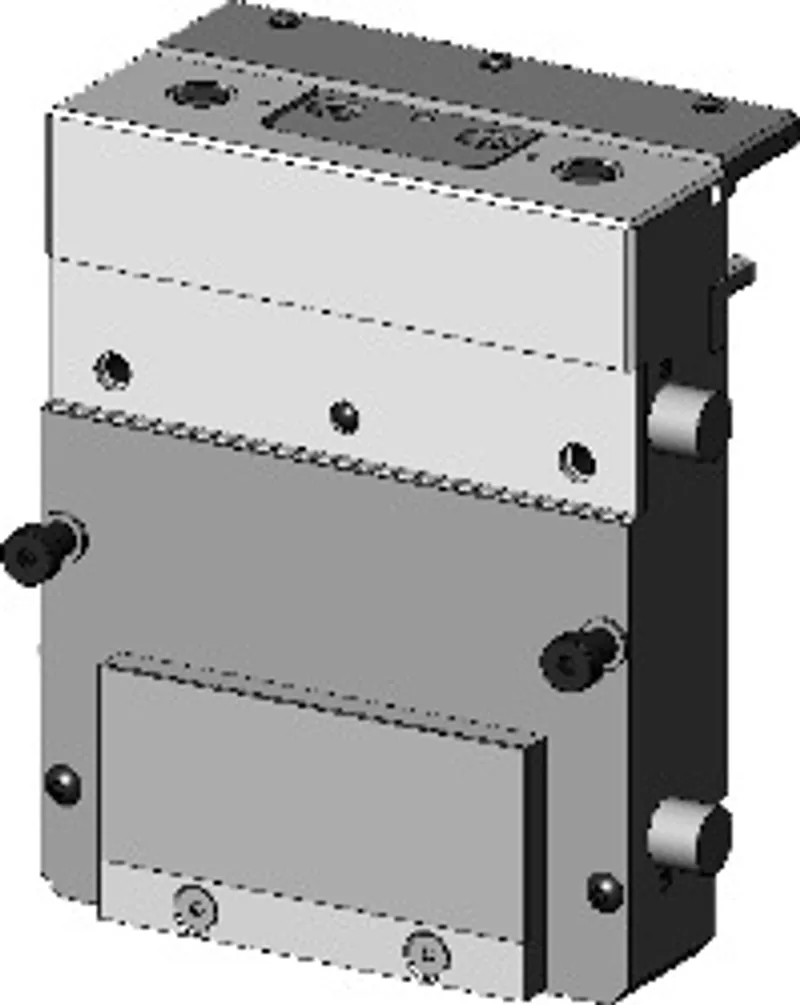

SuperTrak shuttle, 2 magnets with IR identification Includes: - Quantity 1: Base shuttle - Quantity 1: Magnet assembly - Quantity 1: Magnetic encoder strip assembly - Quantity 1: IR tag assembly
Specifications
Electrical properties
| Power consumption | Max. 275 W (note: Validation of power consumption to be done with a TrakMaster simulation.) |
| Magnetic field strength | 2.2 to 268 Gs |
| Magnetic force | 860 N; (Straight segment); ; 430 N; (Curved segment 180° (500 mm)); ; 590 N; (Curved segment 180° (800 mm), Curved segment 90°) (note: There are no motor-related magnetic fields around the segments when shuttles are not present.) |
Mechanical properties
| Dimensions – Width | 152 mm |
| Dimensions – Height | 189.23 mm |
| Dimensions – Depth | 46 mm |
| Acceleration force of motor | 120 N; (Straight segment); ; 48 N; (Curved segment 180° (500 mm)); ; 67 N; (Curved segment 180° (800 mm), Curved segment 90°) (note: Values depend on the application.) |
| Acceleration | Max. 40 m/s² (1 kg load); Max. 10 m/s² (10 kg load) (note: Values depend on the application.) |
| Velocity | Max. 4 m/s (note: Values depend on the application.) |
| Unsupported torque perpendicular to shuttle movement | 30 Nm; (Straight segment); ; 20 Nm; (Curved segment 180° (500 mm)); ; 25 Nm; (Curved segment 180° (800 mm), Curved segment 90°) (note: Includes process force, product mount mass and product mass.) |
| Maximum contact force on a single wheel in each direction | 150 N |
| Minimum center-to-center distance between 2 shuttles (measured along the flat rail) | 167 mm; (Straight Segment with bumper); ; 154 mm; (Straight Segment without bumper); ; 175 mm; (Curved segment 180° (500 mm)); ; 163 mm; (Curved segment 180° (800 mm), Curved segment 90°) |
| Repeat accuracy | Straight segment; X - axis: ±0.01 mm (±0.00039 in.); Y - axis: ±0.015 mm (±0.00059 in.); Z - axis: ±0.025 mm (±0.00098 in.); Curved segment (X - , Y - , Z - axis ): ±0.025 mm (±0.00098 in.) (note: Values depend on the application.) |
| Weight | 2.02 kg (with magnet cover plate: 2.2 kg) |
Accessories
Optional accessories (1)
| 8FZSE0.00.0100-1 | Accessories — SuperTrak Magnetic encoder strip viewing film (pack of 5 pieces) |
