B&R 8FZAP0.00.0200-1

Name: B&R 8FZAP0.00.0200-1
Brand: B&R
SKU: 8FZAP0.00.0200-1

MPN: 8FZAP0.00.0200-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Power supply
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	6.3 kg

Shipping & availability

When can 8FZAP0.00.0200-1 be shipped?

8FZAP0.00.0200-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8FZAP0.00.0200-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8FZAP0.00.0200-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8FZAP0.00.0200-1, subject to availability and destination.

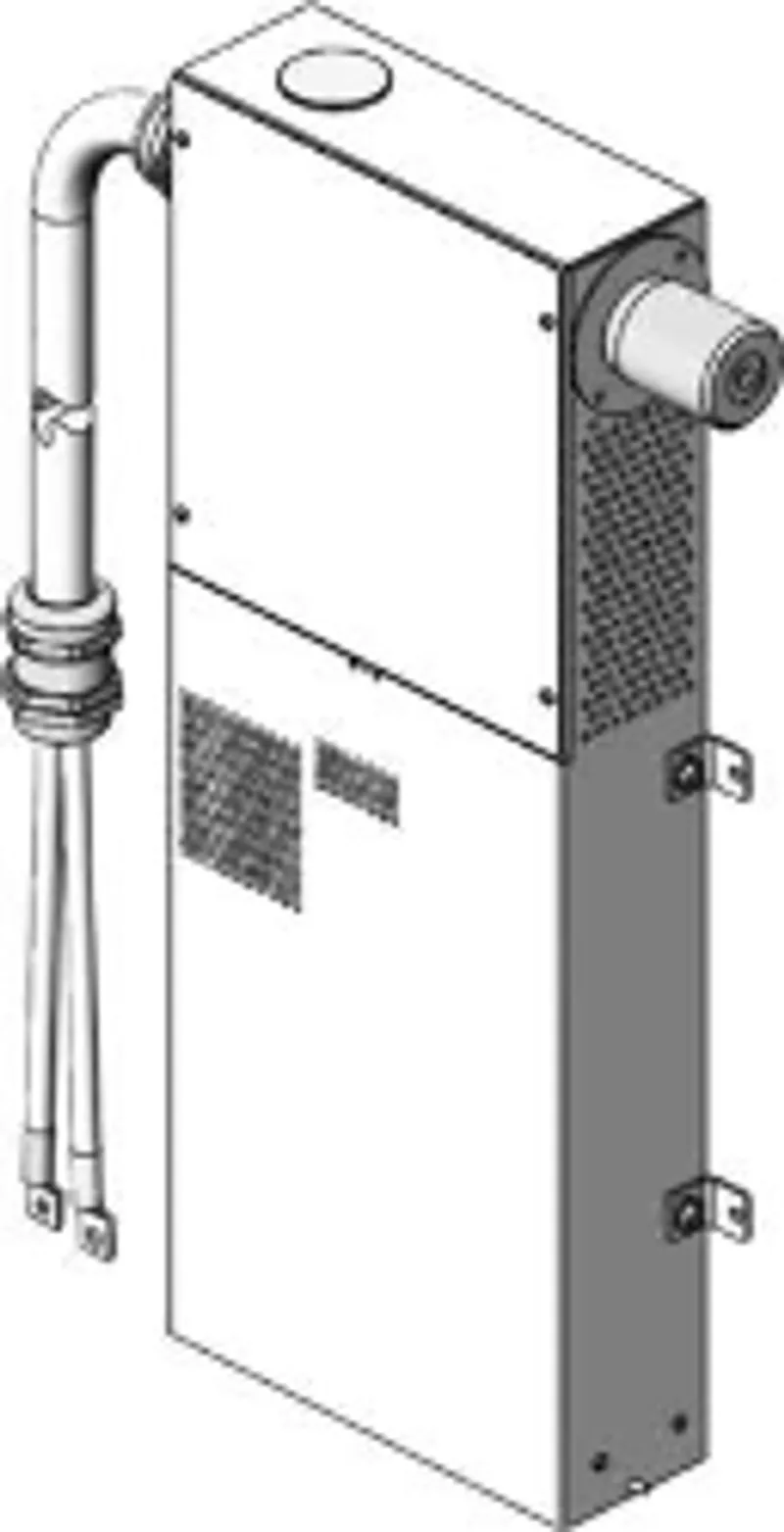

SuperTrak motor power supply 8 m 1500 W 28 VDC power supply unit to power the shuttle drive. Includes: - Hardware for assembly - 8 m wiring harness for connection to the bus system

Specifications

CE	Yes
CRA (Cyber Resilience Act)	Evaluation ongoing
Mains input voltage	1x 200 to 240 VAC ±10%
Frequency	50 / 60 Hz ±4%
SCCR	5 kA
Output power	Max. 1500 W
Output voltage	28 VDC
Hanging vertically	Yes (filter element on bottom)
Horizontal, face up	No
Standing horizontally	No
Nominal	-20 to 71°C
Maximum	71 C
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	II
Degree of protection per EN 60529	IP20
Storage	20 to 90%
Transport	20 to 90%
Operation	20 to 90%
Width	229 mm
Height	490 mm
Depth	66 mm
Weight	6.3 kg
