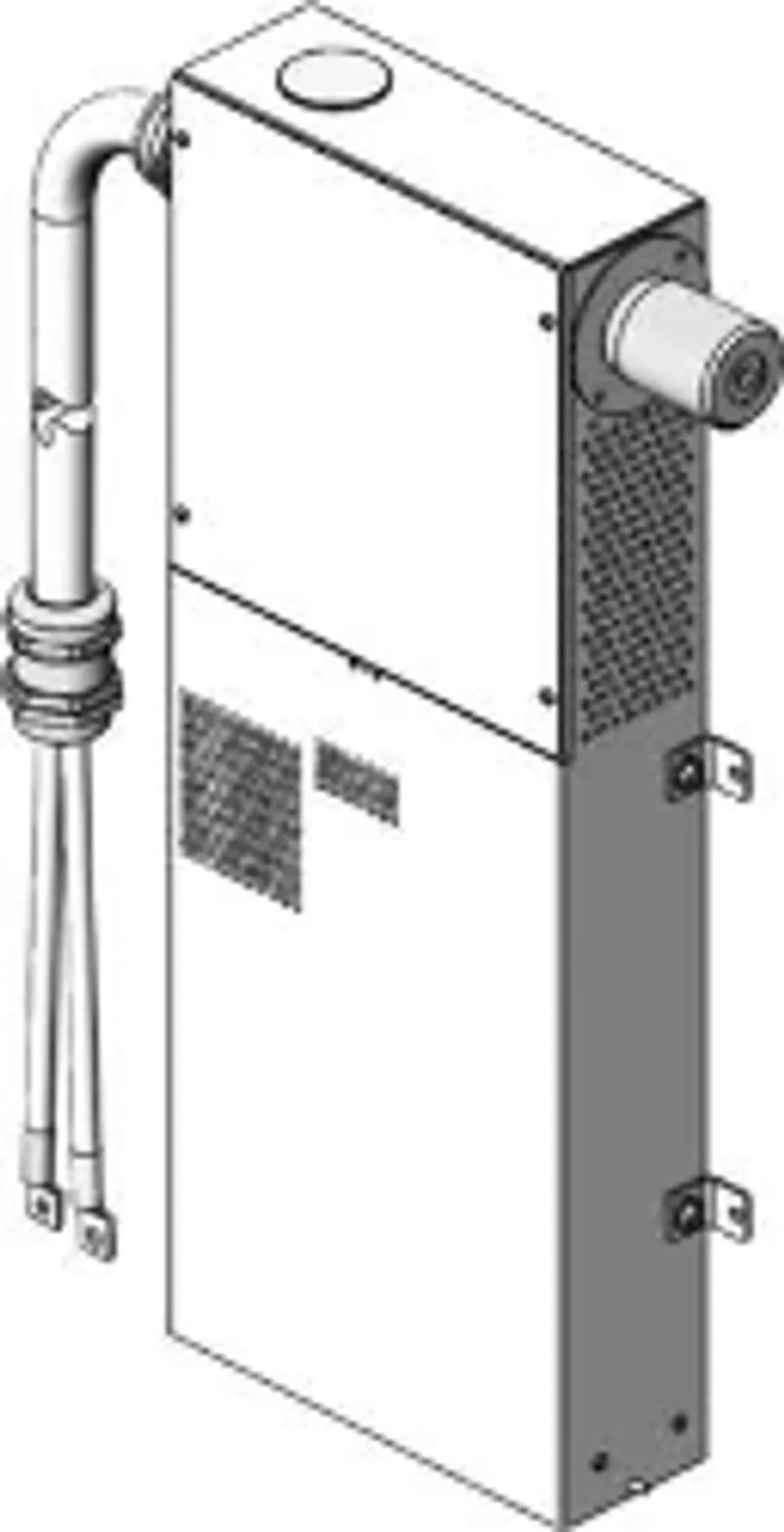

B&R 8FZAP0.00.0100-1
SuperTrak motor power supply 1.5 m 1500 W 28 VDC power…
- MPN
- 8FZAP0.00.0100-1
- Category
- Power supply
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8FZAP0.00.0100-1?
SuperTrak motor power supply 1.5 m 1500 W 28 VDC power supply unit to power the shuttle drive. Includes: - Hardware for assembly - 1.5 m wiring harness for connection to the bus system
Specifications
General information
| Certifications – CE | Yes |
| Certifications – TÜV SÜD | Certified per UL 508 |
Mains connection
| Mains input voltage | 1x 200 to 240 VAC ±10% |
| Frequency | 50 / 60 Hz ±4% |
| SCCR | 5 kA |
Power output
| Output power | Max. 1500 W |
Output
| Output voltage | 28 VDC |
Operating conditions
| Permissible mounting orientations – Hanging vertically | Yes (filter element on bottom) |
| Permissible mounting orientations – Horizontal, face up | No |
| Permissible mounting orientations – Standing horizontally | No |
| Installation elevation above sea level – Nominal | 0 to 500 m |
| Installation elevation above sea level – Maximum | 2000 m |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | II |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | -20 to 71°C |
| Temperature – Maximum | 71 C |
| Temperature – Storage | -20 to 75°C |
| Temperature – Transport | -20 to 75°C |
| Relative humidity – Operation | 20 to 90% |
| Relative humidity – Storage | 20 to 90% |
| Relative humidity – Transport | 20 to 90% |
Mechanical properties
| Dimensions – Width | 229 mm (note: Without mounting plate and attachment cable.) |
| Dimensions – Height | 490 mm (note: Without mounting plate and attachment cable.) |
| Dimensions – Depth | 66 mm (note: Without mounting plate and attachment cable.) |
| Weight | 6.3 kg (note: Without mounting plate.) |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
8FZAP0.00.0100-1: frequently asked questions
When can 8FZAP0.00.0100-1 be shipped?
8FZAP0.00.0100-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8FZAP0.00.0100-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8FZAP0.00.0100-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8FZAP0.00.0100-1, subject to availability and destination.
