B&R 8FZAS1.3A.A100-1

Name: B&R 8FZAS1.3A.A100-1
Brand: B&R
SKU: 8FZAS1.3A.A100-1

MPN: 8FZAS1.3A.A100-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Shuttles
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 8FZAS1.3A.A100-1 be shipped?

8FZAS1.3A.A100-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8FZAS1.3A.A100-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8FZAS1.3A.A100-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8FZAS1.3A.A100-1, subject to availability and destination.

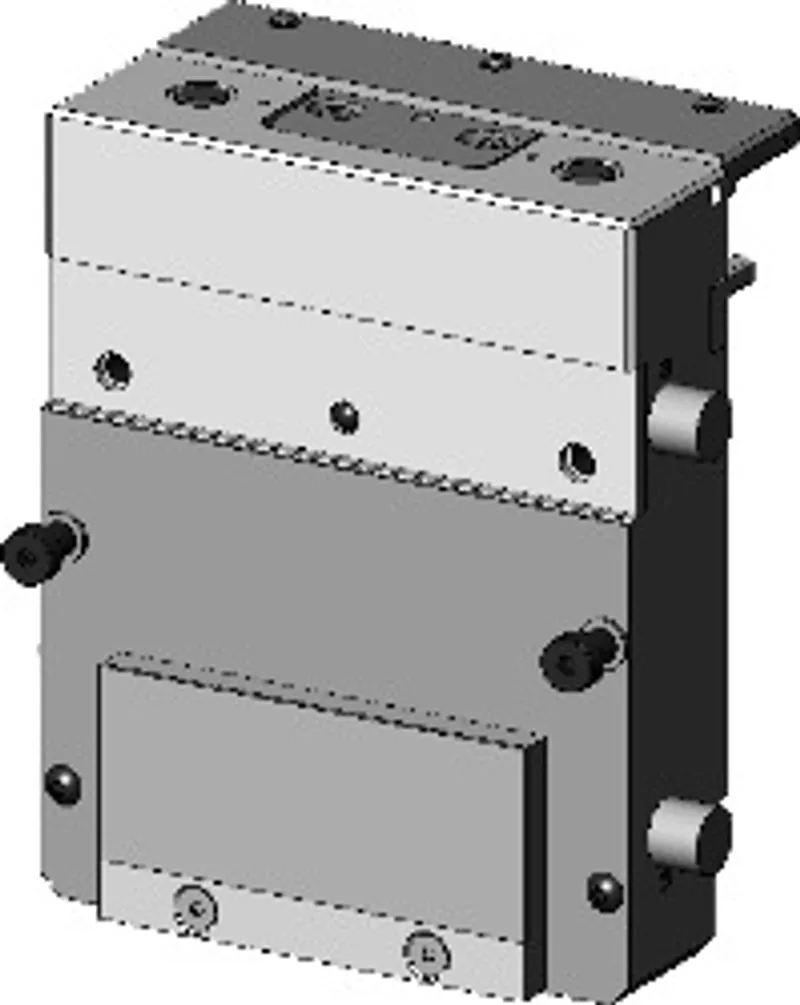

SuperTrak shuttle, 3 magnets with IR identification Includes: - Quantity 1: Base shuttle - Quantity 1: Magnet assembly - Quantity 1: Magnetic encoder strip assembly - Quantity 1: IR tag assembly

Specifications

Power consumption	Max. 275 W
Magnetic field strength	3 to 1400 Gs
Magnetic force	1290 N (Straight segment) 645 N (Curved segment 180° (500 mm)) 775 N (Curved segment 180° (800 mm), Curved segment 90°)
Width	152 mm
Height	189.23 mm
Depth	46 mm
Acceleration force of motor	160 N (Straight segment) 60 N (Curved segment 180° (500 mm)) 84 N (Curved segment 180° (800 mm), Curved segment 90°)
Acceleration	Max. 40 m/s² (1 kg load) Max. 10 m/s² (10 kg load)
Speed	Max. 4 m/s
Unsupported torque perpendicular to shuttle movement	50 Nm (Straight segment) 25 Nm (Curved segment 180° (500 mm)) 32 Nm (Curved segment 180° (800 mm), Curved segment 90°)
Maximum contact force on a single wheel in each direction	150 N
Minimum center-to-center distance between 2 shuttles (measured along the flat rail)	200 mm (Straight Segment with bumper) 200 mm (Straight Segment without bumper) 200 mm (Curved segment 180° (500 mm)) 200 mm (Curved segment 180° (800 mm), Curved segment 90°)
Repeat accuracy	Straight segment X - axis: ±0.01 mm (±0.00039 in.) Y - axis: ±0.015 mm (±0.00059 in.) Z - axis: ±0.025 mm (±0.00098 in.) Curved segment (X - , Y - , Z - axis ): ±0.025 mm (±0.00098 in.)
Weight	2.4 kg (with magnet cover plate: 2.7 kg)
