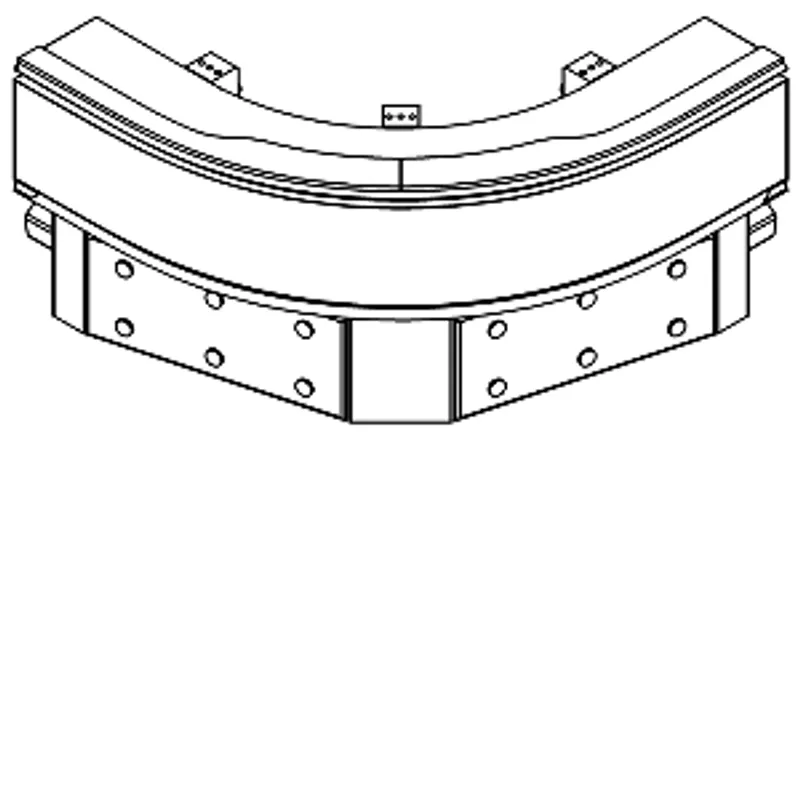

B&R 8FZAM7.0A.A000-1
SuperTrak curved segment 90° Includes: - Quantity 1: 90°…
- MPN
- 8FZAM7.0A.A000-1
- Category
- Segments
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8FZAM7.0A.A000-1?
SuperTrak curved segment 90° Includes: - Quantity 1: 90° segment section
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | Evaluation ongoing |
24 VDC power supply
| Current consumption | 250 mA |
28 VDC output
| Peak current | 100 A |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5 to 25°C |
| Temperature – Maximum | 40°C |
| Relative humidity – Operation | 5 to 90%, non-condensing |
Mechanical properties
| Dimensions – Width | 596.9 mm |
| Dimensions – Height | 356.4 mm |
| Dimensions – Depth | 596.9 mm |
| Material | Anodized aluminum, stainless steel, polyamide (PA), polycarbonate (PC), epoxy resin |
| Acceleration force of motor | 67 N (Shuttle, 2 magnets); 84 N (Shuttle, 3 magnets) |
| Weight | 86.2 kg |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
8FZAM7.0A.A000-1: frequently asked questions
When can 8FZAM7.0A.A000-1 be shipped?
8FZAM7.0A.A000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8FZAM7.0A.A000-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8FZAM7.0A.A000-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8FZAM7.0A.A000-1, subject to availability and destination.
