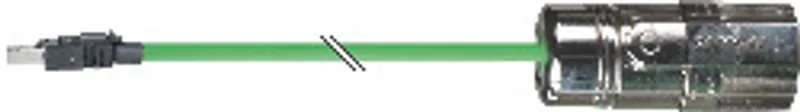

B&R 8ECR0025.1111C-0
- MPN
- 8ECR0025.1111C-0
- Category
- Resolver cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8ECR0025.1111C-0?
Can be used in cable drag chains
Assembled specifically for use with ACOPOS P3 servo drives and B&R servo motors
speedtec - Innovative connector system for secure connections
ACOPOS P3 resolver cable, length 25 m, 3x 2x 24 AWG (19x 0.127), 12-pin female speedtec connector, 8-pin male Mini I/O connector, can be used in cable drag chains
Specifications
Specifications
| Cable cross section | 3x 2x 24 19 AWG |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils |
| Certification | UL AWM style 20671, 90°C, 30 V, E63216 and CSA AWM, 90°C, 30 V, I/II A/B FT1 LL46064 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| Quantity | 6 |
| Wire insulation | Special thermoplastic material |
| Wire colors | White/Brown, green/yellow, gray/pink |
| Variant | Tinned copper stranded wire |
| Cross section | 24 AWG / 19 AWG |
| Shield | No |
| Stranding | White with brown, green with yellow, gray with pink |
| Cable stranding | The 3 pairs together covered by foil shield |
| Cable shield | Copper braiding, optical coverage ≥90% and foil shield |
| Material | PUR |
| Color | Green, similar to RAL 6018 flat |
| Labeling | B&R 3x2x24 AWG FLEX UL AWM STYLE 20671 90°C 30 V E63216 CSA AWM 90°C 30 V I/II A/B FT1 LL46064 |
| Type | 12-pin female speedtec resolver connector |
| Mating cycles | <500 |
| Contacts | 12 |
| Additional connectors | 8-pin male Mini I/O encoder connectorMating cycles: <1500Contacts: 8Degree of protection per EN 60529: IP30 when connected |
| Degree of protection per EN 60529 | IP66/67 when connected |
| Operating voltage | ≤30 Veff |
| Wire - Wire | 1.5 kV |
| Wire - Shield | 0.8 kV |
| Signal line | ≤86 Ω/km |
| Insulation resistance | >200 MΩ*km |
| Moving | ≥50 mm |
| Static | -20°C to +90°C |
| Length | 25 m |
| Diameter | 6.5 mm ±0.2 mm |
| Single bend | ≥20 mm |
| Acceleration | ≤6 g |
| Flex cycles | >3,000,000 |
| Velocity | ≤4 m/s |
| Weight | 1.8 kg |
