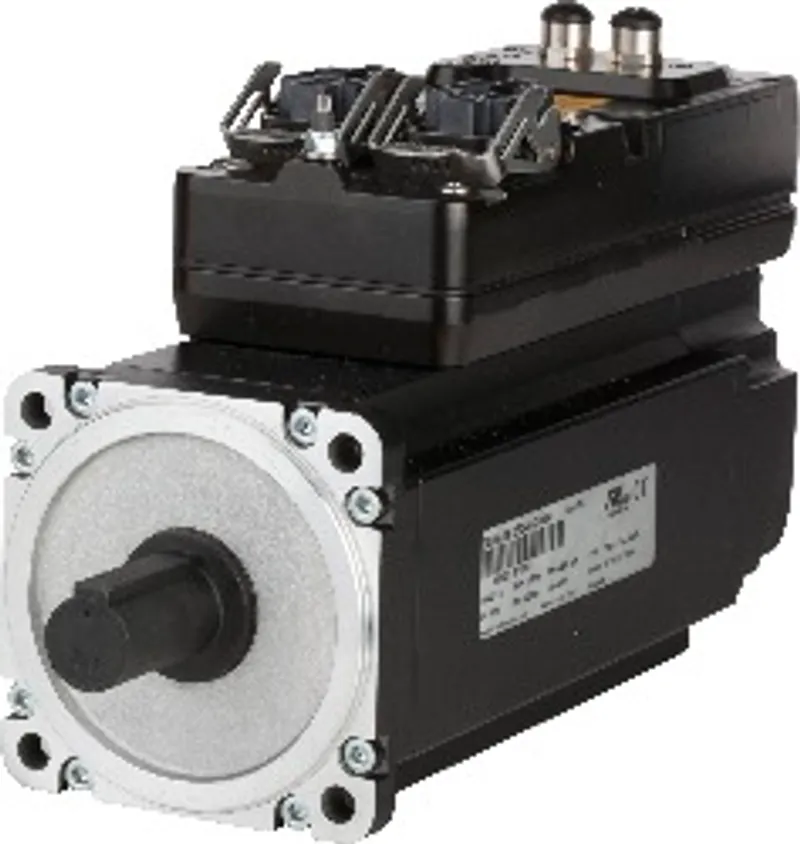

B&R 8DI330.ff045hi00-1

Name: B&R 8DI330.ff045hi00-1
Brand: B&R
SKU: 8DI330.ff045hi00-1

MPN: 8DI330.ff045hi00-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	8DI3 (size 3; integrated servo drive)
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 8DI330.ff045hi00-1 be shipped?

8DI330.ff045hi00-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8DI330.ff045hi00-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8DI330.ff045hi00-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8DI330.ff045hi00-1, subject to availability and destination.

Inverter integrated directly on the motorLess space required in the control cabinetReduced wiringDaisy chain wiring possibleCooling of the electronics via the motorTrigger inputs / POWERLINK / 24 VDC output directly on the motor (optional)IP64 protection (IP65 optional) ACOPOSmotor, size 3, length 3, nominal speed 4500 rpm

Specifications

Nominal speed nN [rpm]	4500
Number of pole pairs	4
Nominal torque Mn [Nm]	1.17
Nominal power PN [W]	551
Nominal current IN [A]	1.08
Stall torque M0 [Nm]	2.4
Stall current I0 [A]	2.22
Maximum torque Mmax [Nm]	6.12
Maximum current Imax [A]	5.67
Maximum speed nmax [rpm]	6600
Torque constant KT [Nm/A]	1.08
Voltage constant KE [V/1000 rpm]	65.97
Stator resistance R2ph [Ω]	4.81
Stator inductance L2ph [mH]	19.81
Thermal time constant ttherm [min]	34
Moment of inertia J [kgcm2]	0.95
Mass without brake m [kg]	4.7
