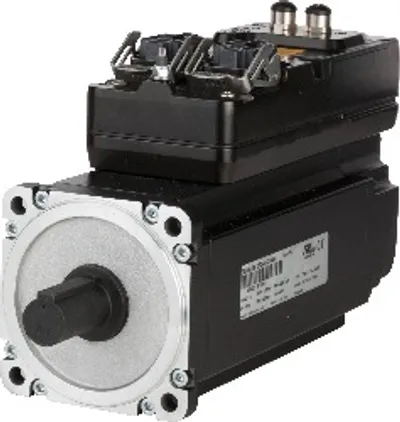

8DI3 (size 3; integrated servo drive) Parts
Compare 8DI3 (size 3; integrated servo drive)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal torque M n [Nm] | Nominal power P N [W] | Nominal current I N [A] | Stall torque M 0 [Nm] | Stall current I 0 [A] |
|---|---|---|---|---|---|
| 8DI330.ff045hi00-1 | 1.17 | 551 | 1.08 | 2.4 | 2.22 |
| 8DI340.ff045hi00-1 | 1.52 | 716 | 1.39 | 2.86 | 2.62 |
| 8DI33S.ff045hi00-1 | 1.17 | 551 | 1.08 | 2.4 | 2.22 |
| 8DI34S.ff045hi00-1 | 1.52 | 716 | 1.39 | 2.86 | 2.62 |
Common to all listed parts
| Nominal speed n N [rpm] | 4500 |
| Number of pole pairs | 4 |
| Maximum speed n max [rpm] | 6600 |
| Voltage constant K E [V/1000 rpm] | 65.97 |
