B&R X67CA0E41.0010

Accessories, POWERLINK/Ethernet connection cable

MPN: X67CA0E41.0010
Category: POWERLINK/Ethernet-Cable

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X67CA0E41.0010?

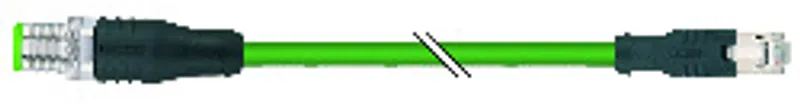

POWERLINK/Ethernet connection cable, RJ45 to M12, 1 m

Specifications

Short description

Accessories

POWERLINK/Ethernet connection cable, RJ45 to M12, 4-pin, straight, 1 m

General information

Cable cross section – AWG	4x 22 AWG
Cable cross section – mm²	4x 0.34 mm²
Note	PWIS- and halogen-free (note: Up to version Halogen-free)
Durability	Flame-retardant, RoHS-compliant ; Acid, alkali and oil resistant ; Salt water resistant ; UV and ozone resistant (note: Up to version Flame-retardant per IEC 60332-1-2; RoHS 2011/65/EU)

Cable construction

Outer jacket – Material	Polyurethane (PUR)
Outer jacket – Color	Green
Wires – Wire insulation	FRNC (Flame-Retardant Non-Corrosive)
Wires – Wire colors	White, yellow, blue, orange
Wires – Type	Tinned copper stranded wire; Fine stranded wire (7x 0.25 mm / 7x 30 AWG)
Wires – Stranding	Complete stranding ; 4 wires to the star quad
Cable shield	Overlapping aluminum-clad foil, tinned copper braiding, 85% coverage

Electrical properties

Test voltage – Wire - Wire	2000 V
Test voltage – Wire - Shield	2000 V
Operating voltage	Max. 60 V for PoE
Conductor resistance	≤120 Ω/km at 20°C
Transfer properties	Category 5 / Class D up to 100 MHz per ISO/IEC 11801 (EN 50173-1), ISO/IEC 24702 (EN 50173-3)
Transfer rate	10/100 Mbit/s
Insulation resistance	≥500 MΩ/km at 20°C

Operating conditions

Degree of protection per EN 60529 – Cables	IP67
Degree of protection per EN 60529 – M12 connector	IP67, only when screwed in
Degree of protection per EN 60529 – RJ45 connector	IP20, only when properly connected

Ambient conditions

Temperature – Transport	-50 to 75°C (note: Up to version -50 to 70°C)
Temperature – Fixed installation	-40 to 75°C (note: Up to version -40 to 70°C)
Temperature – Flexible installation	-30 to 70°C (note: Up to version -20 to 60°C)

Mechanical properties

Dimensions – Length	1 m
Dimensions – Diameter	6.5 mm ±0.2 mm
Bend radius – Fixed installation	≥4x outer diameter (note: Up to version ≥3x outer diameter)
Bend radius – Flexible installation	≥8x outer diameter (note: Up to version ≥7x outer diameter)
Drag chain data – Acceleration	3 m/s² (note: Up to version Cables cannot be used in cable drag chains.)
Drag chain data – Flex cycles	Min. 3 million (note: Up to version Cables cannot be used in cable drag chains.)
Drag chain data – Velocity	3 m/s (note: Up to version Cables cannot be used in cable drag chains.)
Drag chain data – Bend radius	200 mm (note: Up to version Cables cannot be used in cable drag chains.)
Weight	0.064 kg/m

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

X67 System User´s ManualPDF · 21 MB · 4.40 (08/27/2026) - EN

CAD & dimension drawings

3D File STEP POWERLINK Cable X67CAxE41ZIP · 934 KB · 1.00 (01/17/2019)

Certificates (2)
