B&R X67CA0E61.0050

Name: B&R X67CA0E61.0050
Brand: B&R
SKU: X67CA0E61.0050

MPN: X67CA0E61.0050 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	POWERLINK/Ethernet-Cable
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.06 kg

Shipping & availability

When can X67CA0E61.0050 be shipped?

X67CA0E61.0050 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X67CA0E61.0050 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X67CA0E61.0050 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67CA0E61.0050, subject to availability and destination.

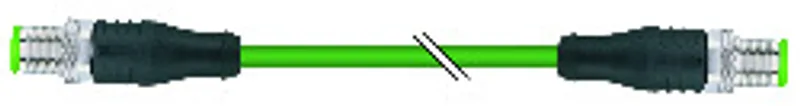

POWERLINK/Ethernet connection cable, M12 to M12, 5 m

Specifications

Accessories	POWERLINK/Ethernet connection cable, M12, 4-pin, straight, 5 m
Note	PWIS- and halogen-free
Durability	Flame-retardant, RoHS-compliant Acid, alkali and oil resistant Salt water resistant UV and ozone resistant
AWG	4x 22 AWG
mm²	4x 0.34 mm²
Cable shield	Overlapping aluminum-clad foil, tinned copper braiding, 85% coverage
Material	Polyurethane (PUR)
Color	Green
Wire insulation	FRNC (Flame-Retardant Non-Corrosive)
Wire colors	White, yellow, blue, orange
Type	Tinned copper stranded wire Fine stranded wire (7x 0.25 mm / 7x 30 AWG)
Stranding	Complete stranding 4 wires to the star quad
Operating voltage	Max. 60 V for PoE
Wire - Wire	2000 V
Wire - Shield	2000 V
Conductor resistance	≤120 Ω/km at 20°C
Transfer properties	Category 5 / Class D up to 100 MHz per ISO/IEC 11801 (EN 50173-1), ISO/IEC 24702 (EN 50173-3)
Transfer rate	10/100 Mbit/s
Insulation resistance	≥500 MΩ/km at 20°C
Cables	IP67
M12 connector	IP67, only when screwed in
RJ45 connector	IP20, only when properly connected
Transport	-50 to 75°C
Fixed installation	≥4x outer diameter
Flexible installation	≥8x outer diameter
Length	5 m
Diameter	6.5 mm ±0.2 mm
Acceleration	3 m/s²
Flex cycles	Min. 3 million
Velocity	3 m/s
Bend radius	200 mm
Weight	0.064 kg/m
