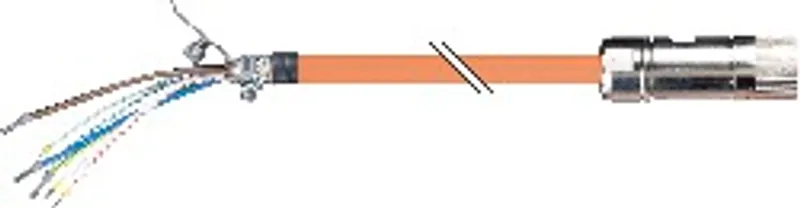

B&R 8BCM0010.3312A-0

MPN: 8BCM0010.3312A-0
Category: 4 mm² motor cables

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 8BCM0010.3312A-0?

Extremely flexible

Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with motor connector size 1

speedtec - Innovative connector system for secure connections

Integrated shield plate

A shield plate is attached to ACOPOSmulti motor cables. If this shield plate is correctly installed on the respective ACOPOSmulti 8BVI inverter module, no additional shielding measures are necessary.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E225616; Power conversion equipment
Cable cross section	4x 4 mm² + 2x 2x 1 mm² VZN (C)
Durability	Oil resistance TM5 per VDE 0281 Part 1 / HD21.1; Flame resistance per IEC 60332-1-2 / UL 2556 (VW-1) / CSA C22.2 No. 2556 (FT-1) (note: Values refer to the raw cable being used.)

Cable construction

Power lines – Quantity	4
Power lines – Wire insulation	PP
Power lines – Wire colors	Black, brown, blue, yellow/green
Power lines – Variant	Tinned copper stranded wire
Power lines – Cross section	4 mm²
Power lines – Shield	No
Power lines – Stranding	No
Signal line – Quantity	4
Signal line – Wire insulation	PP
Signal line – Wire colors	White, white/red, white/blue, white/green
Signal line – Variant	Tinned copper stranded wire
Signal line – Cross section	1 mm²
Signal line – Shield	Individually shielded in pairs, tinned copper braiding, optical coverage >85% and foil shield
Signal line – Stranding	White with white/red and white/blue with white/green
Outer jacket – Material	PVC
Outer jacket – Color	Orange, similar to RAL 2003 flat
Cable stranding	With filler elements and foil shield
Cable shield	Tinned copper braiding, optical coverage >85% and foil shield

Connector

Type	8-pin female speedtec motor connector, size 1
Mating cycles	<500
Contacts	8 (4 power and 4 signal contacts)
Degree of protection per EN 60529	IP66/67 when connected

Electrical properties

Test voltage – Wire - Wire	4 kV
Test voltage – Wire - Shield	3 kV
Conductor resistance – Power lines	≤5.1 Ω/km
Conductor resistance – Signal line	≤20 Ω/km
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting	28 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct	23 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray	30 A
Insulation resistance	≥100 MΩ*km

Ambient conditions

Temperature – Moving	-20°C to +80°C
Temperature – Static	-20°C to +90°C

Mechanical properties

Dimensions – Length	10 m
Dimensions – Diameter	15.6 mm ±0.6 mm
Bend radius – Single bend	>81 mm
Bend radius – Moving	≥243 mm
Weight	4 kg
