4 mm² motor cables Parts
Compare 4 mm² motor cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dimensions – Length | Weight |
|---|---|---|
| 8BCM0016.3312A-0 | 16 m | 6.4 kg |
| 8BCM0009.3312A-0 | 9 m | 3.9 kg |
| 8BCM0008.3312A-0 | 8 m | 3.2 kg |
| 8BCM0012.3312A-0 | 12 m | 4.8 kg |
| 8BCM0003.3312A-0 | 3 m | 1.2 kg |

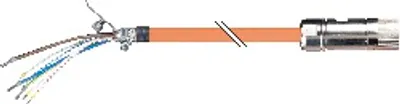

| 8BCM0005.3312A-0 | 5 m | 2 kg |
| 8BCM0007.3312A-0 | 7 m | 2.8 kg |
| 8BCM0010.3312A-0 | 10 m | 4 kg |
| 8BCM0013.3312A-0 | 13 m | 5.2 kg |
| 8BCM0015.3312A-0 | 15 m | 6 kg |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 4x 4 mm² + 2x 2x 1 mm² VZN (C) |
| Power lines – Quantity | 4 |
| Power lines – Wire insulation | PP |
| Power lines – Wire colors | Black, brown, blue, yellow/green |
