B&R 8BCM0010.3034C-0
- MPN
- 8BCM0010.3034C-0
- Category
- Motor cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

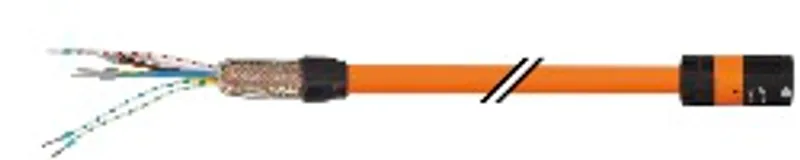

What is the B&R 8BCM0010.3034C-0?
Extremely flexible
itec - Innovative connector system for fast and secure connections
Motor cable, length 10 m, 4x 0.75 mm² + 2x 2x 0.34 mm², 8-pin female series 915 power connector
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 4x 0.75 mm² + 2x 2x 0.34 mm² |
| Durability | Oil resistance TM5 per VDE 0281 Part 1 / HD21.1; Flame resistance per IEC 60332-1-2 / UL 2556 (VW-1) / CSA C22.2 No. 210.2 (FT-1) (note: Values refer to the raw cable being used.) |
| Certification | UL Style 2570 80°C 1000 V VW-1 E130266 and cUL AWM I/II A/B 80°C 1000 V FT-1 (note: Values refer to the raw cable being used.) |
Cable construction
| Power lines – Quantity | 4 |
| Power lines – Wire insulation | PP |
| Power lines – Wire colors | Black, brown, blue, yellow/green |
| Power lines – Execution | Tinned copper stranded wire |
| Power lines – Cross section | 0.75 mm² |
| Power lines – Shield | No |
| Power lines – Stranding | No |
| Signal line – Quantity | 4 |
| Signal line – Wire insulation | PP |
| Signal line – Wire colors | White, white/red, white/blue, white/green |
| Signal line – Execution | Tinned copper stranded wire |
| Signal line – Cross section | 0.34 mm² |
| Signal line – Shield | Individually shielded in pairs, tinned copper braiding, optical coverage >85% and foil shield |
| Signal line – Stranding | White with white/red and white/blue with white/green |
| Outer jacket – Material | PVC |
| Outer jacket – Color | Orange, similar to RAL 2003 flat |
| Outer jacket – Labeling | B&R 4x0.75+2x2x0.34 XX/YYYY E130266 cURus AWM STYLE 2570 I/II A/B 80°C 1000 V FT-1 (note: XX ... Week of manufacture, YYYY ... Year of manufacture Values refer to the raw cable being used.) |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage >85% and foil shield |
Connector
| Type | 8-pin female series 915 power connector |
| Mating cycles | <500 |
| Contacts | 8 (4 power and 4 signal contacts) |
| Degree of protection per EN 60529 | IP66/67 when connected |
Electrical properties
| Test voltage – Wire - Wire | 4 kV |
| Test voltage – Wire - Shield | 3 kV |
| Conductor resistance – Power lines | ≤58.3 Ω/km |
| Conductor resistance – Signal line | ≤26.7 Ω/km |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting | 9.8 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct | 8.5 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray | 10.4 A |
| Insulation resistance | ≥100 MΩ*km |
Ambient conditions
| Temperature – Moving | -20°C to +80°C |
| Temperature – Static | -20°C to +90°C |
Mechanical properties
| Dimensions – Length | 10 m |
| Dimensions – Diameter | 10.6 mm ±0.4 mm |
| Bend radius – Single bend | >55 mm |
| Bend radius – Moving | ≥165 mm |
| Weight | 2 kg |
