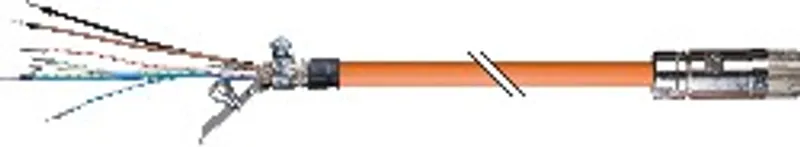

B&R 8BCM0010.3111A-0

MPN: 8BCM0010.3111A-0
Category: Motor cables 1,5 mm²

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8BCM0010.3111A-0?

Extremely flexible

Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with motor connector size 1

speedtec - Innovative connector system for secure connections

Integrated shield plate

A shield plate is attached to ACOPOSmulti motor cables. If this shield plate is correctly installed on the respective ACOPOSmulti 8BVI inverter module, no additional shielding measures are necessary.

Specifications

General information

Certification – CE	Yes
Certification – cULus	Yes
Cable cross section	4x 1.5 mm² + 2x 2x 0.75 mm²
Durability	Oil resistance TM5 per VDE 0281 Part 1 / HD21.1; Flame resistance per IEC 60332-1-2 / UL 2556 (VW-1) / CSA C22.2 No. 2556 (FT-1) (note: Values refer to the raw cable being used.)

Cable structure

Power lines – Quantity	4
Power lines – Wire insulation	PP
Power lines – Wire colors	Black, brown, blue, yellow/green
Power lines – Design	Tinned copper stranded wire
Power lines – Diameter	1.5 mm²
Power lines – Shield	No
Power lines – Stranding	No
Signal lines – Quantity	4
Signal lines – Wire insulation	PP
Signal lines – Wire colors	White, white/red, white/blue, white/green
Signal lines – Design	Tinned copper stranded wire
Signal lines – Diameter	0.75 mm²
Signal lines – Shield	Individually shielded in pairs, tinned copper braiding, optical coverage >85% and foil shield
Signal lines – Stranding	White with white/red and white/blue with white/green
Outer sheathing – Materials	PVC
Outer sheathing – Color	Orange, similar to RAL 2003 flat
Cable stranding	With filler elements and foil shield
Cable shielding	Tinned copper braiding, optical coverage >85% and foil shield

Connector

Type	8-pin female speedtec motor connector, size 1
Connection cycles	<500
Contacts	8 (4 power and 4 signal contacts)
EN 60529 protection	IP66/67 when connected

Electrical characteristics

Test voltage – Wire/Wire	4 kV
Test voltage – Wire/Shield	3 kV
Conductor resistance – Power lines	≤13.7 Ω/km
Conductor resistance – Signal lines	≤26.7 Ω/km
Max. current load in accordance with IEC 60364-5-523 by installation type – Wall mounting	15.2 A
Max. current load in accordance with IEC 60364-5-523 by installation type – Installed in conduit or cable duct	13.1 A
Max. current load in accordance with IEC 60364-5-523 by installation type – Installed in cable tray	16.1 A
Insulation resistance	≥100 MΩ*km

Environmental conditions

Temperature – Moving	-20°C to +80°C
Temperature – Static	-20°C to +90°C

Mechanical characteristics

Dimensions – Length	10 m
Dimensions – Diameter	12.3 mm ±0.4 mm
Flex radius – Single bend	>64 mm
Flex radius – Moving	≥190 mm
Weight	2.3 kg

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Certificates (3)
