Plug-in modules Parts

B&R

ACOPOS plug-in module, CAN interface

B&R

CAN interface for installation in ACOPOS servo drives

B&R

POWERLINK interface for installation in ACOPOS servo drives

B&R

POWERLINK interface for installation in ACOPOS servo drives

B&R

EnDat 2.1 encoder interface for installation in ACOPOS…

B&R

HIPERFACE interface for installation in ACOPOS servo drives

B&R

Resolver interface for installation in ACOPOS servo drives

B&R

Incremental encoder and SSI absolute encoder interface for…

B&R

BiSS encoder interface (Mode C) for installation in ACOPOS…

B&R

BiSS encoder interface (Mode C) for installation in ACOPOS…

B&R

BiSS encoder interface (Mode C) for installation in ACOPOS…

B&R

EnDat 2.2 encoder interface for installation in ACOPOS…

B&R

Digital mixed module for installation in ACOPOS servo drives

B&R

Mixed module for installation in ACOPOS servo drives

Compare Plug-in modules

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Module-side connection	Status indicators	Encoder monitoring

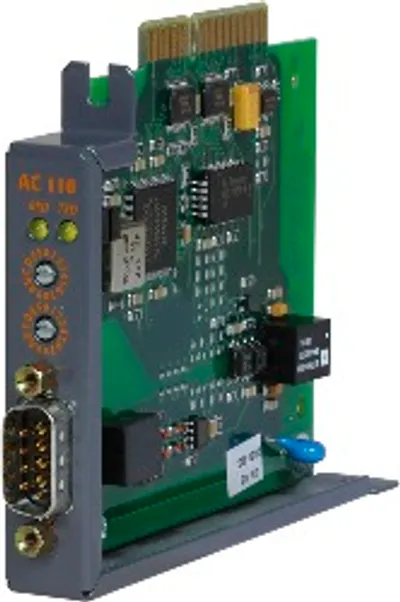

8AC110.60-3	—	—	—
8AC110.60-2	—	—	—

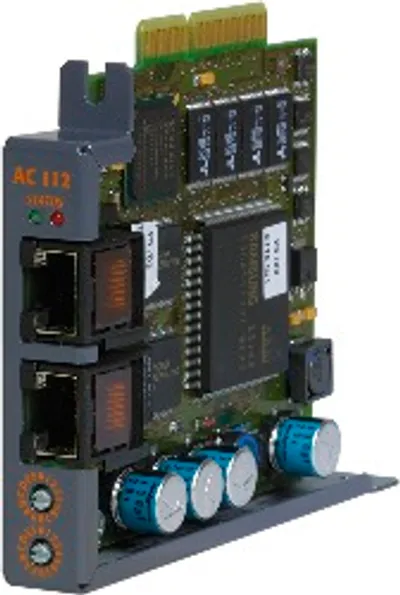

8AC112.60-1	—	—	—

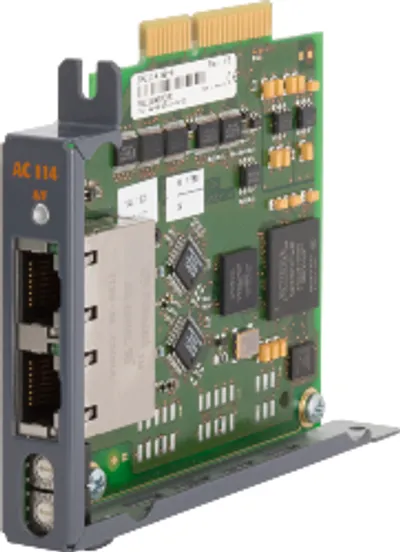

8AC114.60-2	—	—	—

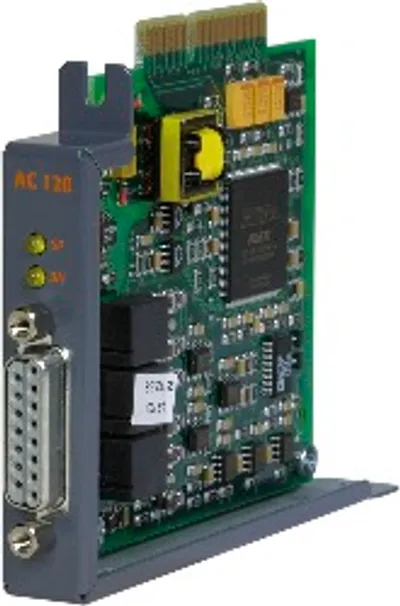

8AC120.60-1	15-pin female DSUB	UP/DN LEDs	Yes

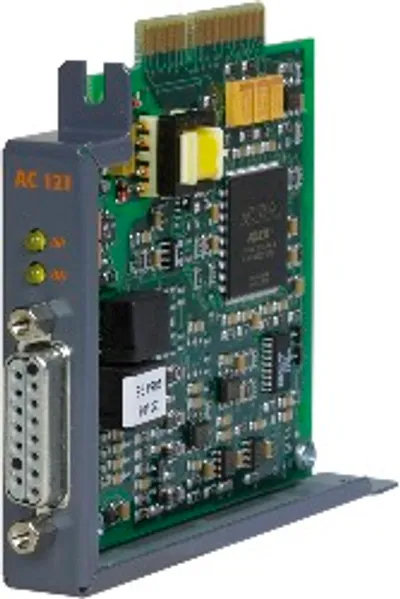

8AC121.60-1	15-pin female DSUB, 2 pins closed	UP/DN LEDs	Yes

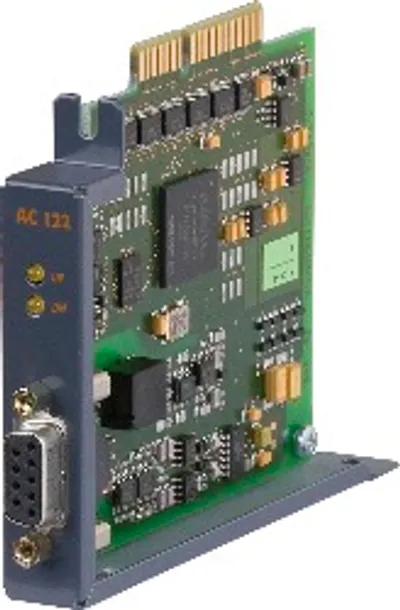

8AC122.60-3	9-pin female DSUB	UP/DN LEDs	Yes
8AC123.60-1	15-pin female DSUB	UP/DN LEDs	Yes

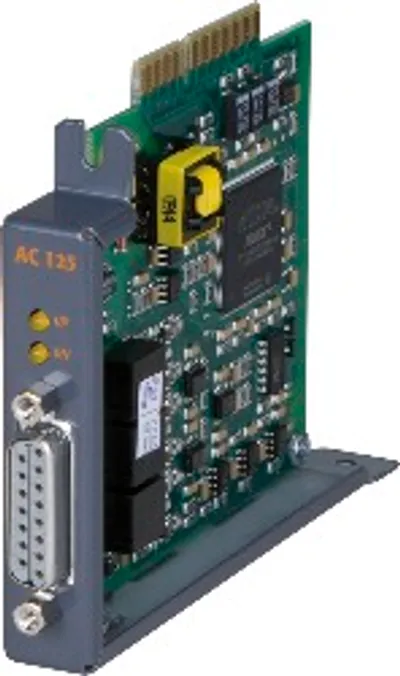

8AC125.60-1	15-pin female DSUB	UP/DN LEDs	Yes

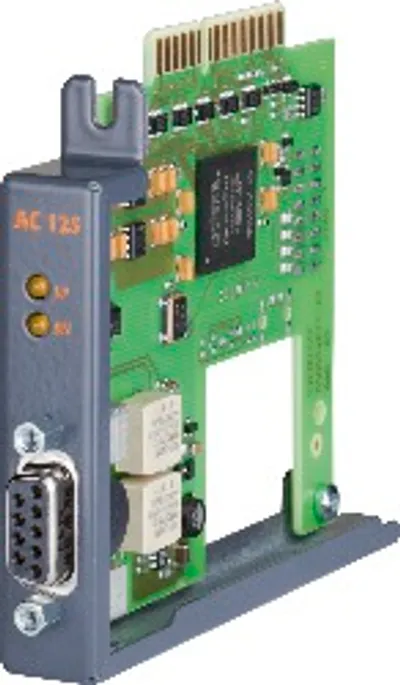

8AC125.60-2	9-pin female DSUB	UP/DN LEDs	Yes

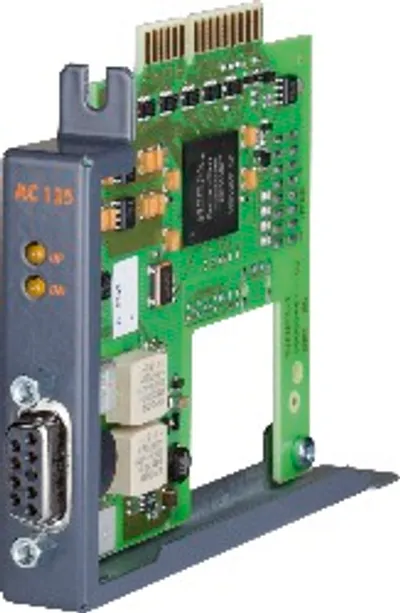

8AC125.61-2	9-pin female DSUB	UP/DN LEDs	Yes

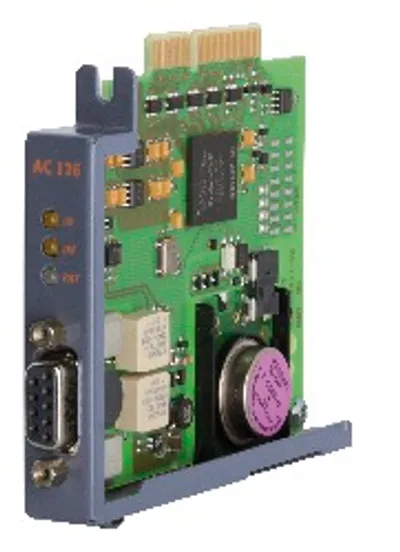

8AC126.60-1	9-pin female DSUB	UP/DN LEDs, BAT LED	Yes

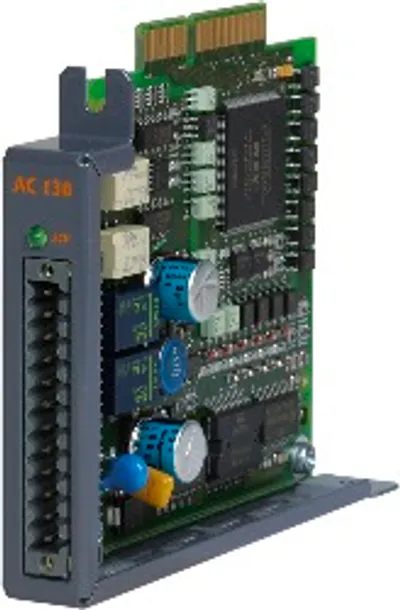

8AC130.60-1	12-pin multipoint connector	LED status indicator (24 V)	No

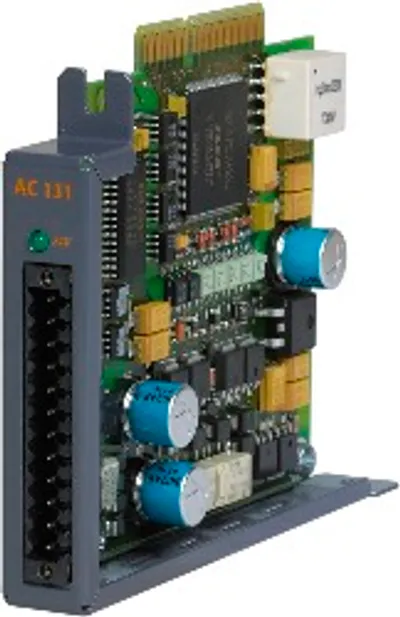

8AC131.60-1	12-pin multipoint connector	24 V LED	—

Certifications – CE	Yes
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOS plug-in module
Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
