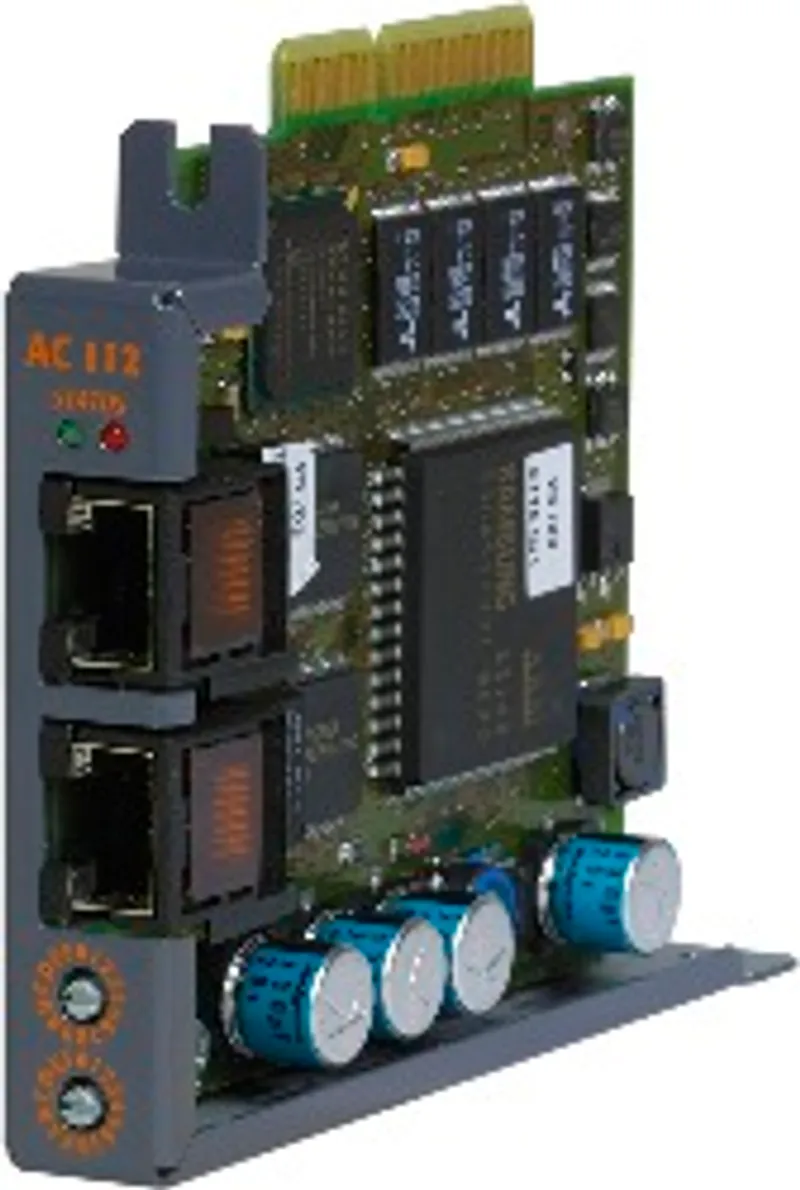

B&R 8AC112.60-1

POWERLINK interface for installation in ACOPOS servo drives

MPN: 8AC112.60-1
Category: Plug-in modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8AC112.60-1?

POWERLINK interface for installation in ACOPOS servo drives

Integrated 2x hub for easy wiring

For communication and configuration of the ACOPOS servo drive for complex and time-critical applications

Node number can be set using switch

ACOPOS plug-in module, POWERLINK interface

Specifications

General information

Support – Dynamic node allocation (DNA)	No
Certifications – CE	Yes
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOS plug-in module
B&R ID code	0x11C9
Slot	Slot 1
Power consumption	Max. 2.5 W

Interfaces

POWERLINK – Hardware	Yes (via ACOPOS servo drive)
POWERLINK – Software	Yes (via ACOPOS servo drive)
POWERLINK – Quantity	1
POWERLINK – Module-side connection	2x RJ45 port
POWERLINK – Status indicators	LED status indicators
POWERLINK – Transfer rate	100 Mbit/s
POWERLINK – 2-port hub	Yes
POWERLINK – Possible station operating modes	Synchronous to the POWERLINK cycle
POWERLINK – Electrical isolation	Yes
POWERLINK – Cabling topology	Star or tree with level 2 hubs
POWERLINK – Maximum number of hub levels	10
POWERLINK – Line length	Max. 100 m between two stations (segment length) (note: The maximum total cable length is 200 m with a cycle time of 400 µs and 10 ACOPOS servo drives.)
POWERLINK – Network-capable	Yes

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Accessories

Optional accessories (7)

X20CA0E61.1000	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 100 m
X20CA0E61.0500	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 50 m
X20CA0E61.0350	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 35 m
X20CA0E61.0300	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 30 m
X20CA0E61.0250	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 25 m
X20CA0E61.0225	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 22.5 m
X20CA0E61.0200	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 20 m

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file STEP 8AC112.60-1ZIP · 404 KB · 1.0 (03/04/2013)

Certificates (3)

8AC112.60-1: frequently asked questions

When can 8AC112.60-1 be shipped?

8AC112.60-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8AC112.60-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8AC112.60-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8AC112.60-1, subject to availability and destination.
