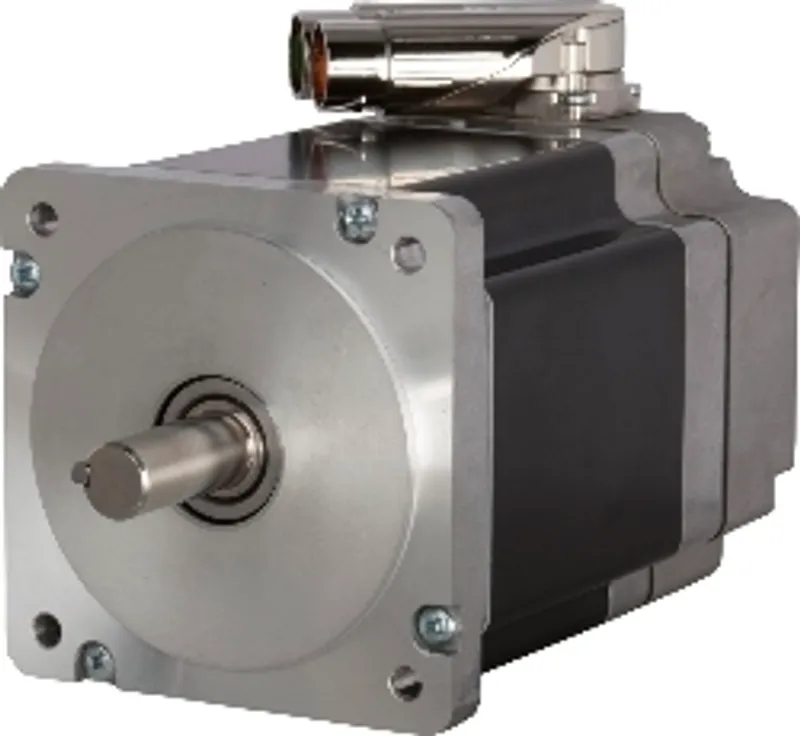

B&R 80MPH4.600S111-02
2-phase hybrid stepper motor, 87.1 mm flange
- MPN
- 80MPH4.600S111-02
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 80MPH4.600S111-02?
2-phase hybrid stepper motor, 87.1 mm flange, length 128.5 mm, HIPERFACE, 6 A parallel, 9.5 Nm holding torque, 6.3 Nm stall torque
Specifications
Short description
| Stepper motor | Stepper motor flange size 87.1 mm, length 128.5 mm, HIPERFACE encoder |
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cURus E360421; Servo and stepper motors - Component |
Specific motor data
| Wiring | Parallel |
| Current | 6 A |
| Resistance/Phase | 0.6 Ω |
| Inductance/Phase | 4.3 mH |
| Stall torque | 6.3 Nm |
| Holding torque | 9.5 Nm |
| Detent torque | <320 mNm |
| Rotor inertia | Approx. 2.61 kgcm 2 |
General motor data
| Stepping angle | 1.8° |
| Max. surface temperature | 95°C |
| Average period of operation between failures | 20,000 hours |
| Shaft type | With key (key according to ANSI 4.1: 0.125" +/-0.002) |
| Insulation class | B (130°C) |
| Insulation resistance | 100 MΩ min. 500 VDC |
| Dielectric resistance | 1776 VAC for 1 minute |
| Driver supply voltage | Max. 80 VDC |
Operating conditions
| Degree of protection per EN 60529 | IP65 (note: From back of flange) |
Ambient conditions
| Temperature – Operation | -20 to 40°C |
| Temperature – Storage | -30 to 85°C |
| Temperature – Transport | -30 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Electrical properties - Encoder
| Sine-Cosine signals – Periods per revolution | 16 |
| Sine-Cosine signals – Peak-to-peak signal voltage | 0.8 to 1.2 Vss |
| Sine-Cosine signals – Signal offset | 2.2 to 2.8 V |
| Digital interface – Address | 64 |
| Digital interface – Total width of position value | 21-bit |
| Digital interface – Width of multi-turn information | 12-bit |
| Digital interface – Width of single-turn information | 9-bit |
| Encoder type | HIPERFACE multi-turn, 4096 revolutions measurable |
| Integral nonlinearity | ±288 angular seconds |
| Supply voltage | 10 VDC |
Mechanical properties
| Max. radial load | 290 N (note: Measured in the middle of the shaft) |
| Max. axial load | 225 N |
| Weight | 3,400 g |
| Length | 128.5 mm |
Accessories
Optional accessories (12)
| 80CM20005.65-01 | Hiperface encoder cables — HIPERFACE encoder cable, length 20 m, 5x 2x 0.14 mm², 2x 0.5 mm², series 615 signal connector on the motor side, 9-pin DSUB connector on th… |
| 80CM15005.65-01 | Hiperface encoder cables — HIPERFACE encoder cable, length 15 m, 5x 2x 0.14 mm², 2x 0.5 mm², series 615 signal connector on the motor side, 9-pin DSUB connector on th… |
| 80CM10005.65-01 | Hiperface encoder cables — HIPERFACE encoder cable, length 10 m, 5x 2x 0.14 mm², 2x 0.5 mm², series 615 signal connector on the motor side, 9-pin DSUB connector on th… |
| 80CM05005.65-01 | Hiperface encoder cables — HIPERFACE encoder cable, length 5 m, 5x 2x 0.14 mm², 2x 0.5 mm², series 615 signal connector on the motor side, 9-pin DSUB connector on the… |
| 80CM02005.65-01 | Hiperface encoder cables — HIPERFACE encoder cable, length 2 m, 5x 2x 0.14 mm², 2x 0.5 mm², series 615 signal connector on the motor side, 9-pin DSUB connector on the… |
| 80CM01005.65-01 | Hiperface encoder cables — HIPERFACE encoder cable, length 1 m, 5x 2x 0.14 mm², 2x 0.5 mm², series 615 signal connector on the motor side, 9-pin DSUB connector on the… |
| 80CM20001.61-01 | Hiperface motor cables — Motor cable, length 20 m, 5x 0.75 mm², for stepper motors with HIPERFACE encoder, series 915 power connector on the motor side, can be used… |
| 80CM15001.61-01 | Hiperface motor cables — Motor cable, length 15 m, 5x 0.75 mm², for stepper motors with HIPERFACE encoder, series 915 power connector on the motor side, can be used… |
| 80CM10001.61-01 | Hiperface motor cables — Motor cable, length 10 m, 5x 0.75 mm², for stepper motors with HIPERFACE encoder, series 915 power connector on the motor side, can be used… |
| 80CM05001.61-01 | Hiperface motor cables — Motor cable, length 5 m, 5x 0.75 mm², for stepper motors with HIPERFACE encoder, series 915 power connector on the motor side, can be used… |
| 80CM02001.61-01 | Hiperface motor cables — Motor cable, length 2 m, 5x 0.75 mm², for stepper motors with HIPERFACE encoder, series 915 power connector on the motor side, can be used… |
| 80CM01001.61-01 | Hiperface motor cables — Motor cable, length 1 m, 5x 0.75 mm², for stepper motors with HIPERFACE encoder, series 915 power connector on the motor side, can be used… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
80MPH4.600S111-02: frequently asked questions
When can 80MPH4.600S111-02 be shipped?
80MPH4.600S111-02 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 80MPH4.600S111-02 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 80MPH4.600S111-02 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 80MPH4.600S111-02, subject to availability and destination.
