B&R 80CM15005.65-01

Name: B&R 80CM15005.65-01
Brand: B&R
SKU: 80CM15005.65-01

MPN: 80CM15005.65-01 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Hiperface encoder cables
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.08 kg

Shipping & availability

When can 80CM15005.65-01 be shipped?

80CM15005.65-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 80CM15005.65-01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 80CM15005.65-01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 80CM15005.65-01, subject to availability and destination.

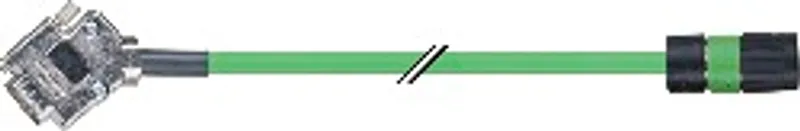

HIPERFACE encoder cable, length 15 m, 5x 2x 0.14 mm², 2x 0.5 mm², series 615 signal connector on the motor side, 9-pin DSUB connector on the drive side, can be used in cable drag chains

Specifications

Cable cross section	5x 2x 0.14 mm² + 1x 2x 0.50 mm²
Durability	Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils
Certification	UL AWM Style 20963, 80°C, 30 V, E63216 and CSA AWM I/II A/B, 90°C, 30 V, FT1 LL46064
Quantity	10
Wire insulation	Special thermoplastic material
Wire colors	Blue, brown, yellow, gray, green, pink, red, black, violet, white
Variant	Tinned copper stranded wire
Cross section	0.14 mm²
Shield	No
Stranding	Green with brown, gray with yellow, white with violet, black with red, pink with blue
Cable stranding	With terminating foil shield
Cable shield	Copper braiding, optical coverage > 85% and foil shield
Material	PUR
Color	RAL 6018
Labeling	B&R 10x0,14+2x0,50 FLEX UL AWM STYLE 20963 80°C 30 V E63216 CSA AWM I/II A/B 90°C 30 V FT1 LL46064
Wire - Wire	1 kV
Wire - Shield	0.8 kV
Supply lines	≤40 Ω/km
Signal line	≤140 ohm/km
Insulation resistance	>200 MΩ/km
Moving	≥60 mm
Static	-40 to 90°C
Length	15 m
Diameter	7.85 mm ±0.2 mm
Single bend	≥24 mm
Acceleration	<60 m/s²
Flex cycles	≥3,000,000
Velocity	≤4 m/s
Weight	0.08 kg/m
