B&R 80CM20005.65-01
HIPERFACE encoder cable, length 20 m, 5x 2x 0.14 mm²
- MPN
- 80CM20005.65-01
- Category
- Hiperface encoder cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 80CM20005.65-01?

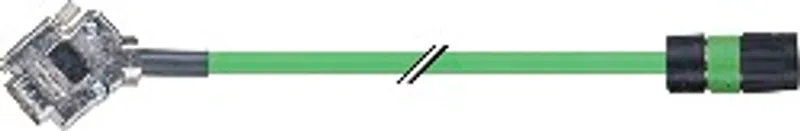

HIPERFACE encoder cable, length 20 m, 5x 2x 0.14 mm², 2x 0.5 mm², series 615 signal connector on the motor side, 9-pin DSUB connector on the drive side, can be used in cable drag chains
Specifications
General information
| Cable cross section | 5x 2x 0.14 mm² + 1x 2x 0.50 mm² |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils |
| Certification | UL AWM Style 20963, 80°C, 30 V, E63216 and CSA AWM I/II A/B, 90°C, 30 V, FT1 LL46064 |
Cable construction
| Supply lines – Quantity | 2 |
| Supply lines – Wire insulation | Special thermoplastic material |
| Supply lines – Wire colors | White/Green, white/red |
| Supply lines – Variant | Tinned copper stranded wire |
| Supply lines – Cross section | 0.5 mm² |
| Supply lines – Shield | No |
| Supply lines – Stranding | White/Red with white/green and filler elements |
| Signal line – Quantity | 10 |
| Signal line – Wire insulation | Special thermoplastic material |
| Signal line – Wire colors | Blue, brown, yellow, gray, green, pink, red, black, violet, white |
| Signal line – Variant | Tinned copper stranded wire |
| Signal line – Cross section | 0.14 mm² |
| Signal line – Shield | No |
| Signal line – Stranding | Green with brown, gray with yellow, white with violet, black with red, pink with blue |
| Outer jacket – Material | PUR |
| Outer jacket – Color | RAL 6018 |
| Outer jacket – Labeling | B&R 10x0,14+2x0,50 FLEX UL AWM STYLE 20963 80°C 30 V E63216 CSA AWM I/II A/B 90°C 30 V FT1 LL46064 |
| Cable stranding | With terminating foil shield |
| Cable shield | Copper braiding, optical coverage > 85% and foil shield |
Electrical properties
| Test voltage – Wire - Wire | 1 kV |
| Test voltage – Wire - Shield | 0.8 kV |
| Conductor resistance – Supply lines | ≤40 Ω/km |
| Conductor resistance – Signal line | ≤140 ohm/km |
| Insulation resistance | >200 MΩ/km |
Ambient conditions
| Temperature – Moving | -10 to 80°C |
| Temperature – Static | -40 to 90°C |
Mechanical properties
| Dimensions – Length | 20 m |
| Dimensions – Diameter | 7.85 mm ±0.2 mm |
| Bend radius – Single bend | ≥24 mm |
| Bend radius – Moving | ≥60 mm |
| Drag chain data – Acceleration | <60 m/s² |
| Drag chain data – Flex cycles | ≥3,000,000 (note: At an ambient temperature of 20°C and bend radius of 65 mm.) |
| Drag chain data – Velocity | ≤4 m/s |
| Weight | 0.08 kg/m |
