B&R 80CM02001.61-01
Motor cable, length 2 m, 5x 0.75 mm²
- MPN
- 80CM02001.61-01
- Category
- Hiperface motor cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 80CM02001.61-01?

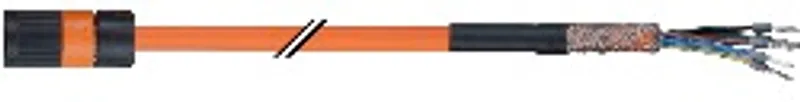

Motor cable, length 2 m, 5x 0.75 mm², for stepper motors with HIPERFACE encoder, series 915 power connector on the motor side, can be used in cable drag chains
Specifications
General information
| Cable cross section | 5x 0.75 mm² |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils |
| Certification | UL AWM Style 20234, 80°C, 1000 V, E63216 and CSA AWM I/II A/B, 90°C, 1000 V, FT2 LL46064 |
Cable construction
| Power lines – Quantity | 5 |
| Power lines – Wire insulation | Special thermoplastic material |
| Power lines – Wire colors | Black, brown, blue, gray, yellow/green |
| Power lines – Variant | Tinned copper stranded wire |
| Power lines – Cross section | 0.75 mm² |
| Power lines – Shield | No |
| Power lines – Stranding | No |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Orange, similar to RAL 2003 flat |
| Outer jacket – Labeling | B&R 5x0,75 FLEX UL AWM STYLE 20234 80°C 1000 V E63216 CSA AWM I/II A/B 90°C 1000 V FT2 LL46064 |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage > 85% and foil shield |
Electrical properties
| Test voltage – Wire - Wire | 3 kV |
| Test voltage – Wire - Shield | 3 kV |
| Conductor resistance – Power lines | ≤29 Ω/km |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting | 13 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct | 11.5 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray | 13.5 A |
| Insulation resistance | >200 MΩ/km |
Ambient conditions
| Temperature – Moving | -10 to 70°C |
| Temperature – Static | -20 to 90°C |
Mechanical properties
| Dimensions – Length | 2 m |
| Dimensions – Diameter | 8.5 mm ±0.3 mm |
| Bend radius – Single bend | >34 mm |
| Bend radius – Moving | ≥85 mm |
| Drag chain data – Acceleration | <60 m/s² |
| Drag chain data – Flex cycles | ≥3,000,000 (note: At an ambient temperature of 20°C and bend radius of 125 mm.) |
| Drag chain data – Velocity | ≤4 m/s |
| Weight | 0.128 kg/m |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (1)
80CM02001.61-01: frequently asked questions
When can 80CM02001.61-01 be shipped?
80CM02001.61-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 80CM02001.61-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 80CM02001.61-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 80CM02001.61-01, subject to availability and destination.
