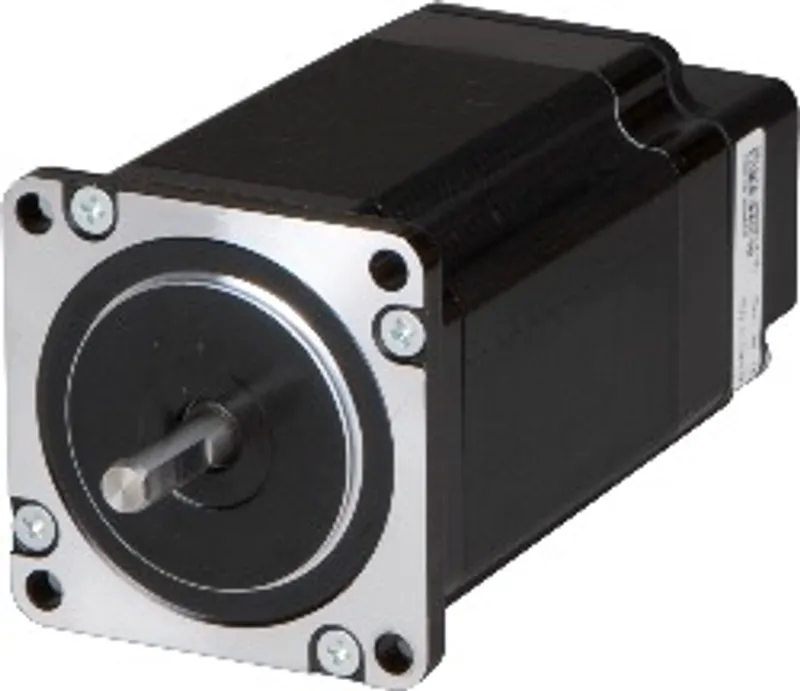

B&R 80MPD5.600S014-01
2-phase hybrid stepper motor, 56.4 mm flange
- MPN
- 80MPD5.600S014-01
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 80MPD5.600S014-01?
2-phase hybrid stepper motor, 56.4 mm flange, length 101.5 mm, ABR 24 VDC, 6 A parallel, 3.0 Nm holding torque, 2.2 Nm stall torque
Specifications
Short description
| Stepper motor | Stepper motor flange size 56.4 mm, length 101.5 mm, incremental encoder |
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
Specific motor data
| Wiring | Parallel |
| Current | 6 A |
| Resistance/Phase | 0.6 Ω |
| Inductance/Phase | 2.2 mH |
| Stall torque | 2.2 Nm |
| Holding torque | 3.0 Nm |
| Detent torque | <90 mNm |
| Rotor inertia | Approx. 470 gcm 2 |
General motor data
| Stepping angle | 1.8° |
| Max. surface temperature | 95°C |
| Average period of operation between failures | 21,000 hours |
| Shaft type | Flat-sided shaft (D-cut) |
| Insulation class | B (130°C) |
| Insulation resistance | 100 MΩ min. 500 VDC |
| Dielectric resistance | 500 VAC for 1 minute |
| Driver supply voltage | Max. 80 VDC |
Operating conditions
| Degree of protection per EN 60529 | IP20 (note: From back of flange) |
Ambient conditions
| Temperature – Operation | -20 to 40°C |
| Temperature – Storage | -30 to 85°C |
| Temperature – Transport | -30 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Electrical properties - Encoder
| Number of outputs | 3; A / B / R |
| Resolution | 1024 increments / 256 positions per rotation |
| Output circuit | Push/Pull level, asymmetrical |
| Output protection | Protection against short circuit |
| Current consumption | Max. 12 mA + Output load |
| Supply voltage | 18 to 30 VDC |
| Max. output current | ±10 mA per output |
Mechanical properties
| Max. radial load | 73.5 N (note: Measured in the middle of the shaft) |
| Max. axial load | The permissible axial load is not permitted to be greater than the motor mass. |
| Weight | 1,140 g |
| Length | 101.5 mm |
