Stepper motors with incremental encoder IP20 Parts

B&R

80MPD1.300S014-01

2-phase hybrid stepper motor, 56.4 mm flange, length 66 mm

B&R

80MPD1.600S014-01

2-phase hybrid stepper motor, 56.4 mm flange, length 66 mm

B&R

80MPD3.300S014-01

2-phase hybrid stepper motor, 56.4 mm flange

B&R

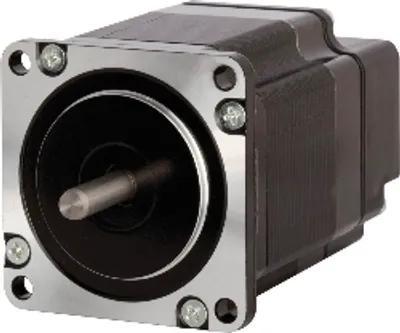

80MPD3.600S014-01

2-phase hybrid stepper motor, 56.4 mm flange

B&R

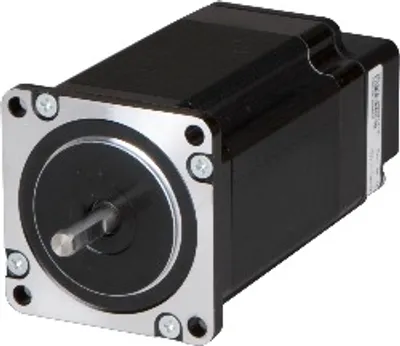

80MPD5.300S014-01

2-phase hybrid stepper motor, 56.4 mm flange

B&R

80MPD5.600S014-01

2-phase hybrid stepper motor, 56.4 mm flange

B&R

80MPH1.300S014-01

2-phase hybrid stepper motor, 87.1 mm flange, length 87 mm

B&R

80MPH1.600S014-01

2-phase hybrid stepper motor, 87.1 mm flange, length 87 mm

B&R

80MPH3.300S014-01

2-phase hybrid stepper motor, 87.1 mm flange, length 119 mm

B&R

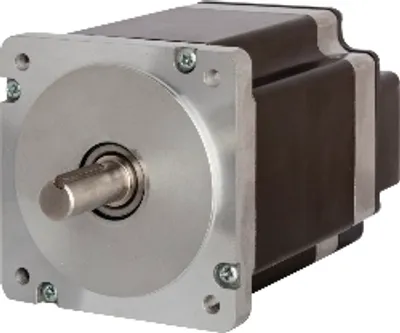

80MPH3.600S014-01

2-phase hybrid stepper motor, 87.1 mm flange, length 119 mm

B&R

80MPH6.300S014-01

2-phase hybrid stepper motor, 87.1 mm flange, length 151 mm

B&R

80MPH6.600S014-01

2-phase hybrid stepper motor, 87.1 mm flange, length 151 mm

B&R

80MPH4.101S014-01

2-phase hybrid stepper motor, 87.1 mm flange, length 119 mm

B&R

80MPH4.300S014-01

2-phase hybrid stepper motor, 87.1 mm flange, length 119 mm

B&R

80MPH4.500S014-01

2-phase hybrid stepper motor, 87.1 mm flange, length 119 mm

B&R

80MPH4.600S014-01

2-phase hybrid stepper motor, 87.1 mm flange, length 119 mm

B&R

80MPH6.101S014-01

2-phase hybrid stepper motor, 87.1 mm flange, length 151 mm

Compare Stepper motors with incremental encoder IP20

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Resistance/Phase	Inductance/Phase	Stall torque	Holding torque	Detent torque
80MPD1.300S014-01	1.2 Ω	3.6 mH	0.8 Nm	1.1 Nm	<30 mNm
80MPD1.600S014-01	0.3 Ω	0.9 mH	0.8 Nm	1.1 Nm	<30 mNm
80MPD3.300S014-01	1.6 Ω	5.2 mH	1.25 Nm	1.8 Nm	<50 mNm
80MPD3.600S014-01	0.4 Ω	1.3 mH	1.25 Nm	1.8 Nm	<50 mNm
80MPD5.300S014-01	2.4 Ω	8.8 mH	2.2 Nm	3.0 Nm	<90 mNm
80MPD5.600S014-01	0.6 Ω	2.2 mH	2.2 Nm	3.0 Nm	<90 mNm
80MPH1.300S014-01	1.7 Ω	12.9 mH	2.9 Nm	4.2 Nm	<160 mNm
80MPH1.600S014-01	0.4 Ω	3.2 mH	2.9 Nm	4.2 Nm	<160 mNm
80MPH3.300S014-01	2.2 Ω	17.3 mH	5.5 Nm	7.8 Nm	<210 mNm
80MPH3.600S014-01	0.6 Ω	4.3 mH	5.5 Nm	7.8 Nm	<210 mNm
80MPH6.300S014-01	2.7 Ω	20.0 mH	9.3 Nm	13.6 Nm	<420 mNm
80MPH6.600S014-01	0.7 Ω	5.0 mH	9.3 Nm	13.6 Nm	<420 mNm
80MPH4.101S014-01	0.2 Ω	1.4 mH	6.3 Nm	9.5 Nm	<320 mNm
80MPH4.300S014-01	2.2 Ω	17.3 mH	6.3 Nm	9.5 Nm	<320 mNm
80MPH4.500S014-01	0.9 Ω	5.6 mH	6.3 Nm	9.5 Nm	<320 mNm
80MPH4.600S014-01	0.6 Ω	4.3 mH	6.3 Nm	9.5 Nm	<320 mNm
80MPH6.101S014-01	0.24 Ω	1.6 mH	9.3 Nm	13.6 Nm	<420 mNm

Common to all listed parts

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Stepping angle	1.8°
Max. surface temperature	95°C
Insulation class	B (130°C)
Insulation resistance	100 MΩ min. 500 VDC
Driver supply voltage	Max. 80 VDC
