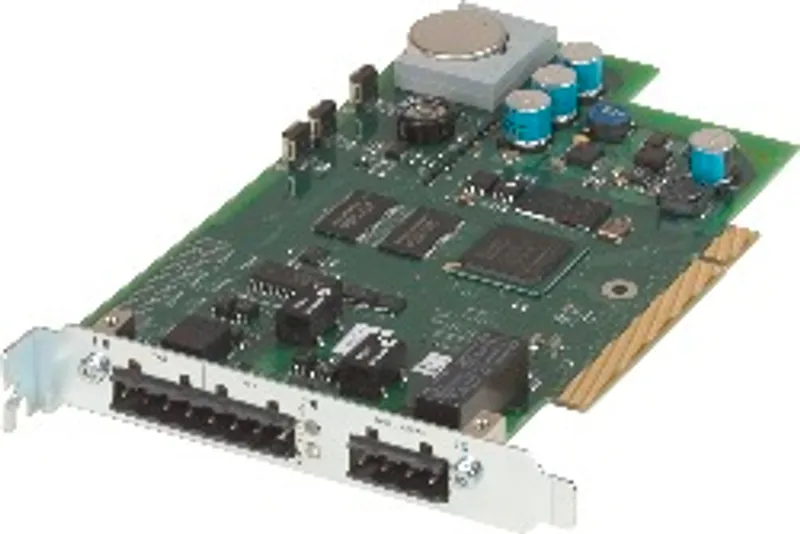

B&R 5LS197.6

Communication module, 1x CAN bus, 1x X2X Link master

MPN: 5LS197.6
Category: PCI communication modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5LS197.6?

X2X Link connection

CAN bus interface

Logic scanner, PCI half-size module, 1 X2X Link master interface, electrically isolated, 1 CAN bus interface, electrically isolated, max. 500 kbit/s, object buffer in transmit and receive direction, 1 MB SRAM (Automation Runtime), order 3x 0TB704.9 terminal blocks separately!

Specifications

Short description

Communication module

1x CAN bus, 1x X2X Link master

General information

Diagnostics – Data transfer	Yes, using LED status indicator and software
Electrical isolation – IF1 - IF2	Yes
Electrical isolation – PC - IFx	Yes
Certifications – CE	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Ready relay	Normally open contact and normally closed contact, max. 30 VDC, max. 6 A
Status indicators	1 LED per interface for transmitting data
Power consumption	2.28 W

Controller

SRAM	1 MB, battery-backed

Interfaces

Interface IF1 – Signal	CAN bus (note: This CAN bus interface can be configured as a CANopen master in Automation Studio 3.0 and later.)
Interface IF1 – Variant	4-pin male multipoint connector
Interface IF1 – Max. distance	1000 m
Interface IF1 – Transfer rate	Max. 500 kbit/s
Interface IF2 – Fieldbus	X2X Link master
Interface IF2 – Variant	4-pin male multipoint connector
Interface IF2 – Distance between 2 stations	Max. 100 m

Operating conditions

Degree of protection per EN 60529

IP20 in installed state

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing

Mechanical properties

Installation in – B&R Automation PC	Yes
Installation in – B&R Panel PC	Yes
Installation in – Desktop PC	Yes
Note	Order 3x 0TB704.9 terminal blocks separately ; Lithium battery included in delivery
Slot	Standard PCI half-size module, plug and play

Accessories

Required accessories (order separately)

0TB704.9

Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.

Optional accessories (3)

4A0006.00-000	Batteries — Lithium battery, 3 V / 950 mAh, button cell
0AC201.91	Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell
0AC913.93	Infrastructure components — Bus adapter, CAN bus, 2 CAN bus interfaces, including 03 m attachment cable (TB704)

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 5LS197.6PDF · 2 MB · 1.00 (06/13/2007) - EN
