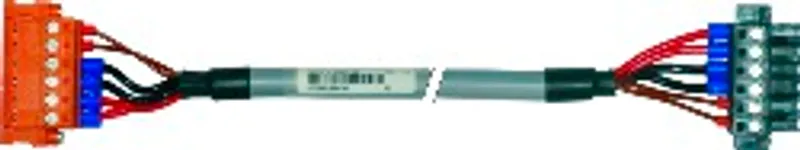

B&R 5CAUPS.0030-00

UPS cable, 3 m, For 5AC600.IUPS-00

MPN: 5CAUPS.0030-00

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5CAUPS.0030-00?

UPS cable - 3 m - For 5AC600.IUPS-00

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment

Cable construction

Outer jacket – Material	Thermoplastic PVC-based material
Outer jacket – Color	Window gray (similar to RAL 7040)
Wire cross section	2x 0.5 mm 2 (20 AWG); 4x 2.5 mm 2 (13 AWG)
Conductor resistance	At 0.5 mm 2 max. 39 Ω/km; At 2.5 mm 2 max. 7.98 Ω/km

Connector

Type	6-pin male multipoint connector clamping yoke screw connection / 6-pin female multipoint connector clamping yoke screw connection

Electrical properties

Test voltage – Wire - Wire	1500 V
Operating voltage	Max. 300 V
Peak operating voltage	Typ. 12 VDC / Max. 15 VDC
Current-carrying capacity	10 A at 20°C

Ambient conditions

Temperature – Moving	-5 to 80°C
Temperature – Static	-30 to 80°C

Mechanical properties

Dimensions – Length	3 m
Dimensions – Diameter	8.5 mm ±0.2 mm
Bend radius – Moving	10x line diameter
Bend radius – Fixed installation	5x line diameter
Weight	Approx. 470 g
