B&R 5CAUPS.0005-00

Name: B&R 5CAUPS.0005-00
Brand: B&R
SKU: 5CAUPS.0005-00

MPN: 5CAUPS.0005-00 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.1 kg

Shipping & availability

When can 5CAUPS.0005-00 be shipped?

5CAUPS.0005-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5CAUPS.0005-00 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5CAUPS.0005-00 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5CAUPS.0005-00, subject to availability and destination.

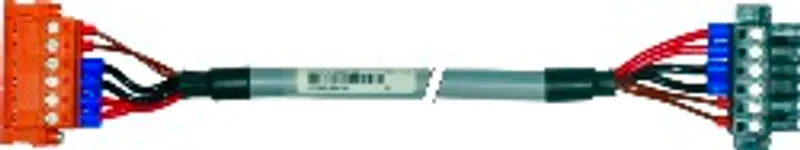

UPS cable 0.5 m, for UPS 5AC600.UPSI-00.

Specifications

CE	Yes
UKCA	Yes
UL	cULus E115267 Industrial control equipment
Wire cross section	2x 0.5 mm2 (20 AWG) 4x 2.5 mm2 (13 AWG)
Conductor resistance	At 0.5 mm2 max. 39 Ω/km At 2.5 mm2 max. 7.98 Ω/km
Material	Thermoplastic PVC-based material
Color	Window gray (similar to RAL 7040)
Type	6-pin male multipoint connector clamping yoke screw connection / 6-pin female multipoint connector clamping yoke screw connection
Operating voltage	Max. 300 V
Peak operating voltage	Typ. 12 VDC / Max. 15 VDC
Wire - Wire	1500 V
Current-carrying capacity	10 A at 20°C
Moving	10x line diameter
Static	-30 to 80°C
Length	0.5 m
Diameter	8.5 mm ±0.2 mm
Fixed installation	5x line diameter
Weight	Approx. 100 g
