B&R 5ACCLI01.SDL0-000

SDL/DVI interface; Compatible with APC2100 and APC2200 Monitor/Panel option is equipped with an interface to…

MPN: 5ACCLI01.SDL0-000
Category: Monitor/Panel options

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5ACCLI01.SDL0-000?

SDL/DVI interface

Compatible with APC2100 and APC2200

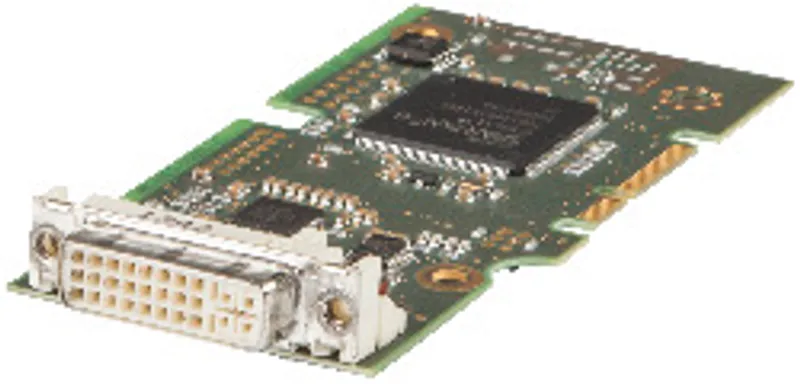

Monitor/Panel option 5ACCLI01.SDL0-000 is equipped with an interface to connect panels via SDL or DVI.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.)
Certifications – CCS	Yes
Certifications – LR	ENV3
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck
B&R ID code	0xE6B6

Interfaces

Panel/Monitor interface – Execution	DVI-I (note: The APC2200 does not have an RGB interface, DVI-D variant.)
Panel/Monitor interface – Type	SDL/DVI/RGB (SDL/DVI/RGB) (note: The APC2200 does not have an RGB interface, DVI-D variant.)

Electrical properties

Power consumption

1 W

Ambient conditions

Temperature – Operation	-20 to 60°C (note: For detailed information, see the temperature tables in the user's manual. DVI and SDL operation is possible down to a minimum of -20°C; RGB operation is only possible down to a minimum of 0°C.)
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Weight

20 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Certificates (2)
