Home / B&R / B&R 5AC600.CFST-00

B&R 5AC600.CFST-00

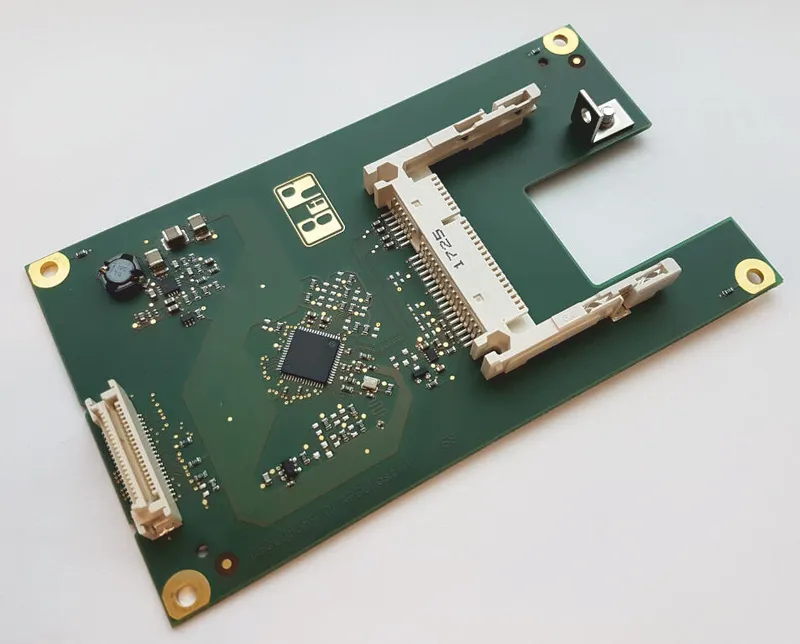

Add-on CFast slot, 1x CFast card, For APC620 and PPC700

MPN: 5AC600.CFST-00

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5AC600.CFST-00?

Add-on CFast slot - 1x CFast card - For APC620 and PPC700

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xEF6C

Interfaces

CFast slot – Quantity	1
CFast slot – Type	SATA II (SATA 3.0 Gbit/s)

Electrical properties

Power consumption

1 W

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Operation	0 to 50°C without fan for the complete system; 0 to 55°C with fan for the complete system (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing
Elevation – Operation	Max. 3000 m

Mechanical properties

Weight

Approx. 100 g

Accessories

Optional accessories (9)

5CFAST.8192-00	CFast cards — 8 GB CFast card; SLC flash; SATA 2.6 compatible; Static wear leveling CFast 8 GB SLC
5CFAST.4096-00	CFast cards — 4 GB CFast card; SLC flash; SATA 2.6 compatible; Static wear leveling CFast 4 GB SLC
5CFAST.256G-10	CFast cards — CFast 256 GB MLC
5CFAST.2048-00	CFast cards — 2 GB CFast card; SLC flash; SATA 2.6 compatible; Static wear leveling CFast 2 GB SLC
5CFAST.128G-10	CFast cards — CFast 128 GB MLC
5CFAST.064G-10	CFast cards — CFast 64 GB MLC
5CFAST.032G-10	CFast cards — CFast 32 GB MLC
5CFAST.032G-00	CFast cards — 32 GB CFast card; SLC flash; SATA 2.6 compatible; Static wear leveling CFast 32 GB SLC
5CFAST.016G-00	CFast cards — 16 GB CFast card; SLC flash; SATA 2.6 compatible; Static wear leveling CFast 16 GB SLC

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheet 5AC600.CFST-00PDF · 702 KB · 1.0 (07/24/2018) - EN
