B&R 5AC600.DVDS-00

The DVD-ROM/CD-RW slide-in drive can be in APC620 and…

MPN: 5AC600.DVDS-00

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5AC600.DVDS-00?

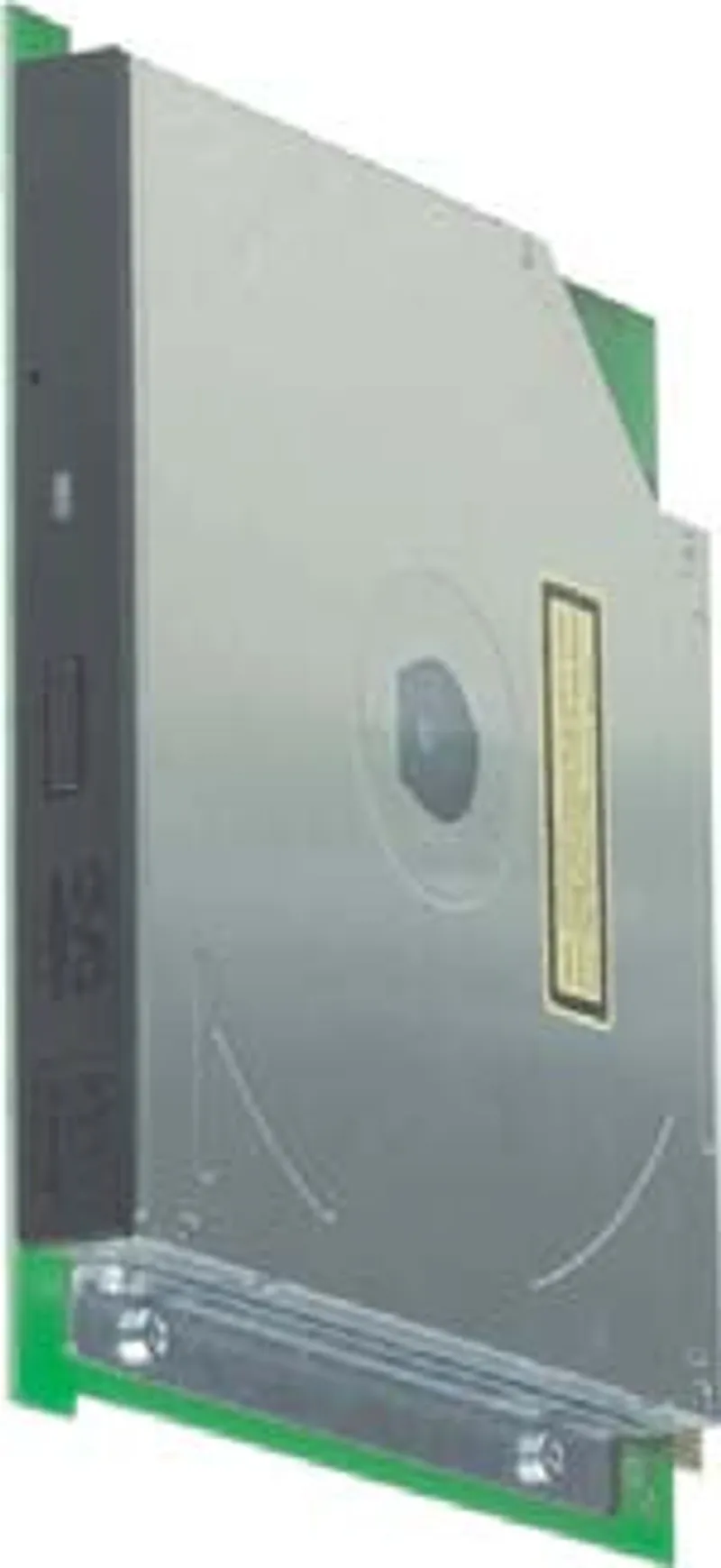

The DVD-ROM/CD-RW slide-in drive can be used in APC620 and PPC700 system units with a slide-in drive slot.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment

CD/DVD drive

Startup time – CD	Max. 19 seconds (from 0 rpm to read operation)
Startup time – DVD	Max. 19 seconds (from 0 rpm to read operation)
Access time – CD	On average 85 ms
Access time – DVD	On average 110 ms
Readable media – CD	CD/CD-ROM (12 cm, 8 cm), CD-R, CD-RW
Readable media – DVD	DVD-ROM, DVD-R, DVD-RW, DVD-RAM
Writable media – CD	CD-R, CD-RW
Read speed – CD	24x
Read speed – DVD	8x
Write speed – CD-R	24x, 16x, 10x and 4x
Write speed – CD-RW	10x and 4x
Write methods – CD	Disk at once, session at once, packet write, track at once
Write methods – DVD	-
Data buffer capacity	2 MB
Data transfer rate	Max. 33.3 MB/s
Speed	Max. 5136 rpm ±1%
Noise level	Approx. 45 dBA at a distance of 50 cm (full read access)
Compatible formats	CD-DA, CD-ROM mode 1 / mode 2; CD-ROM XA mode 2 (form 1, form 2) ; Photo CD (single-/multi-session) ; enhanced CD, CD text ; DVD-ROM, DVD-R, DVD-Video (dual layer) ; DVD-RAM (4.7 GB, 2.6 GB)
Laser class	Class 1 laser
Service life	60,000 POH (power-on hours)
Interface	IDE (ATAPI)

Ambient conditions

Temperature – Operation	5 to 60°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Temperature – Storage	-20 to 60°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Temperature – Transport	-20 to 65°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)
Relative humidity – Operation	8 to 80%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	5 to 95%
Vibration – Operation	At max. 5 to 500 Hz and 0.2 g
Vibration – Storage	At max. 5 to 500 Hz and 2 g
Vibration – Transport	At max. 5 to 500 Hz and 2 g
Shock – Operation	At max. 5 g and 11 ms duration
Shock – Storage	At max. 60 g and 11 ms duration; At max. 200 g and 2 ms duration
Shock – Transport	At max. 60 g and 11 ms duration; At max. 200 g and 2 ms duration

Mechanical properties

Weight

283 g

Accessories

Optional accessories (1)

5SWUTI.0000-00

Miscellaneous — OEM Nero CD-RW Software, only available with a CD writer.
