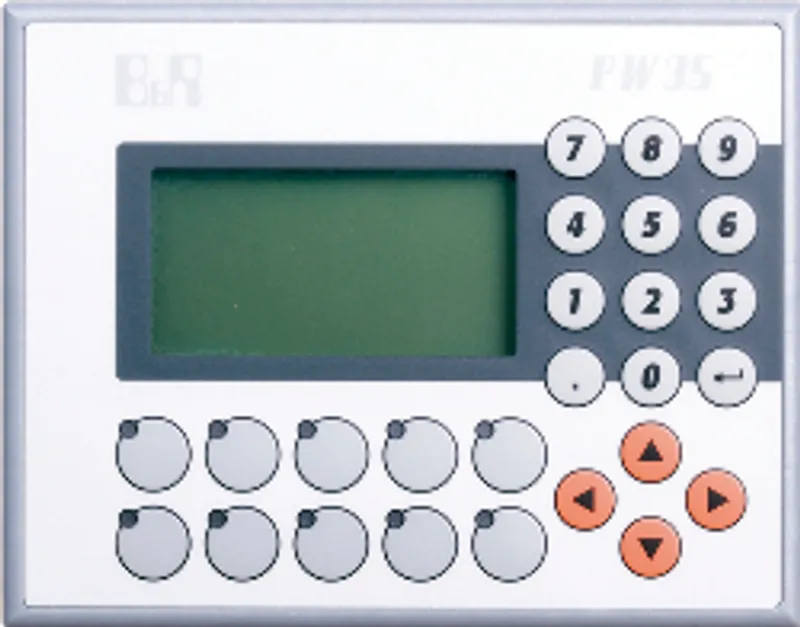

What is the B&R 4PW035.E300-02?

PANELWARE Compact HMI Terminal HMI, LCD display, 160 x 80 pixels, backlight, 26 keys, X2X interface, 24 VDC power supply, IP65 protection (front), order 1x terminal block 0TB1108.8110 separately!

Specifications

General information

Certifications – CE	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E115267; Industrial control equipment
Operation	B&R Visual Components

24 VDC power supply

Input voltage	24 VDC ±25%
Power consumption (typ. / max.)	Max. 6 W

Display

Backlight – Type	LED
Type	Monochrome LCD
Resolution	160 x 80 pixels
Display character set	European/Cyrillic

Interfaces

X2X – Execution	8-pin male multipoint connector
X2X – Distance between 2 stations	100 m
X2X – Electrical isolation	Yes

Keys

System keys	Number block, control keys
Label	10 keys using slide-in labels
Quantity	26 (10 with LED)

Operating conditions

Degree of protection per EN 60529

IP65 (front)

Ambient conditions

Temperature – Operation	0 to 50°C
Temperature – Storage	-20 to 60°C

Mechanical properties

Dimensions – Width	153 mm
Dimensions – Height	120 mm
Dimensions – Depth	46.1 mm
Weight	Approx. 500 g

Accessories

Required accessories (order separately)

0TB1108.8110

Terminal blocks — The single-row 8-pin terminal block TB708/TB1108 is used for making connections on various B&R modules.

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Panelware PW35 User's ManualPDF · 1 MB · 1.30 (04/01/2015) - EN

CAD & dimension drawings
