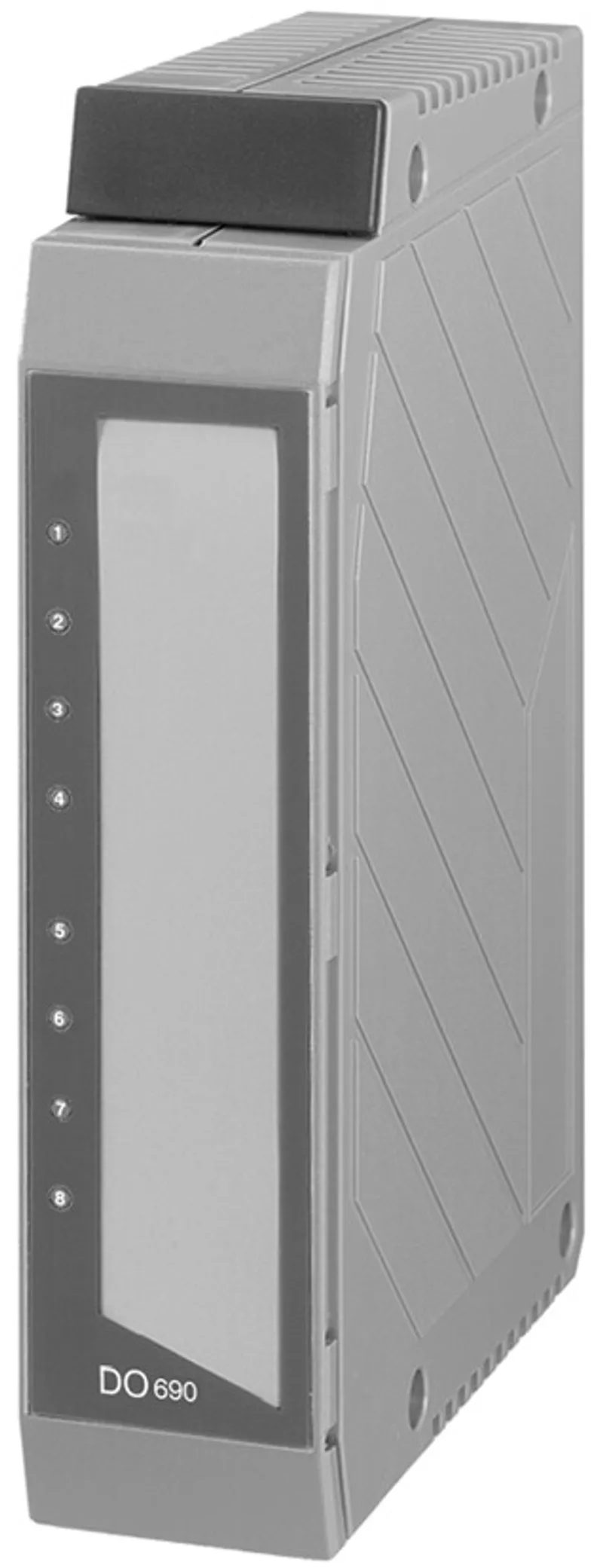

B&R 3DO690.6

I/O module, 8 triac outputs 120 VAC in 2 groups

MPN: 3DO690.6

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 3DO690.6?

2005 digital output module, 8 triac outputs 120 VAC, 1 A, 2 electrically isolated output groups, order 1x terminal block TB170 separately!

Specifications

Short description

I/O module

8 triac outputs 120 VAC in 2 groups

General information

Diagnostics – Outputs	Yes, using LED status indicator
Power consumption – 24 VDC	-
Power consumption – 5 VDC	1.5 W
Power consumption – Total	1.5 W
Power consumption – External	6 W, simultaneity factor = 50%
Electrical isolation – Group - Group	Yes
Electrical isolation – Channel - Channel	No (same group)
Electrical isolation – Channel - PLC	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Status indicators	I/O function per channel

Triac outputs

Variant	Triac
Nominal output current	1.0 A
Group rated voltage	2.0 A
Rated frequency	45 to 63 Hz
Nominal voltage	120 VAC
Sensor power supply	External
Total nominal current	4.0 A

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%

Mechanical properties

Dimensions – Width	System 2005 single-width
Can be installed on – Base unit	Yes
Can be installed on – Expansion unit	Yes
Note	Order 1x terminal block TB170 separately.

Accessories

Required accessories (order separately)

3TB170.91	Terminal blocks — 2005 terminal block, 20-pin, push-in terminal block
3TB170.9	Terminal blocks — 2005 terminal block, 20-pin, screw clamp terminal block

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 3DO690.6PDF · 294 KB · 1.0 (06/08/2004) - EN
