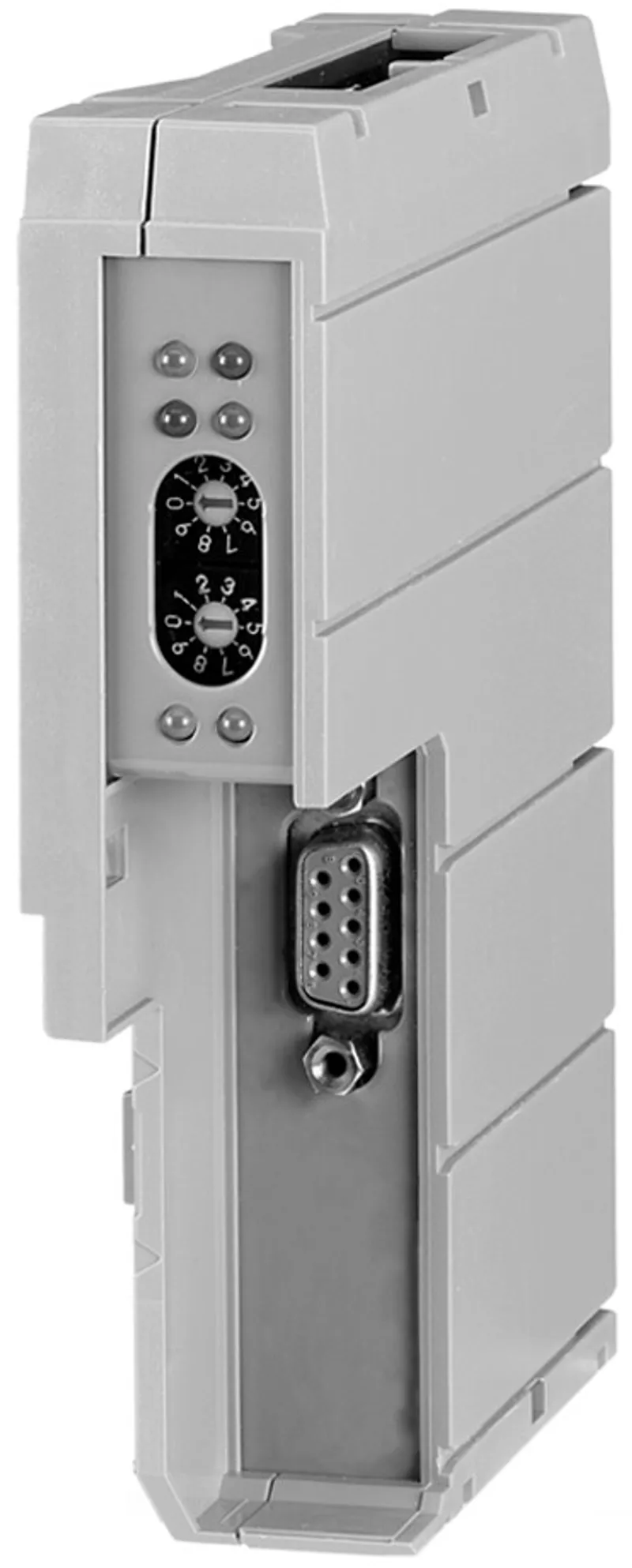

B&R 3EX250.60-1

2005 remote I/O slave controller electrically isolated…

MPN: 3EX250.60-1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 3EX250.60-1?

2005 remote I/O slave controller electrically isolated RS485 interface for coupling to remote I/O bus slot for power supply modules

Specifications

General Information

C-UL-US Listed	In preparation
Slot	Insert for power supply PS465
Power Consumption – 5V	Max. 1.5 W
Power Consumption – Total	Max. 1.5 W
Diagnosis LEDs	Yes
Number Switch	Used to set the slave address

Standard Communication interface

Serial Interface	RS485
Design	9-pin DSUB socket
Electrical Isolation	Yes
Baud Rates	Depends on the distance
100 kBit/s	Max. 1,200 m
181 kBit/s	Max. 1,000 m
500 kBit/s	Max. 400 m
1000 kBit/s	Max. 200 m
2000 kBit/s	Max. 100 m
Remote I/O Bus – Access Procedure	Master-slave principle
Remote I/O Bus – Topology	Physical bus
Remote I/O Bus – Connection to the Bus	Direct
Remote I/O Bus – Transfer Media	Shielded, twisted pair
Remote I/O Bus – Terminating Resistance	External
Remote I/O Bus – Baud Rate	Automatic baud rate recognition

Accessories

Optional accessories (2)

0G1000.00-090	Infrastructure components — The RS485 bus connector is used to connect a controller to a Profibus network or an RS485 network. The terminating resistor is integrated i…
0AC916.9	Infrastructure components — Bus termination, RS485, active for PROFIBUS networks, remote I/O standard top-hat rail mounting supply voltage: 120 / 230 VAC

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 3EX250.60-1PDF · 497 KB · 1.0 (06/08/2004) - EN
