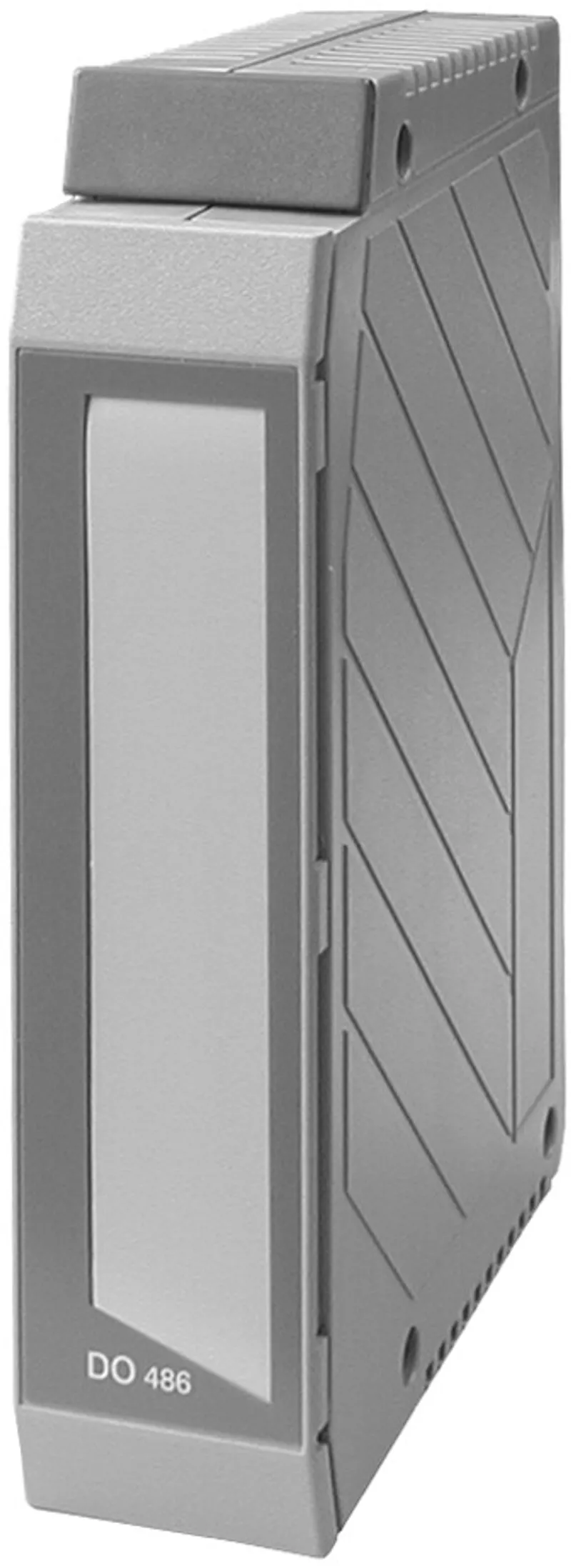

B&R 3DO486.6

I/O module, 16 digital outputs 24 VDC in 2 groups

MPN: 3DO486.6

€528.94excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 3DO486.6?

2005 digital output module, 32 transistor outputs 24 VDC, 0.5 A, 2 electrically isolated output groups, order 2x terminal block TB718 separately!

Specifications

Short description

I/O module

16 digital outputs 24 VDC in 2 groups

General information

Diagnostics – Outputs	Yes, using LED status indicator
Diagnostics – Operating state of outputs	Yes, using LED status indicator
Power consumption – 24 VDC	-
Power consumption – 5 VDC	1.0 W
Power consumption – Total	1.0 W
Power consumption – External 24 V	4.0 W
Electrical isolation – Group - Group	Yes
Electrical isolation – Channel - Channel	No (same group)
Electrical isolation – Channel - PLC	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Status indicators	I/O function per channel, operating state of the outputs

Digital outputs

Nominal voltage	24 VDC
Nominal output current	0.5 A
Total nominal current	8.0 A
Output circuit	Source
Output protection	Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply
Group rated voltage	4.0 A

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%

Mechanical properties

Dimensions – Width	System 2005 single-width
Can be installed on – Base unit	Yes
Can be installed on – Expansion unit	Yes
Note	Order 1x terminal block TB170 separately.

Accessories

Required accessories (order separately)

7TB718.91	Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…
7TB718.9	Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 3DO486.6PDF · 1 MB · 1.0 (06/08/2004) - EN
