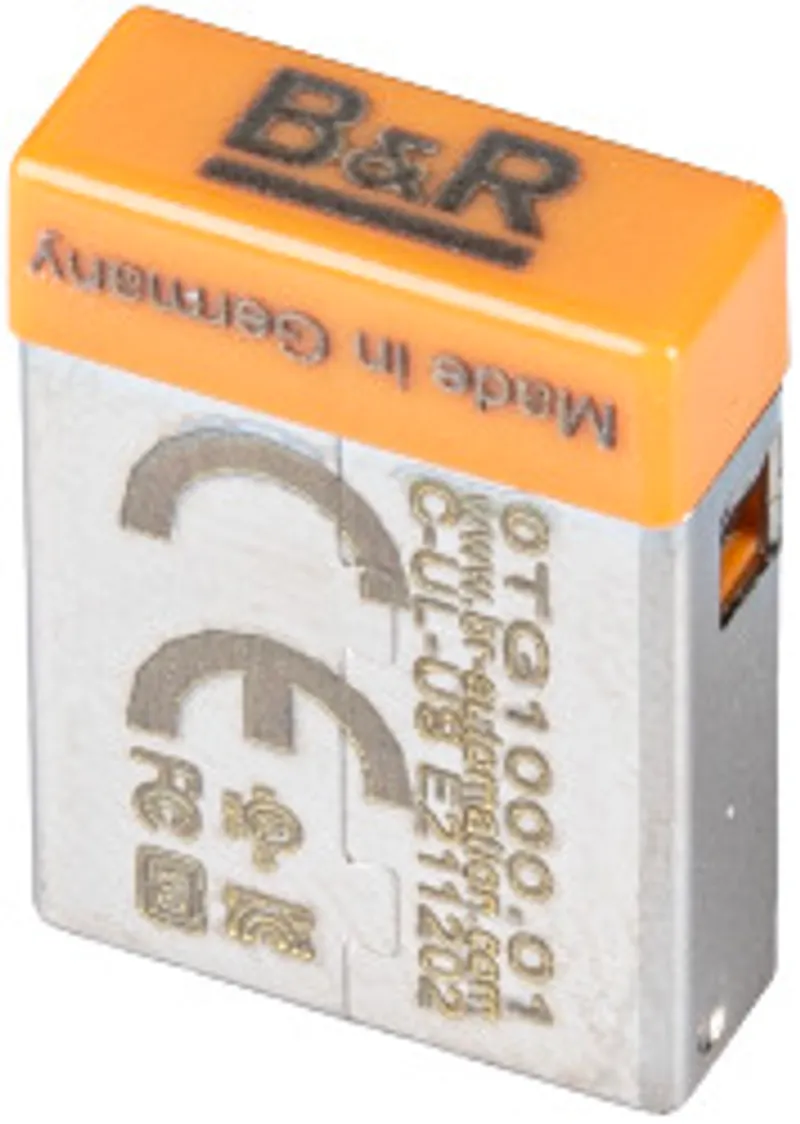

B&R 0TG1000.01
Accessories, technology Guard for license management
- MPN
- 0TG1000.01
- Category
- Technology Guard
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 0TG1000.01?
Technology Guard (MSD)
Specifications
Short description
| Accessories | Technology Guard for B&R license management |
General information
| Application memory – Size | 241 bytes customized data |
| Application memory – Operation | Via library AsGuard |
| Application memory – Guaranteed erase/write cycles | Up to 10 million updates |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV3 |
| Certifications – ABS | Yes |
| Certifications – BV | EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck |
| Note | Manufacturer ID: 0x064F; Product ID: 0x03E9 |
| Connection | High-speed USB 2.0 certified, 1.1 compatible |
| Coding | 128-bit AES, SHA-256, 2048-bit RSA, 224-bit ECC |
| Data retention | 10 years at room temperature |
| Data reliability | Licenses: Up to 10 million updates |
| MTBF | >3 million hours |
| Power supply | 5 V |
| Power consumption | <20 mA (LEDs off); <60 mA (both LEDs on) |
Ambient conditions
| Temperature – Operation | -25 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
Mechanical properties
| Dimensions – Width | 12 mm |
| Dimensions – Length | 16.7 mm |
| Dimensions – Height | 4.5 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
0TG1000.01: frequently asked questions
When can 0TG1000.01 be shipped?
0TG1000.01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0TG1000.01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0TG1000.01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TG1000.01, subject to availability and destination.
