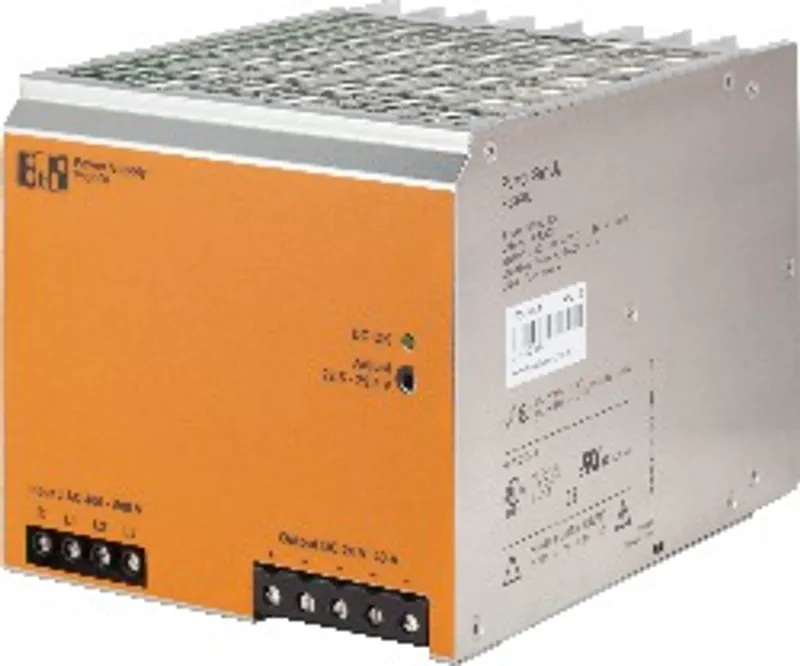

B&R 0PS3400.1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Three-phase power supplies |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 3200 kg |
Shipping & availability
When can 0PS3400.1 be shipped?
0PS3400.1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0PS3400.1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0PS3400.1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0PS3400.1, subject to availability and destination.
400 to 500 VAC wide-range inputReliable supply even if one phase briefly fails in 3-phase operationHigh dielectric strengthCan be connected in parallel for increased capacity and redundancyReliable operation due to long power failure bypass function under full load and high MTBF (>500,000 h)International certification packageWide temperature range from -25 to 70°CClosed metal housing 24 VDC power supply, 3-phase, 40 A, input 400 to 500 VAC, wide range, top-hat rail installation
Specifications
Specifications
| Status display | Green LED (DC OK), threshold value Uout = 21.5 V |
| Input - Output | 4 kV AC (type test) 2 kV AC (routine test) |
| Input - Ground | 2 kV AC (type test) 2 kV AC (routine test) |
| Output - Ground | 500 VDC (routine test) |
| Connection type | Screw terminal |
| Wire end sleeves | Flexible cables require wire end sleeves in order to fulfill EN 62368 / UL 60950 |
| Flexible | 0.5 to 10 mm² / 8 to 6 AWG |
| Inflexible | 0.5 to 16 mm² / 8 to 6 AWG |
| Wire stripping length | 8 mm (input) 10 mm (output) |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Evaluation ongoing |
| UL | cULus E123528 Industrial control equipment |
| Nominal input voltage | 2/3x 400 to 500 VAC |
| Input voltage | 3x 320 to 575 VAC, 45 to 65 Hz 2x 360 to 575 VAC, 45 to 65 Hz |
| Input current | 3x 2.0 A (400 VAC) 3x 1.6 A (480 VAC) |
| Inrush current limiting | <20 A |
| I2t | 1.3 A2s |
| Power failure bypass | >16 ms (400 VAC) >20 ms (480 VAC) |
| Switch-on time | <1 s (typical) |
| Power factor (cos φ) | 0.76 |
| Leakage current to PE | <3.5 mA |
| Protective circuit | Transient surge protection with varistor |
| Required line fuse for device and line protection | 2/3x 10 A (characteristic B) 2/3x 16 A (characteristic B) |
| Nominal voltage | 24 VDC ±1% |
| Output power | 960 W |
| Setting range for output voltage | 22.5 to 29.5 VDC |
| -25 to 55°C | 40.0 A |
| >55°C | Derating: 2.5% per °C |
| Current limiting | Approx. 48 A |
| Control deviation | <1% (static load change 10 to 90%) <2% (dynamic load change 10 to 90%) <0.1% (input voltage change ±10%) |
| Rise time | <2 ms (UOUT (10 to 90%)) |
| Residual ripple | <20 mVSS |
| Switching peaks | <40 mVSS |
| Can be connected in parallel | Yes, to establish redundancy and increase capacity |
| Can be connected in series | No |
| Max. capacitive load | Unlimited |
| Protection against internal overvoltages | Yes, limited to <35 VDC |
| Protective functions | Output protected against continuous short circuit, open circuit and overload |
| Power back immunity | Max. 35 VDC |
| Output noise suppression | Device complies with EN 55011 (class B) |
| Efficiency | >91.5% |
| MTBF | >500,000 h, per IEC 61709 (SN 29500) |
| Rated load | 87 W |
| No-load operation | 11 W |
| Horizontal | Yes |
| Vertical | No |
| Maximum | 4000 m |
| Ventilation/Cooling | Normal convection, no fan required |
| Degree of protection per EN 60529 | IP20 |
| Protection class | I, with PE connection |
| Operation | 15 g in each direction, per IEC 60068-2-27 |
| Storage | -40 to 85°C |
| Transport | -40 to 85°C |
| Pollution degree | 2, per EN 50178 |
| Climate category | 3K3, per EN 60721 |
| Material | Steel sheet, galvanized Side panels: Aluminum |
| Installation | Easy top-hat rail installation (NS 35 rails, EN 60715) |
| Width | 139 mm |
| Height | 130 mm |
| Depth | 190 mm |
| Weight | 3200 g |
