What is the B&R 0PS3200.3?
Minimum space requirement in the control cabinet due to a thin design
Robust and reliable thanks to dynamic boost with a strong output characteristic curve for starting heavy loads
Optical and preventive function monitoring with three-color LED and dry switching contact
Easy handling due to push-in connections, label fields, wire stripping mark and tamper-resistant setup
Can be connected in parallel for increased power and redundancy
Temperature range: -25°C to +70°C
Worldwide use thanks to AC and DC wide-range input
International certification package

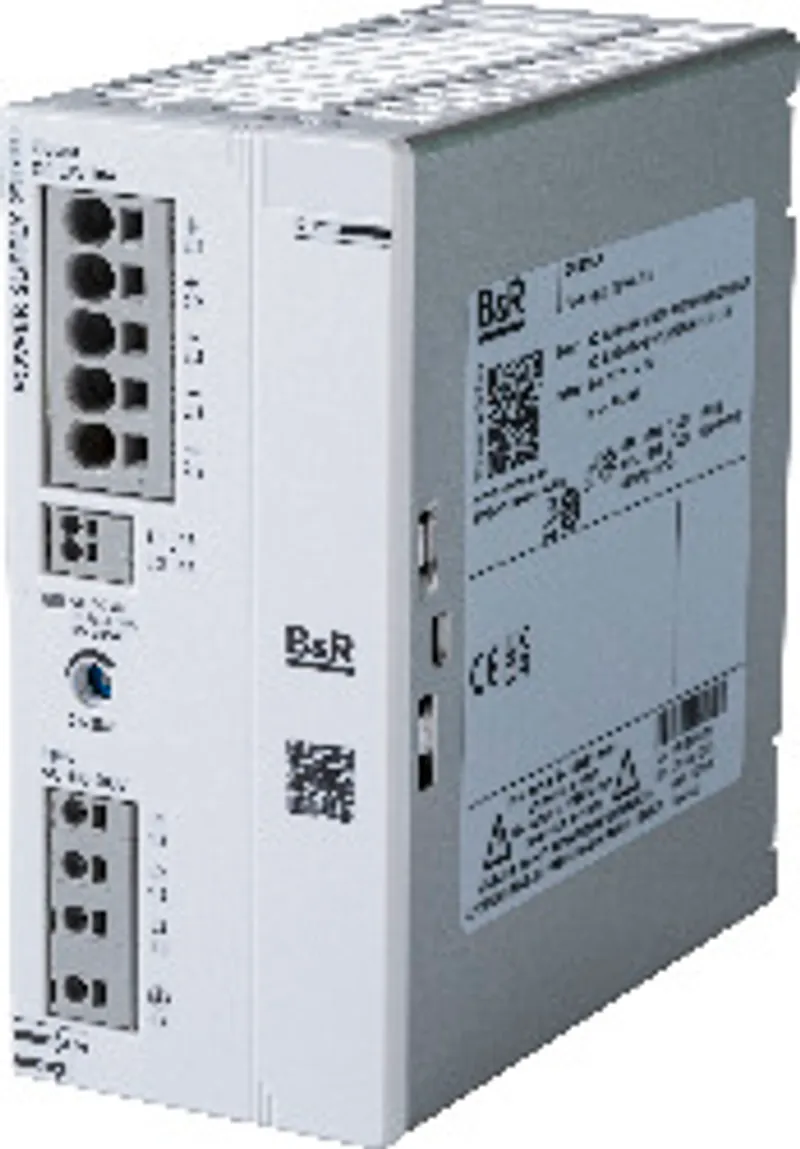

24 VDC power supply unit, 3-phase, 20 A, input 400 to 500 VAC, wide range, thin design, top-hat rail installation
Specifications
General information
| Insulation voltages – Input - Output | 6 kV AC (type test); 3.1 kV DC (routine test) |
| Insulation voltages – Input - Ground | 4 kV AC (type test); 3.1 kV DC (routine test) |
| Insulation voltages – Input - Signal | 6 kV AC (type test); 3.1 kV DC (routine test) |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E534663; Industrial control equipment |
| Status display | Green LED (DC OK), threshold value U out > 21 V |
| Active DC OK switch output | See section "Dry switching contact". |
| Connection type | Push-in connectionCable data"."> (note: For details, see section) |
Input
| Nominal input voltage | 400 to 500 VAC |
| Input voltage | 3x 400 to 500 VAC -20% to +10%; 2x 400 to 500 VAC ±10% |
| Network type | Star network (TN, TT, IT(PE)) |
| Frequency | 50 to 60 Hz ±10% |
| Inrush current | <13 A (note: Current flow into the filter capacitors during the first microseconds is excluded.) |
| Current consumption | 3x 0.77 A / 3x 0.63 A (3x 400/500 VAC); 2x 1.37 A / 2x 1.13 A (2x 400/500 VAC) |
| I 2t | <0.33 A 2s |
| Power failure bypass | Typ. 28 ms (3x 400 VAC) ; Typ. 28 ms (3x 480 VAC) |
| Leakage current to PE | <3.5 mA |
| Protective circuit | Varistor transient protection |
| Internal fuse | 3.15 A |
| Required line fuse for device and line protection | See section "Input protection". |
Output
| Nominal voltage | 24 VDC |
| Output power | 480 W / Max. 720 W (5 s) (note: Specification of nominal value (P N ) and maximum boost value (P Dyn.Boost )) |
| Output voltage | 24 to 28 VDC |
| Output current | 20 A / Max. 30 A (5 s) (note: Specification of nominal value (I N ) and maximum boost value (I Dyn.Boost )) |
| Setting range for output voltage | 24 to 28 VDC |
| Control deviation | <0.1% (input voltage change ±10%); <3% (load change, dynamic); <1% (load change, static) |
| Rise time | ≤1 s (U OUT (10 to 90%)) |
| Residual ripple | Typ. 15 mV SS |
| Can be connected in parallel | Yes, for increased efficiency and redundancy with diode |
| Can be connected in series | Yes, for increased output voltage (observe SELV limit) |
| Overvoltage protection | ≤35 VDC (on the output (OVP)) |
| Protective functions | Short-circuit protection |
| Feedback voltage resistance | ≤35 VDC |
Efficiency, reliability
| Power dissipation – Rated load | <26.08 W (3x 400 VAC); <27.35 W (3x 480 VAC) |
| Power dissipation – No-load operation | <3 W (3x 400 VAC); <3.1 W (3x 480 VAC) |
| Efficiency | Typ. 94.53% (3x 400 VAC); Typ. 94.58% (3x 480 VAC) |
| MTBF | 3x 480 VAC / >1,100,000 h (25°C); 3x 480 VAC / >600,000 h (40°C); 3x 480 VAC / >230,000 h (60°C) (note: Per IEC 61709, SN 29500) |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | No |
| Installation elevation above sea level – Maximum | 5000 m |
| Flammability class | V0 (note: Per UL 94, housing and terminals) |
| Ventilation/Cooling | Normal convection, no fan required |
| Degree of protection per EN 60529 | IP20 |
| Protection class | I |
Ambient conditions
| Temperature – Operation | -25 to 70°C |
| Temperature – Derating | See section "Derating". |
| Temperature – Starting temperature | -40°C (note: Minimum permissible ambient temperature in a voltage-free state at the time the power supply unit is switched on. During operation, the conditions according to the operating temperature continue to apply.) |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | Max. 95%, non-condensing |
| Vibration – Operation | 10 to 50 Hz, amplitude ±0.2 mm; 50 to 150 Hz, 2.3 g, 90 min, per IEC 60068-2-6 |
| Shock – Operation | 18 ms, 30 g, in each direction, per IEC 60068-2-27 |
| Pollution degree | 2 |
| Climate category | 3K3, per EN 60721 |
| Overvoltage category | III (≤2000 m) / II (≤5000 m), per EN 61010-1 ; III (≤2000 m) / II (≤5000 m), per EN 61010-2-201 |
Mechanical properties
| Housing – Material | Aluminum sheet, plastic cover PA |
| Housing – Coating | No protective coating |
| Dimensions – Width | 60 mm |
| Dimensions – Height | 135 mm |
| Dimensions – Depth | 132 mm |
| Installation | Easy top-hat rail installation (NS 35 rails, EN 60715) |
| Weight | 930 g |
