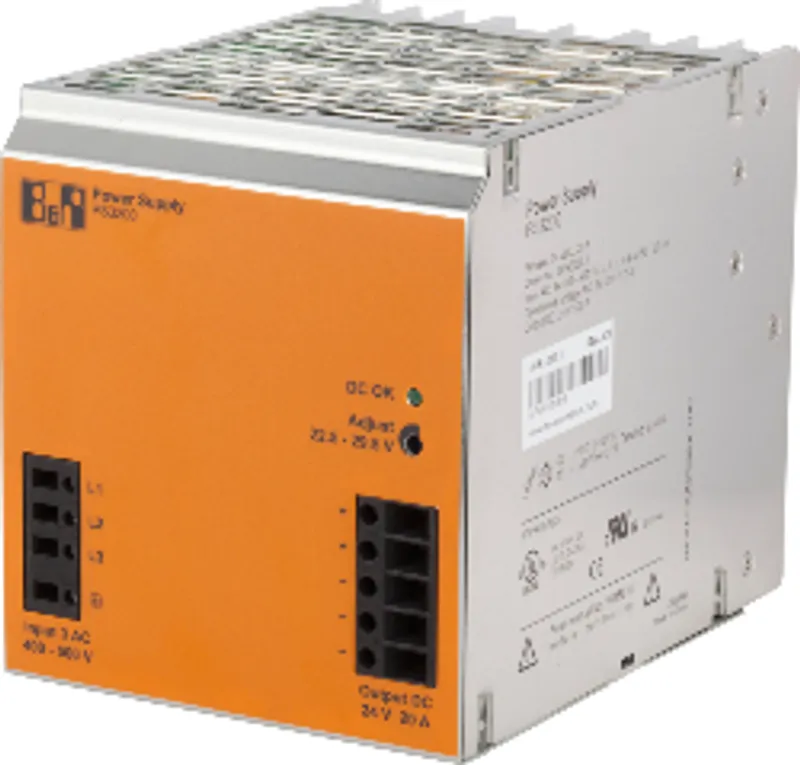

B&R 0PS3200.1
400 to 500 VAC wide-range input
- MPN
- 0PS3200.1
- Category
- Three-phase power supplies
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 0PS3200.1?
400 to 500 VAC wide-range input
Reliable supply even if one phase briefly fails in 3-phase operation
High dielectric strength
Can be connected in parallel for increased capacity and redundancy
Reliable operation due to long power failure bypass function under full load and high MTBF (>500,000 h)
International certification package
Wide temperature range from -25 to 70°C
Closed metal housing
24 VDC power supply, 3-phase, 20 A, input 400 to 500 VAC, wide range, top-hat rail installation
Specifications
General information
| Insulation voltages – Input - Output | 4 kV AC (type test); 2 kV AC (routine test) |
| Insulation voltages – Input - Ground | 2 kV AC (type test); 2 kV AC (routine test) |
| Insulation voltages – Output - Ground | 500 VDC (routine test) |
| Connection cross section – Wire end sleeves | Flexible cables require wire end sleeves in order to fulfill EN 62368 / UL 60950 |
| Connection cross section – Flexible | 0.2 to 2.5 mm² / 24 to 14 AWG |
| Connection cross section – Inflexible | 0.2 to 2.5 mm² / 24 to 14 AWG |
| Connection cross section – Wire end sleeves | Flexible cables require wire end sleeves in order to fulfill EN 62368 / UL 60950 |
| Connection cross section – Flexible | 0.5 to 4 mm² / 12 to 10 AWG |
| Connection cross section – Inflexible | 0.5 to 6 mm² / 12 to 10 AWG |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E123528; Industrial control equipment |
| Status display | Green LED (DC OK), threshold value U out = 21.5 V |
| Connection type | Screw terminal |
| Wire stripping length | 9 mm (input); 14 mm (output) |
Input
| Nominal input voltage | 2/3x 400 to 500 VAC |
| Input voltage | 3x 320 to 575 VAC, 45 to 65 Hz; 2x 360 to 575 VAC, 45 to 65 Hz |
| Input current | 3x 1.1 A (400 VAC) ; 3x 0.8 A (480 VAC) |
| Inrush current limiting | <15 A |
| I 2t | 0.5 A 2s |
| Power failure bypass | >17 ms (400 VAC); >20 ms (480 VAC) |
| Switch-on time | <1 s (typical) |
| Power factor (cos φ) | 0.67 |
| Leakage current to PE | <3.5 mA |
| Protective circuit | Transient surge protection with varistor |
| Required line fuse for device and line protection | 2/3x 6 A (characteristic B) ; 2/3x 10 A (characteristic B) ; 2/3x 16 A (characteristic B) |
Output
| Output current – -25 to 55°C | 20.0 A |
| Output current – >55°C | Derating: 2.5% per °C |
| Nominal voltage | 24 VDC ±1% |
| Output power | 480 W |
| Setting range for output voltage | 22.5 to 29.5 VDC |
| Current limiting | Approx. 25 A |
| Control deviation | <1% (static load change 10 to 90%); <2% (dynamic load change 10 to 90%); <0.1% (input voltage change ±10%) |
| Rise time | <2 ms (U OUT (10 to 90%)) |
| Residual ripple | <10 mV SS |
| Switching peaks | <50 mV SS |
| Can be connected in parallel | Yes, to establish redundancy and increase capacity |
| Can be connected in series | No |
| Max. capacitive load | Unlimited |
| Protection against internal overvoltages | Yes, limited to <35 VDC |
| Protective functions | Output protected against continuous short circuit, open circuit and overload |
| Power back immunity | Max. 35 VDC |
| Output noise suppression | Device complies with EN 55011 (class B) |
Efficiency, reliability
| Power dissipation – Rated load | Max. 48 W |
| Power dissipation – No-load operation | Max. 6 W |
| Efficiency | >91% |
| MTBF | >500,000 h, per IEC 61709 (SN 29500) |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | No |
| Installation elevation above sea level – Maximum | 4000 m |
| Ventilation/Cooling | Normal convection, no fan required |
| Degree of protection per EN 60529 | IP20 |
| Protection class | I, with PE connection |
Ambient conditions
| Temperature – Operation | -25 to 70°C (>55°C derating) |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | Max. 95%, non-condensing |
| Vibration – Operation | <15 Hz, amplitude ±2.5 mm, per IEC 60068-2-6 ; 15 to 150 Hz, 2.3 g, 90 min |
| Shock – Operation | 30 g in each direction, per IEC 60068-2-27 |
| Pollution degree | 2, per EN 50178 |
| Climate category | 3K3, per EN 60721 |
Mechanical properties
| Housing – Material | Steel sheet, galvanized; Side panels: Aluminum |
| Dimensions – Width | 115 mm |
| Dimensions – Height | 130 mm |
| Dimensions – Depth | 152.5 mm |
| Installation | Easy top-hat rail installation (NS 35 rails, EN 60715) |
| Weight | 2000 g |
