Three-phase power supplies Parts
Compare Three-phase power supplies
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | I 2t | Residual ripple | Dimensions – Width | Dimensions – Depth | Weight |
|---|---|---|---|---|---|

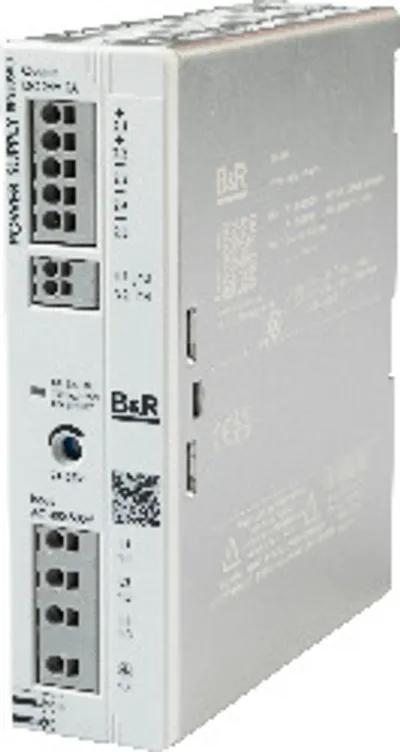

| 0PS3050.3 | <0.2 A 2s | Typ. 10 mV SS | 35 mm | 120 mm | 472 g |

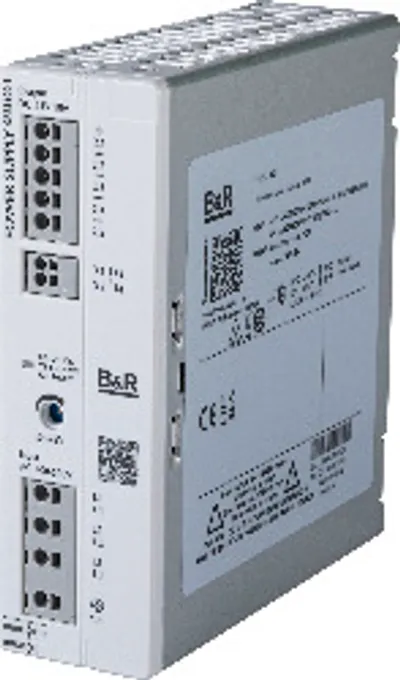

| 0PS3100.3 | <0.25 A 2s | Typ. 10 mV SS | 40 mm | 132 mm | 700 g |

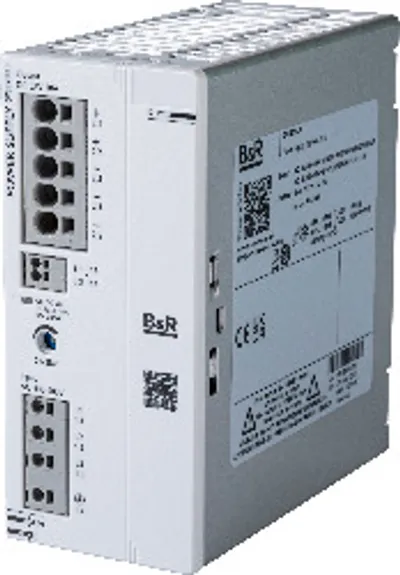

| 0PS3200.3 | <0.33 A 2s | Typ. 15 mV SS | 60 mm | 132 mm | 930 g |

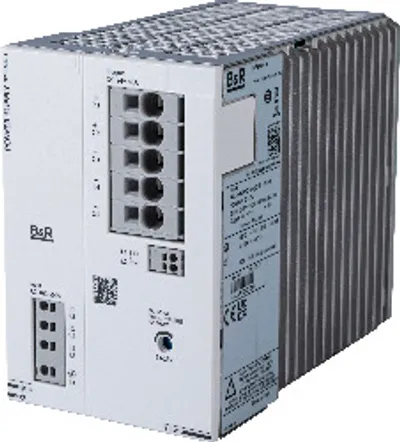

| 0PS3400.3 | <0.77 A 2s | Typ. 13 mV SS | 90 mm | 167 mm | 1960 g |

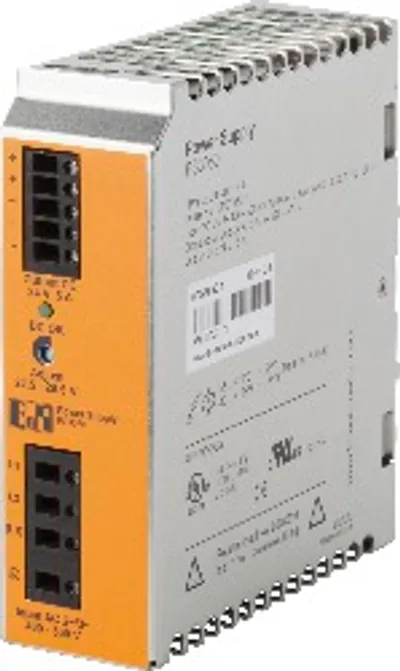

| 0PS3050.1 | 0.2 A 2s | <30 mV SS | 40 mm | 115 mm | 600 g |

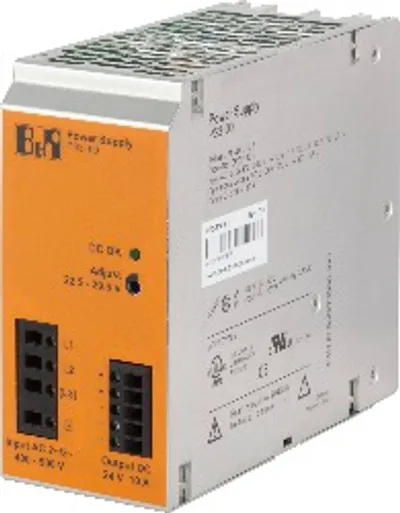

| 0PS3100.1 | 0.2 A 2s | <10 mV SS | 60 mm | 152.5 mm | 1100 g |

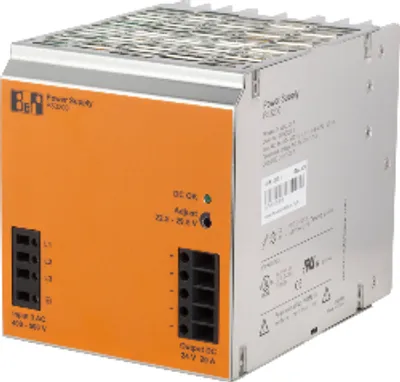

| 0PS3200.1 | 0.5 A 2s | <10 mV SS | 115 mm | 152.5 mm | 2000 g |

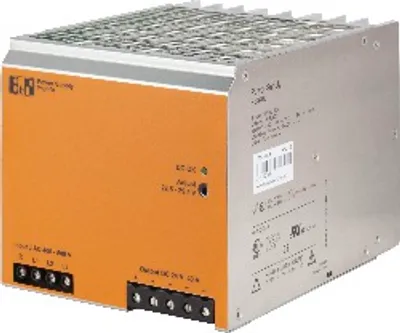

| 0PS3400.1 | 1.3 A 2s | <20 mV SS | 139 mm | 190 mm | 3200 g |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Leakage current to PE | <3.5 mA |
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | No |
| Ventilation/Cooling | Normal convection, no fan required |
| Degree of protection per EN 60529 | IP20 |
| Temperature – Storage | -40 to 85°C |
