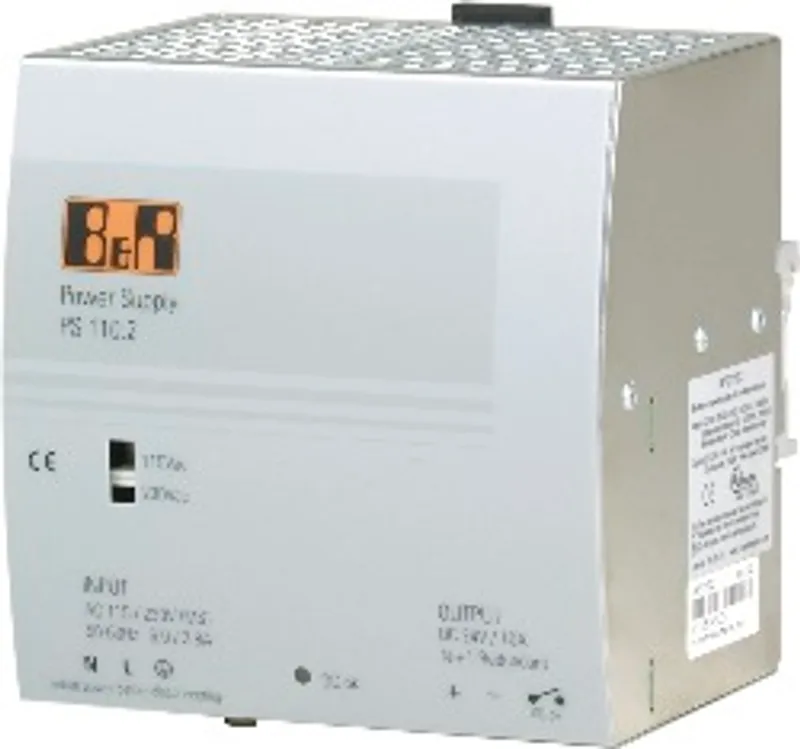

B&R 0PS110.2
24 VDC power supply unit, 1-phase, 10 A
- MPN
- 0PS110.2
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 0PS110.2?
24 VDC power supply unit, 1-phase, 10 A, redundant though parallel operation, input 115/230 VAC, manual select, top-hat rail installation
Specifications
General information
| Status display | Green LED on front |
| Terminals | Stable connectors |
| RDY relay contact | Normally open contact |
Terminal block
| Connection cross section – Flexible | 0.2 to 2.5 mm² / 22 to 12 AWG |
| Connection cross section – Inflexible | 0.2 to 2.5 mm² / 22 to 12 AWG |
Input
| Input voltage | AC 85-132 / 176-264 V (switchable), 47-63 Hz ; DC 240-375 V |
| Input current | <6 A (switch position 115 V) <BR/><2.8 A (switch position 230 V) |
| External fuse protection | Not required, device equipped with internal fuse ; Recommendation: Fuse the power supply cable (circuit breaker). |
| Transient immunity | Transient-proof per VDE 0160 / W2 |
Output (including logic)
| Output noise suppression | Device complies with EN 61000-6-3 (class B) |
| Output power | 240 W |
| Nominal voltage | 24 VDC |
| Protection functions | Output is short-circuit, overload- and no-load proof. |
| Permissible output load | 10 A ( TU = 0 to 60°C) / 12 A ( TU = 0 to 45°C) |
| Overvoltage protection | Typ. 35 V |
Efficiency, reliability
| Efficiency | Typ. 89% (230 VAC, 24 V / 10 A) |
| MTBF | 390,000 h |
| Losses | Typ. 26.7 W (230 VAC, 24 V / 10 A) |
Ambient conditions
| Temperature – Operation | 0 to 70°C |
| Temperature – Storage | -25 to 85°C |
| Relative humidity – Operation | Max. 95% |
Mechanical properties
| Dimensions – Width | 120 mm |
| Dimensions – Height | 124 mm |
| Dimensions – Depth | 102 mm (plus top-hat rail) |
| Installation | Easy snap-on mounting onto the top-hat rail |
| Weight | 980 g |
| Ventilation/Cooling | Normal convection, no fan required |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
0PS110.2: frequently asked questions
When can 0PS110.2 be shipped?
0PS110.2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0PS110.2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0PS110.2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0PS110.2, subject to availability and destination.
