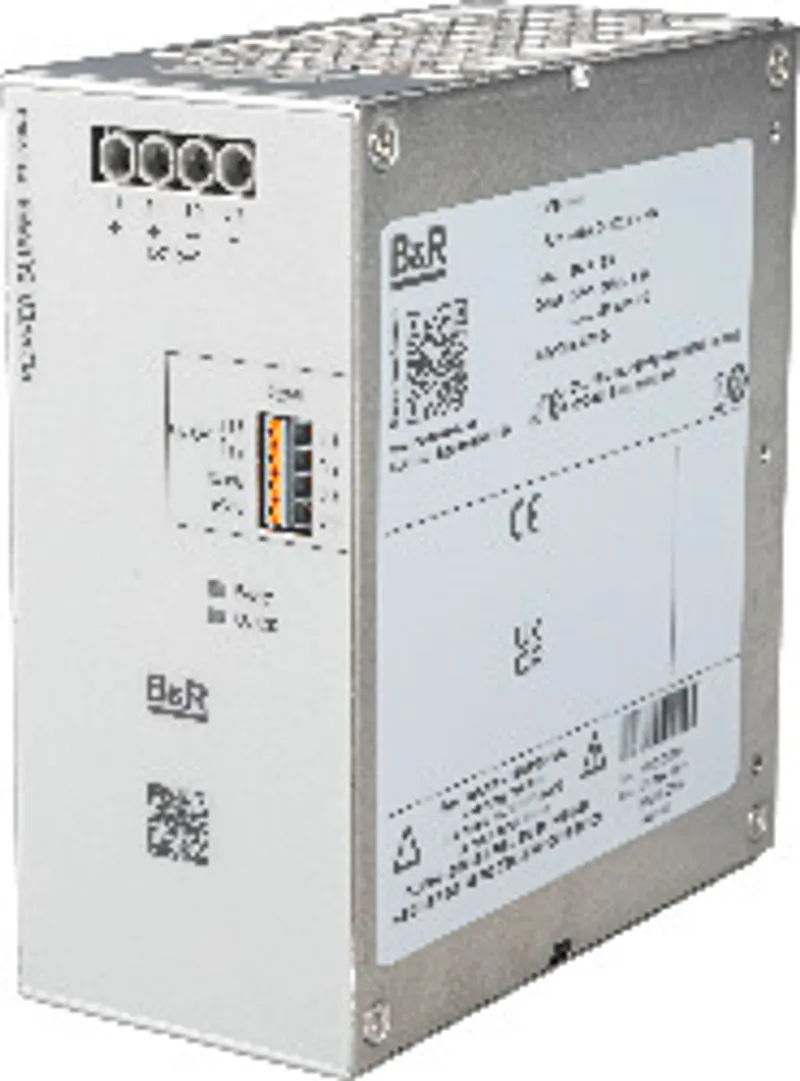

B&R 0PB0200.3

Minimum space requirement in the control cabinet due to a…

MPN: 0PB0200.3
Category: Buffer module

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 0PB0200.3?

Minimum space requirement in the control cabinet due to a thin design

Maintenance-free due to electrolytic capacitors

High system availability due to long capacitor service life

Electronic switching unit and energy storage in one housing

Maximum energy efficiency

Can be used with power supplies in the low power range due to soft startup

Temperature range: -25°C to +70°C

International certification package

24 VDC buffer module, 0 to 20 A, buffer time 0.2 s at 20 A to 2 s at 2 A, top-hat rail installation

Specifications

General information

Insulation voltages – Input - Output	500 V
Insulation voltages – Input - Ground	500 V
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E534663; Industrial control equipment
Connection type	Screw terminalCable data"."> (note: For details, see section)

Charging mode (input)

Current consumption – Maximum	26 A
Current consumption – No-load operation	0.2 A
Current consumption – Loading procedure	0.6 A
Nominal voltage	24 VDC SELV
Input voltage range	22.5 to 30 VDC
Switching threshold	<22 VDC

Buffer operation (output)

Buffer current	20 A / 25 A (I N / I Stat. Boost )
Buffer voltage	Typ. 22 VDC
Buffer time	0.2 s / 20 A, 2 s / 2 A

Output

Nominal voltage	24 VDC (note: Depends on the input voltage)
Output current	20 A / 25 A (I N / I Stat. Boost ) (note: Specification of nominal value (I N ) and maximum boost value (I Dyn.Boost ))
Can be connected in parallel	No
Can be connected in series	No

Efficiency, reliability

Power dissipation – Rated load	Max. <6 W
Efficiency	>98% (with charged energy storage)
Service life	88224 h (electrolytic capacitor)
MTBF	2,497,464 h (40°C) (note: Per SN 29500 at 40°C)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	No
Installation elevation above sea level – Maximum	5000 m
Ventilation/Cooling	Normal convection, no fan required
Degree of protection per EN 60529	IP20
Protection class	Special application (SELV input voltage, dangerous voltages are generated in the device).

Ambient conditions

Temperature – Operation	-25 to 70°C
Temperature – Derating	See section "Derating".
Temperature – Starting temperature	-40°C (note: Minimum permissible ambient temperature in a voltage-free state at the time the power supply unit is switched on. During operation, the conditions according to the operating temperature continue to apply.)
Temperature – Storage	-40 to 70°C
Temperature – Transport	-40 to 70°C
Relative humidity – Operation	Max. 95%, non-condensing
Pollution degree	2
Climate category	3K3, per EN 60721
Overvoltage category	I

Mechanical properties

Housing – Material	Metal
Dimensions – Width	56 mm
Dimensions – Height	130 mm
Dimensions – Depth	125 mm
Installation	Easy top-hat rail installation (NS 35 rails, EN 60715)
Weight	1000 g
