Bosch Rexroth R911406109

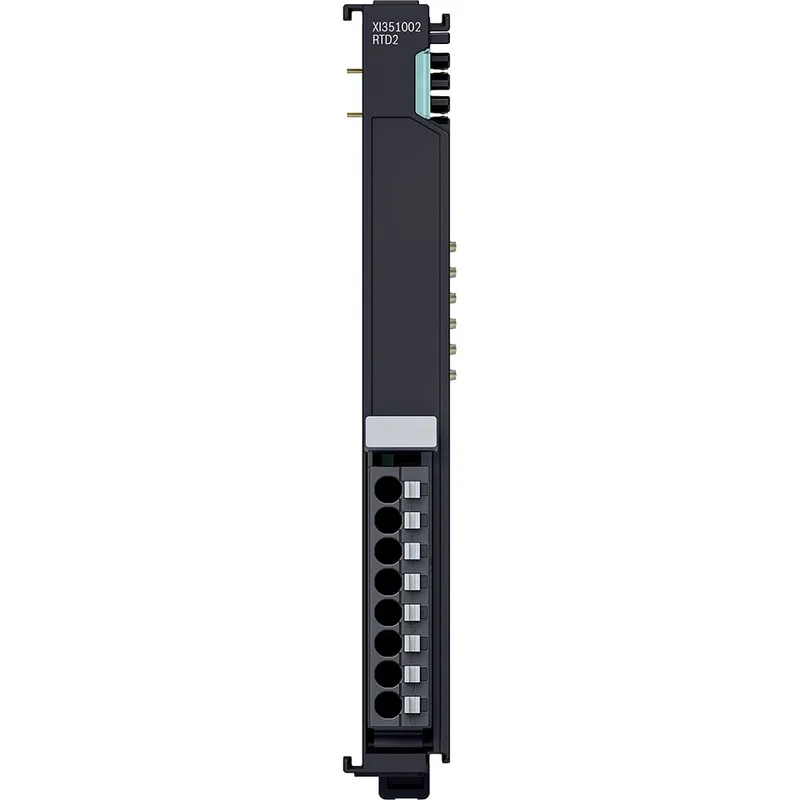

ANALOG INPUT MODULE XI351002

MPN: R911406109
Category: XI3 Analog Inputs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911406109?

The temperature measurement module XI351002 reads in temperatures from resistive temperature sensors on two independent channels. Common sensor types such as PT100, PT1000, NI120 and various others are supported. It also provides a resistance measurement in the range between 10 an 3276.7 ohms.

Error states are shown at the status LED of the module and routed to the control via the local bus.

The logic and peripheral voltage supply as well as the EtherCAT-based module communication are routed through the module.

Specifications

Connection type	Push-in
Connectivity technology	2-wire, 3-wire technique, shielded, twisted
Number of channels	2
Max. output current per channel [A]	0.5
Width [mm]	12
Height [mm]	105
Depth [mm]	99
International protection code	IP20
Protection class	III
Backplane-Bus	Standard-EtherCAT über LVDS
Resolution A/D	16 Bit
EMC resistance	EN 61000-6-2 and EN 61000-6-4
Bit width, input data in the process data image (including fill bits)	10 bytes (can be set channel-granularly)
A/D conversion time	160 ms for 1 channel; 320 ms for 2 channels
Maximum power dissipation in the module [W]	1.2
Post-assembly position	Vertical, on a horizontal support rail
Electrical isolation	1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL)
Supported sensor types	PT100, PT200, PT500, PT1000 (characteristic curve PT385 for all platinum sensors), NI100, NI120, NI500, NI1000 (characteristic curve TK6180 for all nickel sensors), NI1000 (characteristic curve TK5000), KTY81-110, KTY 81-210, KTY 84, resistance measurement
Current requirement UL	37 mA
Current requirement Up	12 mA
Net current module outputs [A]	0.001
Nominal voltage (UL/UP)	DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
Overvoltage category	2
Signal type	Single-ended with ground reference
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Overload protection	9.9 V
Permissible air humidity (storage) [%]	10-95
Permissible air humidity (transport) [%]	10-95
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +40 °C; Up to 2000 m: -25°C to +45°C
Maximum operating altitude [m]	3000
Contamination level	2, no condensation
Weight [kg]	0.12
