Bosch Rexroth R911406105

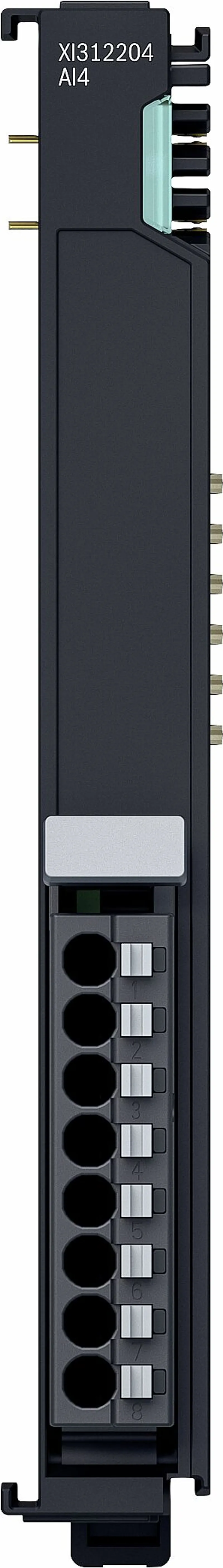

ANALOG INPUT MODULE XI312204

MPN: R911406105
Category: XI3 Analog Inputs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911406105?

The analog input module XI312204 processes signals in the range from 0 to +10 V in a ctrlX I/O station. The input signal is digitized with a resolution of 16 bits and transferred galvanically isolated to the system level. The 4 input channels are differential inputs.

Error states are shown at the channel LED on the removable peripheral connector and routed to the control via the local bus.

The logic and peripheral voltage supply as well as the EtherCAT-based module communication are routed through the module.

Specifications

Connection type	Push-in
Connectivity technology	2-wire technique, shielded, twisted in pairs
Number of channels	4
Voltage supply	UP via jumper contacts
Width [mm]	12
Height [mm]	105
Depth [mm]	99
International protection code	IP20
Protection class	III
Backplane-Bus	Standard-EtherCAT über LVDS
Resolution A/D	16 Bit
EMC resistance	EN 61000-6-2 and EN 61000-6-4
Accuracy	typ. ± 0.1 % of full scale value (FSV); Max. ± 0.3 % of FSV
Bit width, input data in the process data image (including fill bits)	18 bytes in the standard representation 12 bytes in the "compact" representation (Can be set channel-granularly)
Limit frequency of input filter [kHz]	12.8
A/D conversion time	100 µs
Maximum power dissipation in the module [W]	1.5
Channel LEDs	Dedicated LED per channel
Input resistance [kΩ]	>250
Post-assembly position	Vertical, on a horizontal support rail
Electrical isolation	1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL)
Maximum common mode vs. UpGND	Max. ±35 V compared to UPGND
Current requirement UL	40 mA
Current requirement Up	20 mA
Nominal voltage (UL/UP)	DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
Overvoltage category	2
Input signal	0-10 V
Signal type	Differential
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Overload protection	No, DC 30 V max.
Permissible air humidity (storage) [%]	10-95
Permissible air humidity (transport) [%]	10-95
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +40 °C; Up to 2000 m: -25°C to +45°C
Maximum operating altitude [m]	5000
Contamination level	2, no condensation
Weight [kg]	0.13
