Bosch Rexroth R911406108

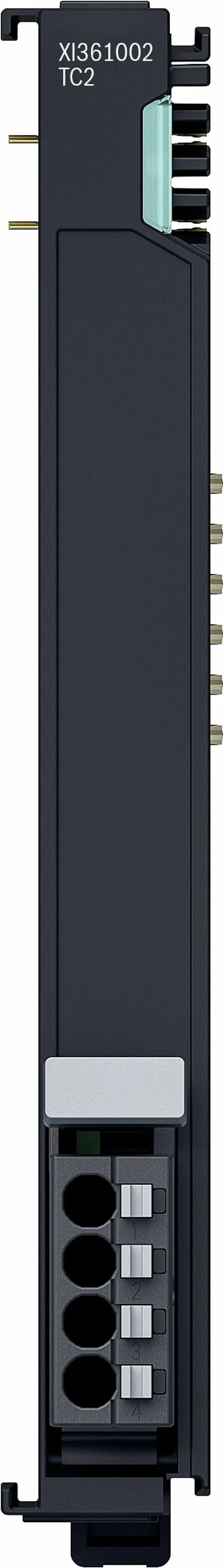

ANALOG INPUT MODULE XI361002

MPN: R911406108
Category: XI3 Analog Inputs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911406108?

The XI361002 temperature measurement module reads in temperatures from thermocouples (TC) on two independent channels. The module supports common sensor types such as K, J, T as well as various others and has an internal cold junction compensation (CJC) that can be switched off. Error states are shown at the status LED of the module and routed to the control via the local bus.

The logic and peripheral voltage supply as well as the EtherCAT-based module communication are routed through the module.

Specifications

Connection type	Push-in
Connectivity technology	2-wire technique, shielded, twisted in pairs
Number of channels	2
Width [mm]	12
Height [mm]	105
Depth [mm]	99
International protection code	IP20
Protection class	III
Backplane-Bus	Standard-EtherCAT über LVDS
Resolution A/D	16 Bit
EMC resistance	EN 61000-6-2 and EN 61000-6-4
Bit width, input data in the process data image (including fill bits)	10 bytes
A/D conversion time	240 ms for 1 channel; 480 ms for 2 channels
Maximum power dissipation in the module [W]	1.2
Post-assembly position	Vertical, on a horizontal support rail
Electrical isolation	1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL)
Supported sensor types	B, E, J, K, L, N, R, S, T, U
Current requirement UL	36 mA
Current requirement Up	12 mA
Nominal voltage (UL/UP)	DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
Overvoltage category	2
Signal type	Differential
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Overload protection	9.9 V
Permissible air humidity (storage) [%]	10-95
Permissible air humidity (transport) [%]	10-95
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +40 °C; Up to 2000 m: -25°C to +45°C
Maximum operating altitude [m]	3000
Contamination level	2, no condensation
Weight [kg]	0.12
