Bosch Rexroth R911406107

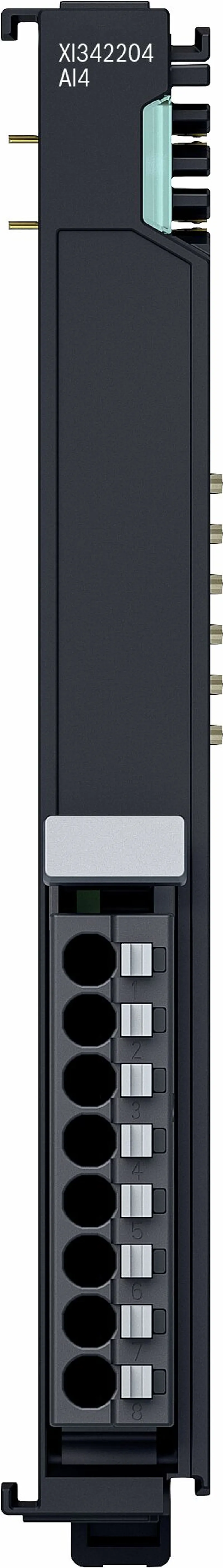

ANALOG INPUT MODULE XI342204
- MPN
- R911406107
- Category
- XI3 Analog Inputs
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R911406107?
The analog input module XI342204 processes signals in the range from 4 to 20 mA in a ctrlX I/O station. The input signal is digitized with a resolution of 16 bits and transferred galvanically isolated to the system level. The 4 input channels are differential inputs.
Error states are shown at the channel LED on the removable peripheral connector and routed to the control via the local bus.
The logic and peripheral voltage supply as well as the EtherCAT-based module communication are routed through the module.
Specifications
Specifications
| Connection type | Push-in |
| Connectivity technology | 2-wire technique, shielded, twisted in pairs |
| Number of channels | 4 |
| Voltage supply | UP via jumper contacts |
| Width [mm] | 12 |
| Height [mm] | 105 |
| Depth [mm] | 99 |
| International protection code | IP20 |
| Protection class | III |
| Backplane-Bus | Standard-EtherCAT über LVDS |
| Resolution A/D | 16 Bit |
| EMC resistance | EN 61000-6-2 and EN 61000-6-4 |
| Accuracy | typ. ± 0.1 % of full scale value (FSV); Max. ± 0.3 % of FSV |
| Bit width, input data in the process data image (including fill bits) | 18 bytes in the standard representation 12 bytes in the "compact" representation (Can be set channel-granularly) |
| Limit frequency of input filter [kHz] | 15.7 |
| A/D conversion time | 100 µs |
| Maximum power dissipation in the module [W] | 1.8 |
| Channel LEDs | Dedicated LED per channel |
| Input resistance [kΩ] | <0.25 |
| Post-assembly position | Vertical, on a horizontal support rail |
| Electrical isolation | 1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL) |
| Maximum common mode vs. UpGND | Max. ±35 V compared to UPGND |
| Current requirement UL | 40 mA |
| Current requirement Up | 21 mA |
| Nominal voltage (UL/UP) | DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage) |
| Overvoltage category | 2 |
| Input signal | 4-20 mA |
| Signal type | Differential |
| Conductor cross-section | AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm² |
| Overload protection | No, max. DC 10.5 V, Imax = 46 mA |
| Permissible air humidity (storage) [%] | 10-95 |
| Permissible air humidity (transport) [%] | 10-95 |
| Ambient temperature (storage and transport) [°C] | -40-70 |
| Ambient temperature during operation | 2,000 m to 3,000 m: -25 °C to +40 °C; Up to 2000 m: -25°C to +45°C |
| Maximum operating altitude [m] | 5000 |
| Contamination level | 2, no condensation |
| Weight [kg] | 0.13 |
