Bosch Rexroth R911344215

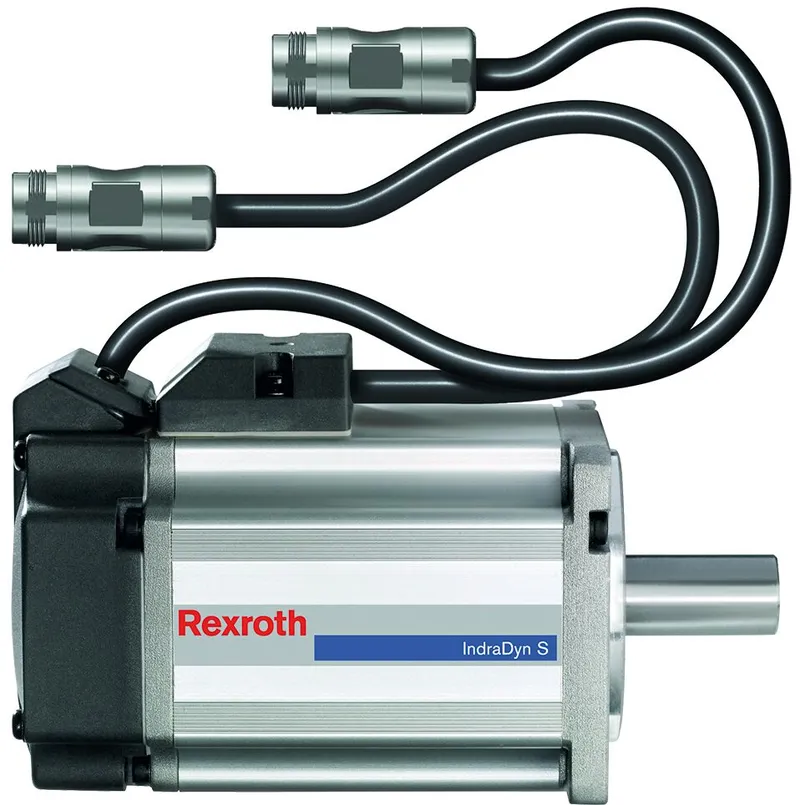

SERVOMOTOR MSM031C-0300-NN-M5-MH0

MPN: R911344215
Category: Motors for Small Modules SMS

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911344215?

The product range of Rexroth´s servo motors combines high dynamics with compact dimensions and best energy efficiency. Rotors with low and medium inertia are available with optimum mass customization. For intelligent solutions in the Industry 4.0 environment, the motors serve as data sources. Special explosion-proof versions according to ATEX complete the extensive portfolio.

Highly dynamic

High power density

Multi-turn absolute encoder

Ultra-compact synchronous servo motors MSM up to 7.1 Nm for connection to IndraDrive Cs

Smooth shaft without shaft seal

Multi-turn absolute encoder M5 (20 Bit, absolute encoder functionality only possible with buffer battery)

Cooling: natural convection

Protection type IP54 (shaft IP40)

With or without holding brake

Metal round connector M17

Specifications

Maximum torque [Nm]	3.8
Maximum speed [rpm]	5000.0
Flange size [mm]	60
Cooling type	Self-cooling
Motor type	without holding brake
Rotor inertia (without brake) value [kg/m²]	0.0000278
Encoder design	Optical encoder, multiturn absolute (20 bit)
electrical connection	Cable connection, circular connector M17
Standstill torque (int. cooling) 60k [Nm]	1.3
Weight [kg]	1.49
